Show me your cool tank stand!

Be102

Valuable Member
View Badges
Joined
Nov 29, 2016
Messages
1,884
Reaction score
1,059
Rating - 0%
0   0   0
I used a dovetail jig for the drawers.
Sounds confusing.. looked up a few videos and can't really seem to figure out how it works, or how it would cut the cut outs. Do you think I would have success with a jig saw? Also do you happen to have the bracket type?


Steve McGlamery

Community Member
View Badges
Joined
Feb 14, 2016
Messages
87
Reaction score
135
Location
Queen Creek, Az.
Rating - 0%
0   0   0
Sounds confusing.. looked up a few videos and can't really seem to figure out how it works, or how it would cut the cut outs. Do you think I would have success with a jig saw? Also do you happen to have the bracket type?
I'm confused.....I used a table saw, radial arm saw, router with a router table and a dovetail jig for the drawer sides. You can't see the dovetails on the drawers in the picture. You could use a box joint and it would be easier but, not as strong.


Mpierce

Active Member
View Badges
Joined
Nov 9, 2016
Messages
284
Reaction score
193
Location
Wisconsin
Rating - 0%
0   0   0

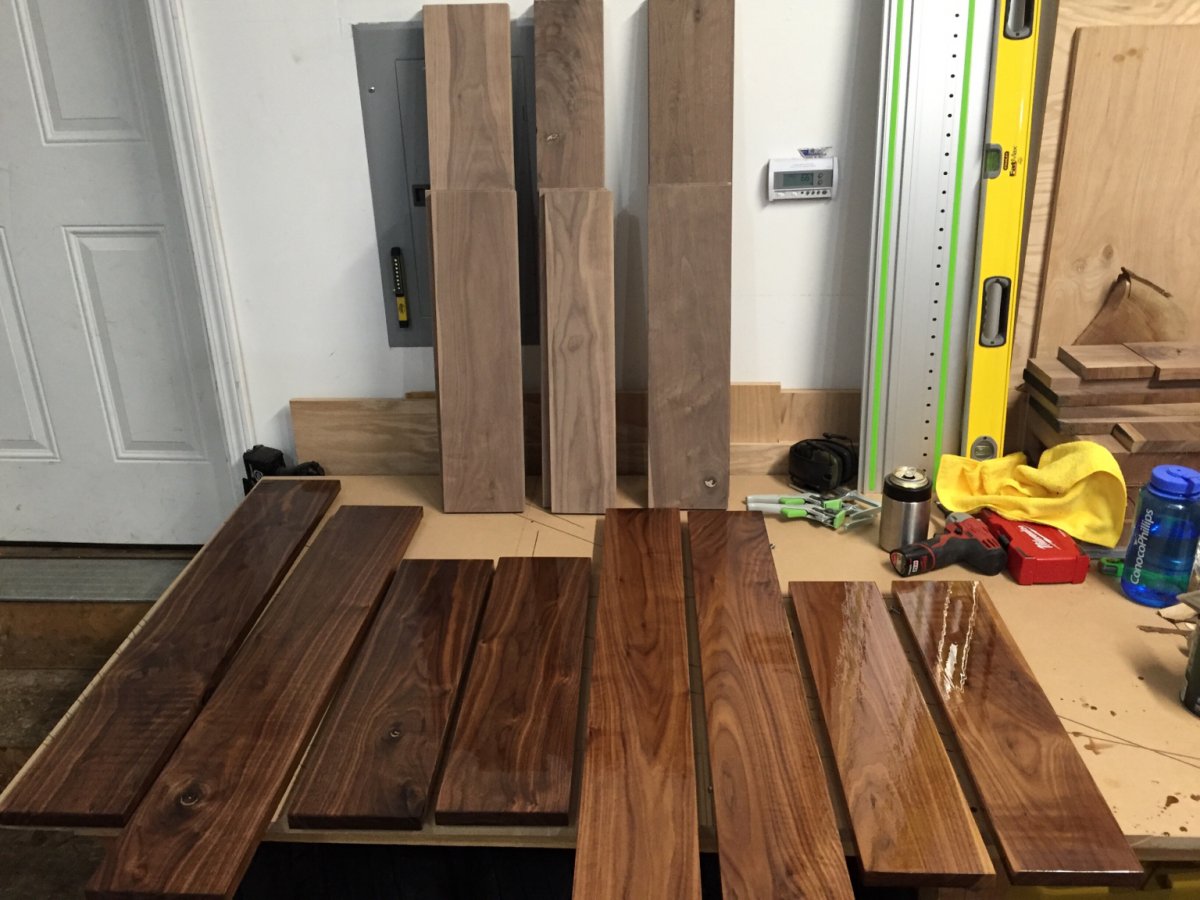

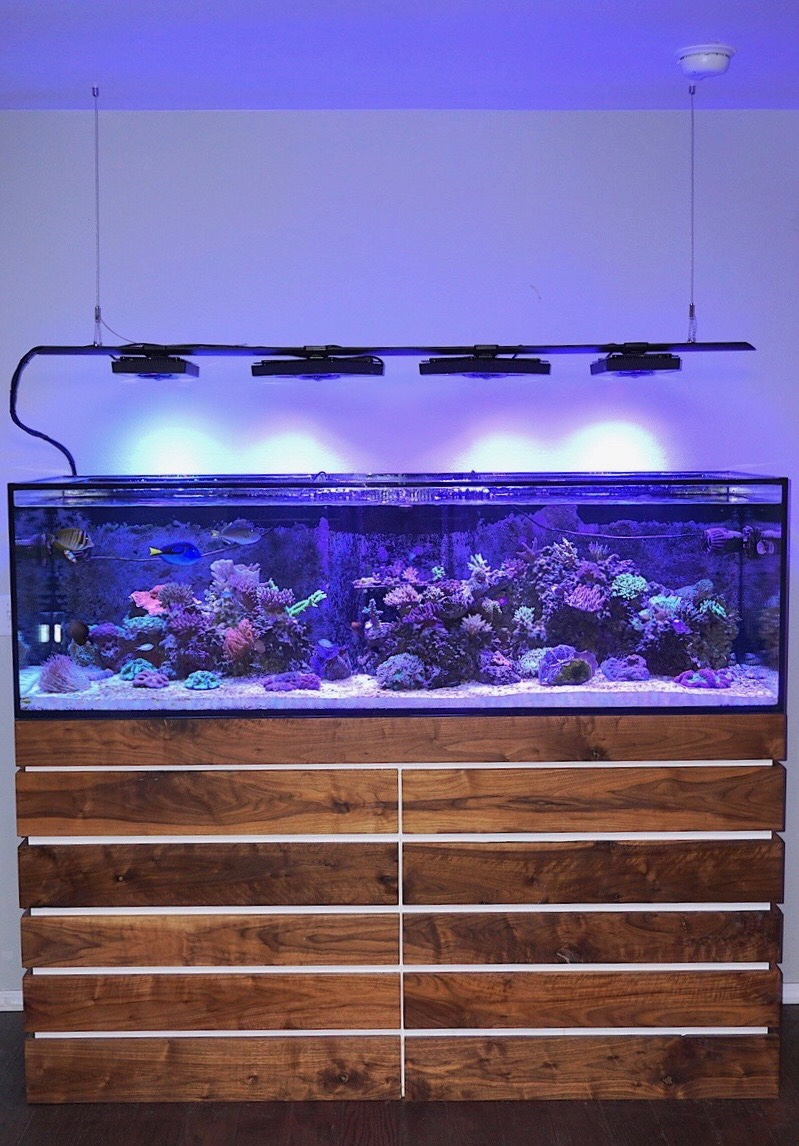

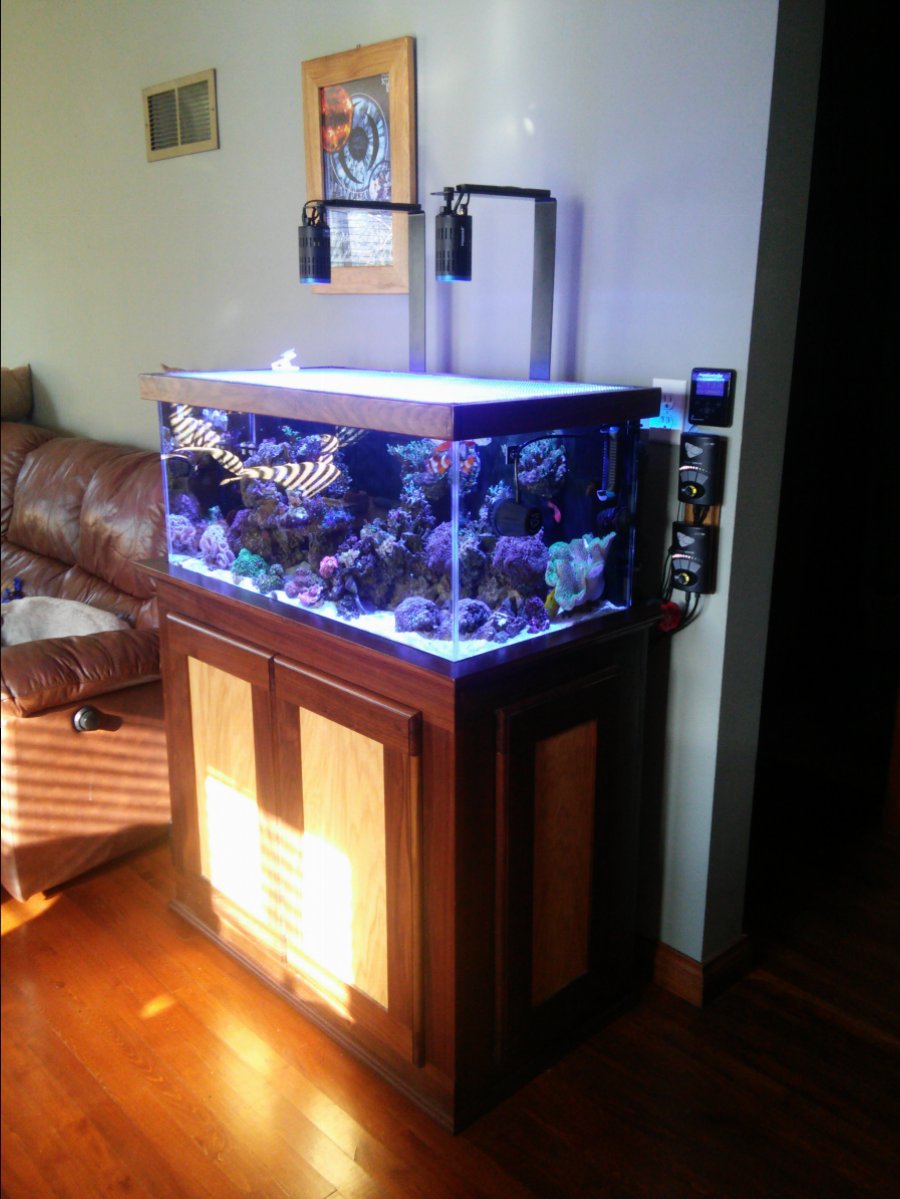

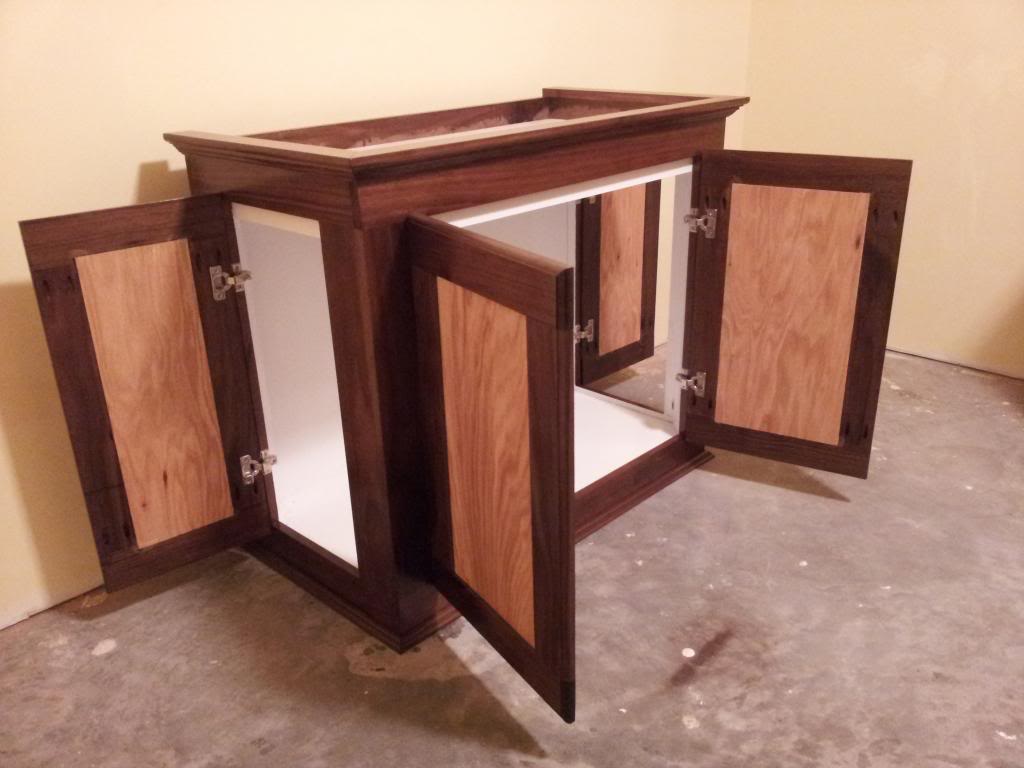

Black walnut with oak inserts. Can't see in the picture, but there are a couple outlets installed in the upper corners.





Tom Lipare

New Member
View Badges
Joined
Nov 27, 2016
Messages
10
Reaction score
16
Location
Springfield, Oregon
Rating - 0%
0   0   0

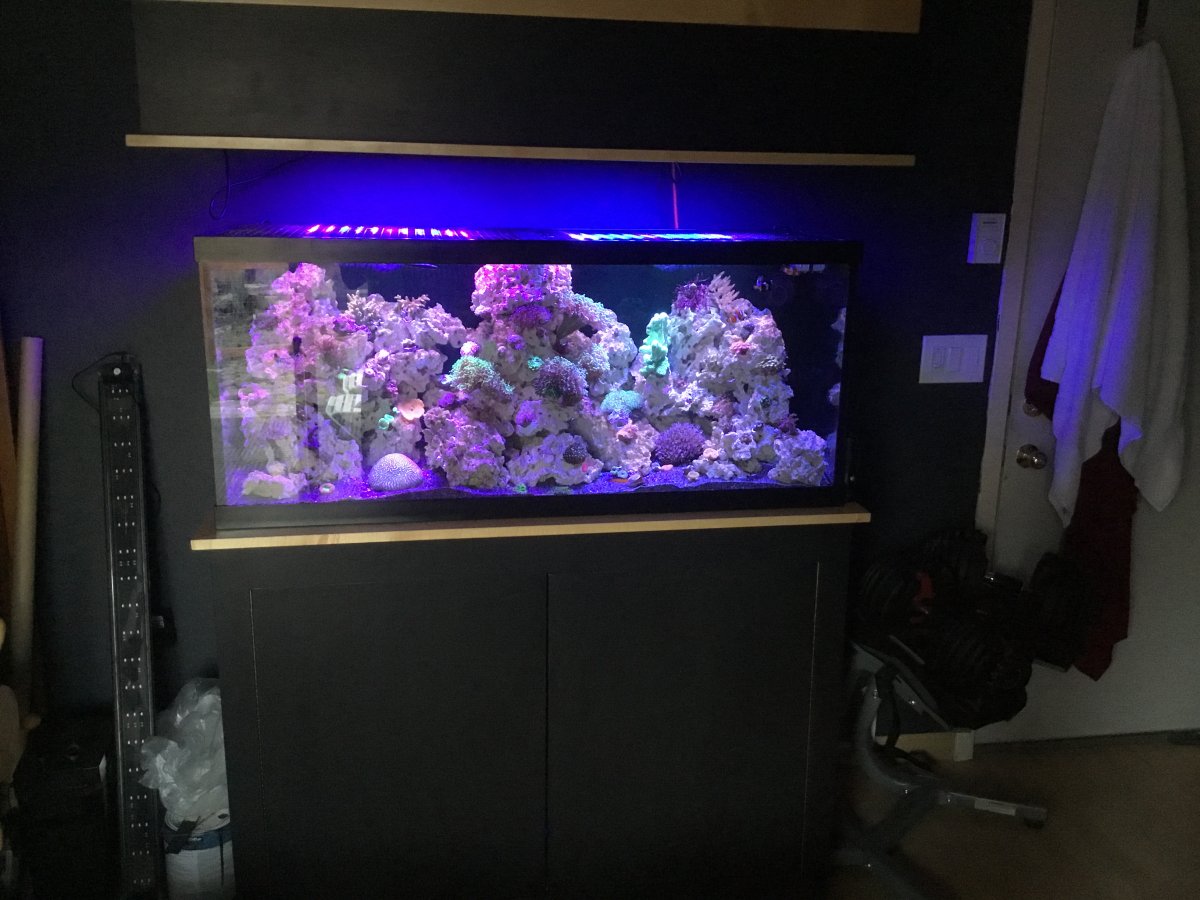

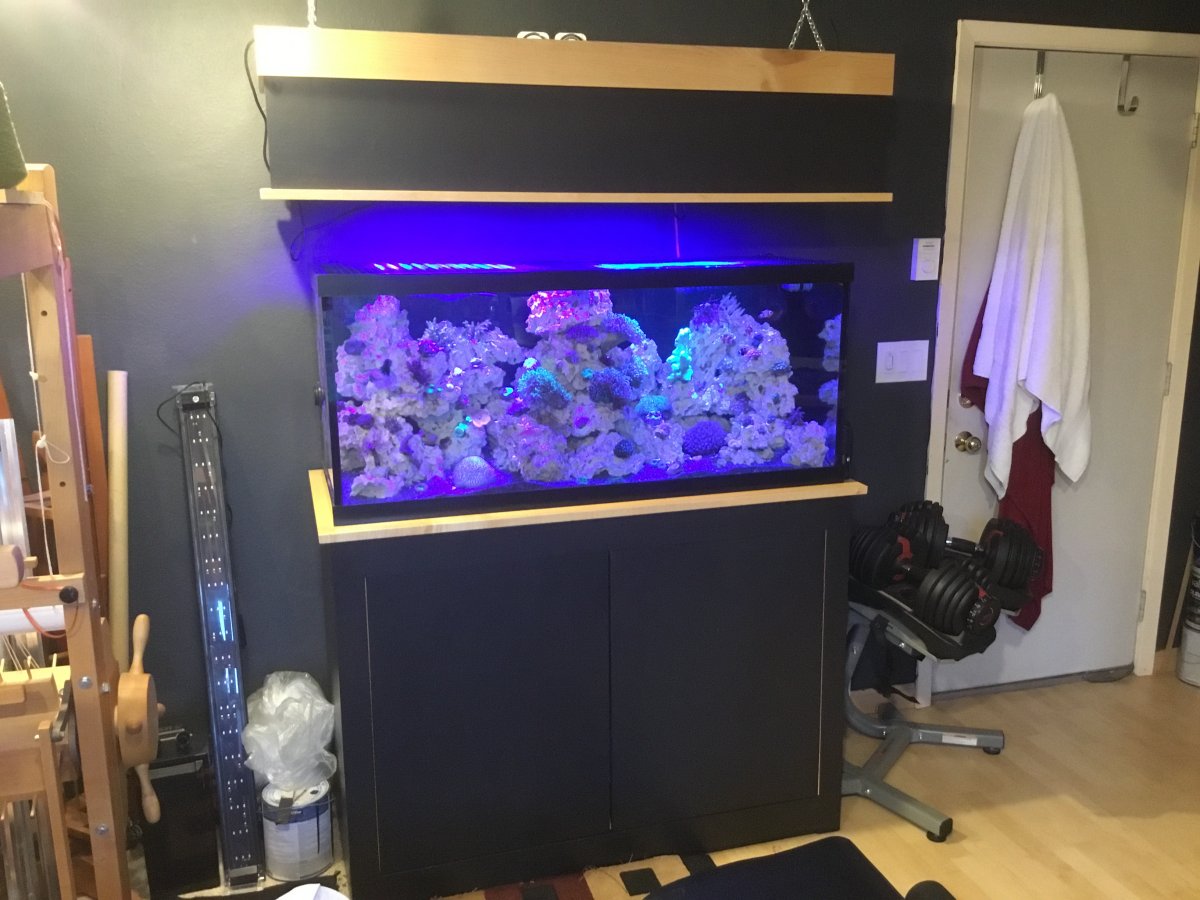

IMG_0094.JPG IMG_0093.JPG IMG_0093.JPG .this is my very simple and sleek 75g reef tank stand and canopy. Works out nice. Done is black so that the maple trim no the color for the corals no fish stand out.


BigAsh

Active Member
View Badges
Joined
Feb 28, 2016
Messages
114
Reaction score
88
Location
Alpine, CA (San Diego area)
Rating - 0%
0   0   0

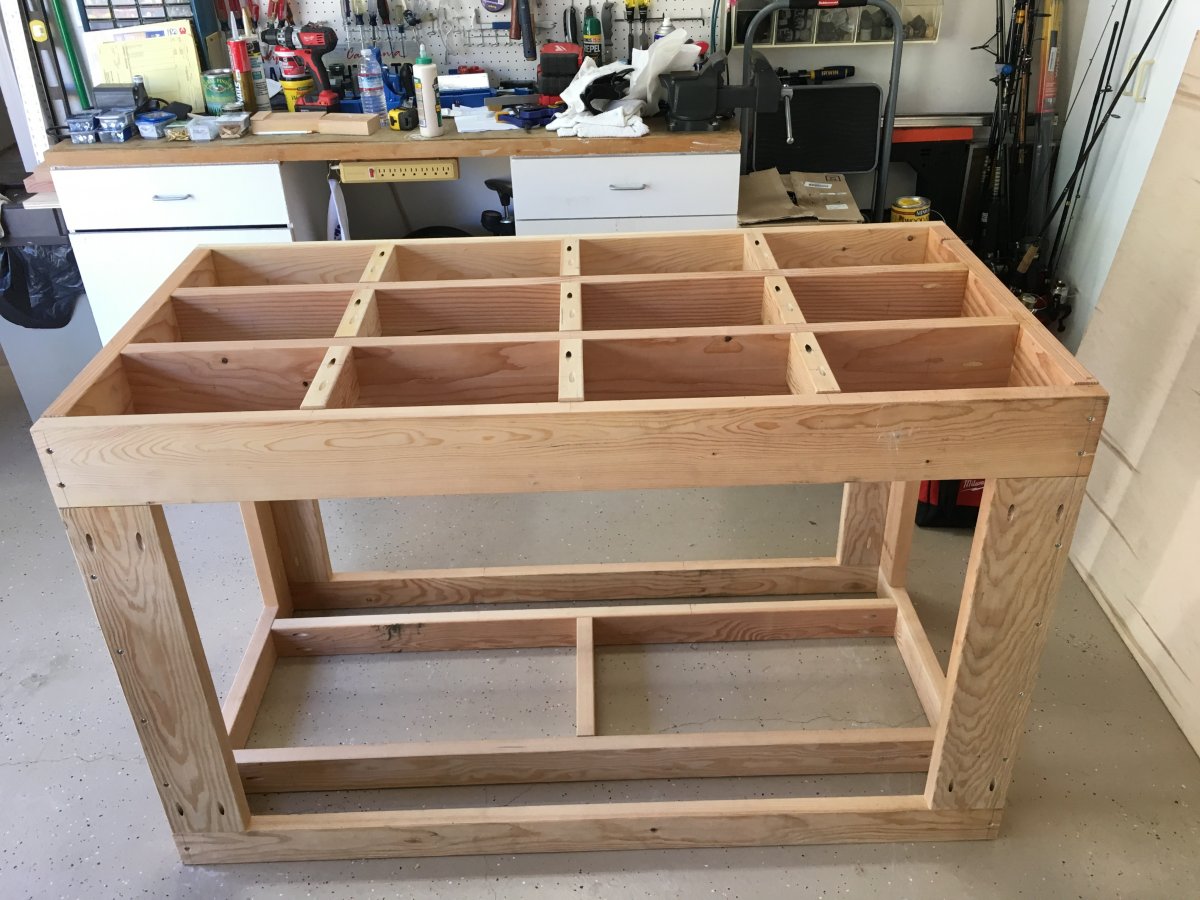

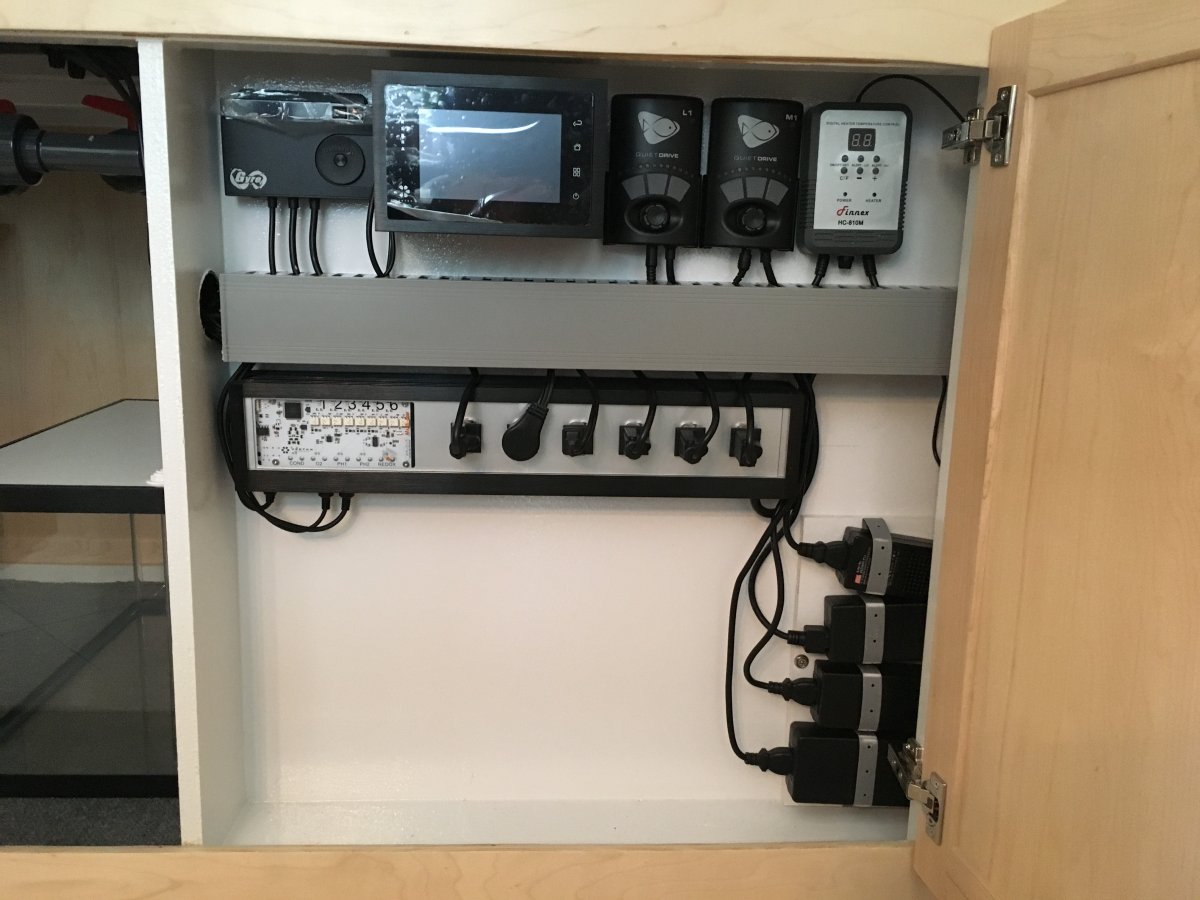

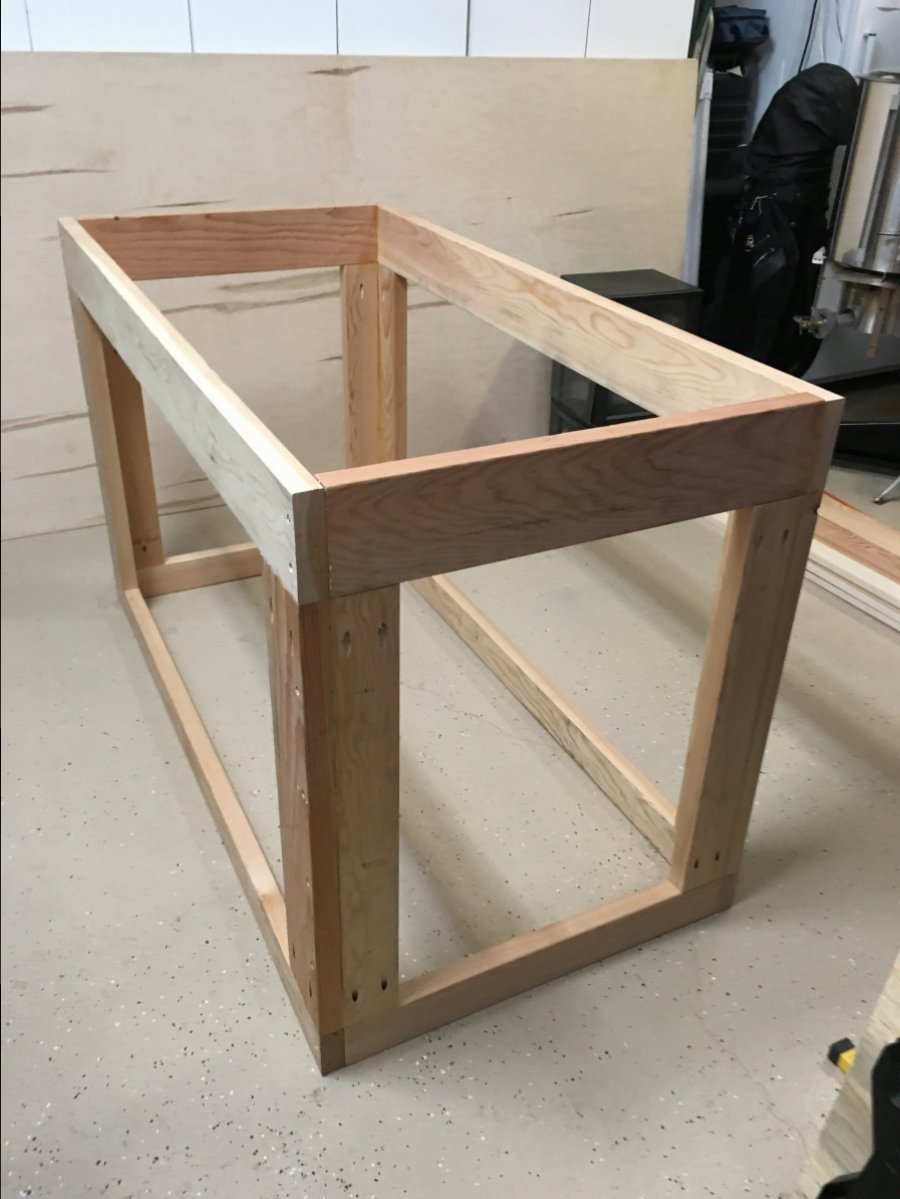

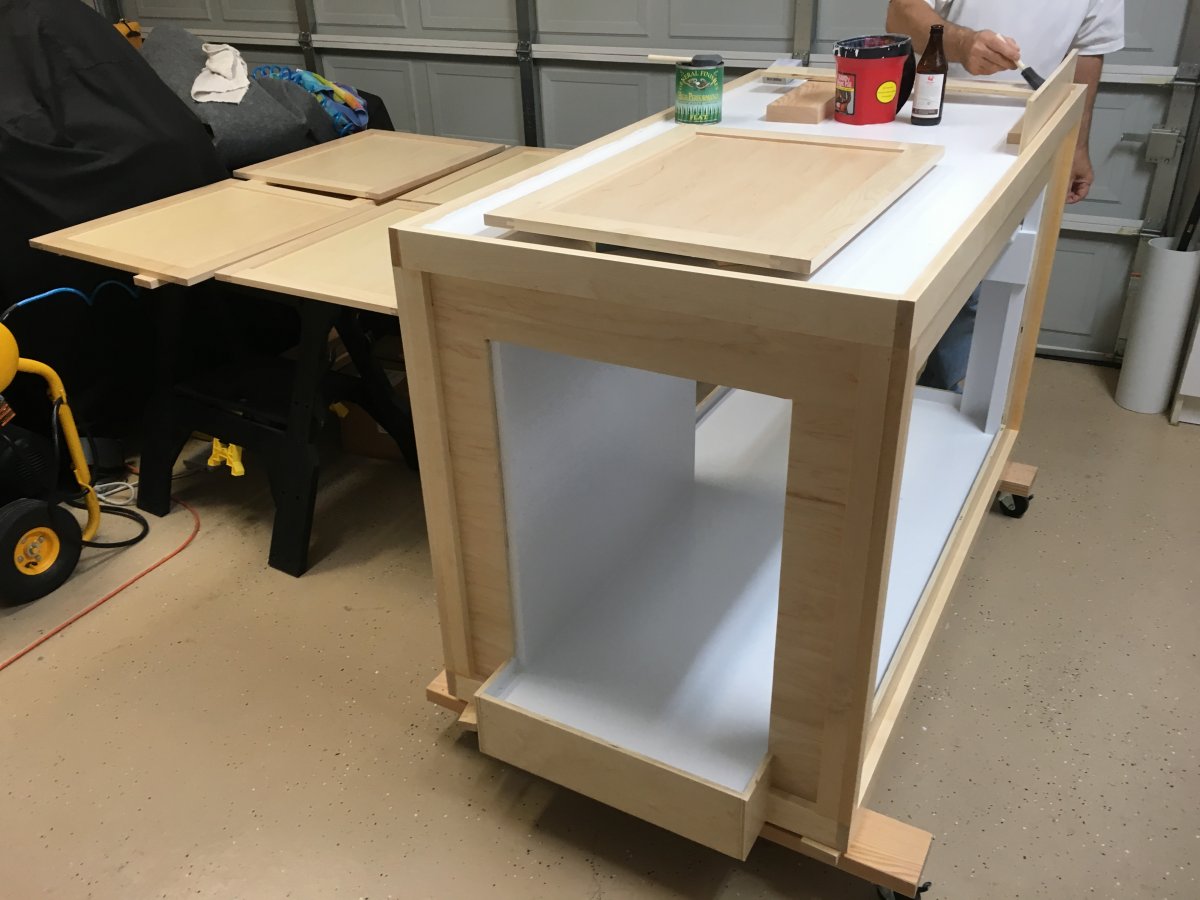

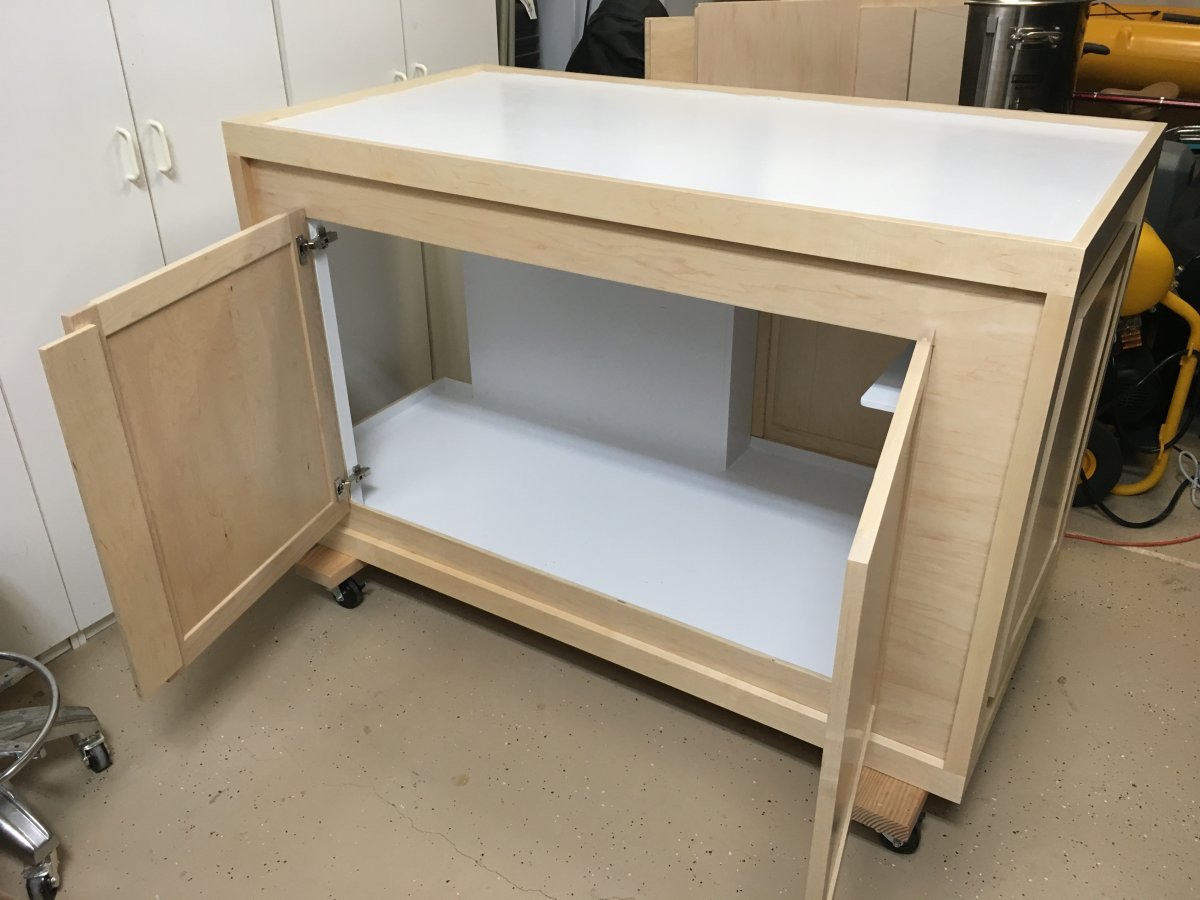

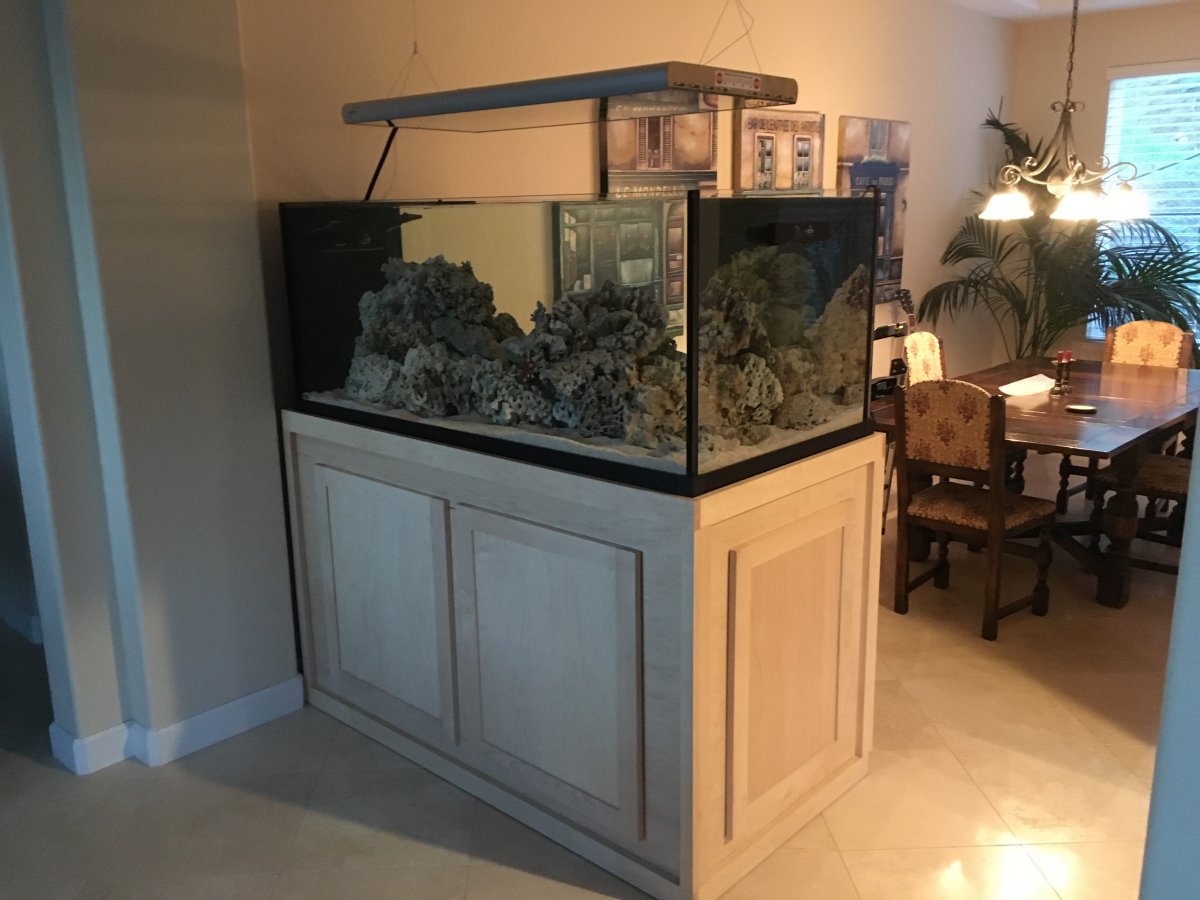

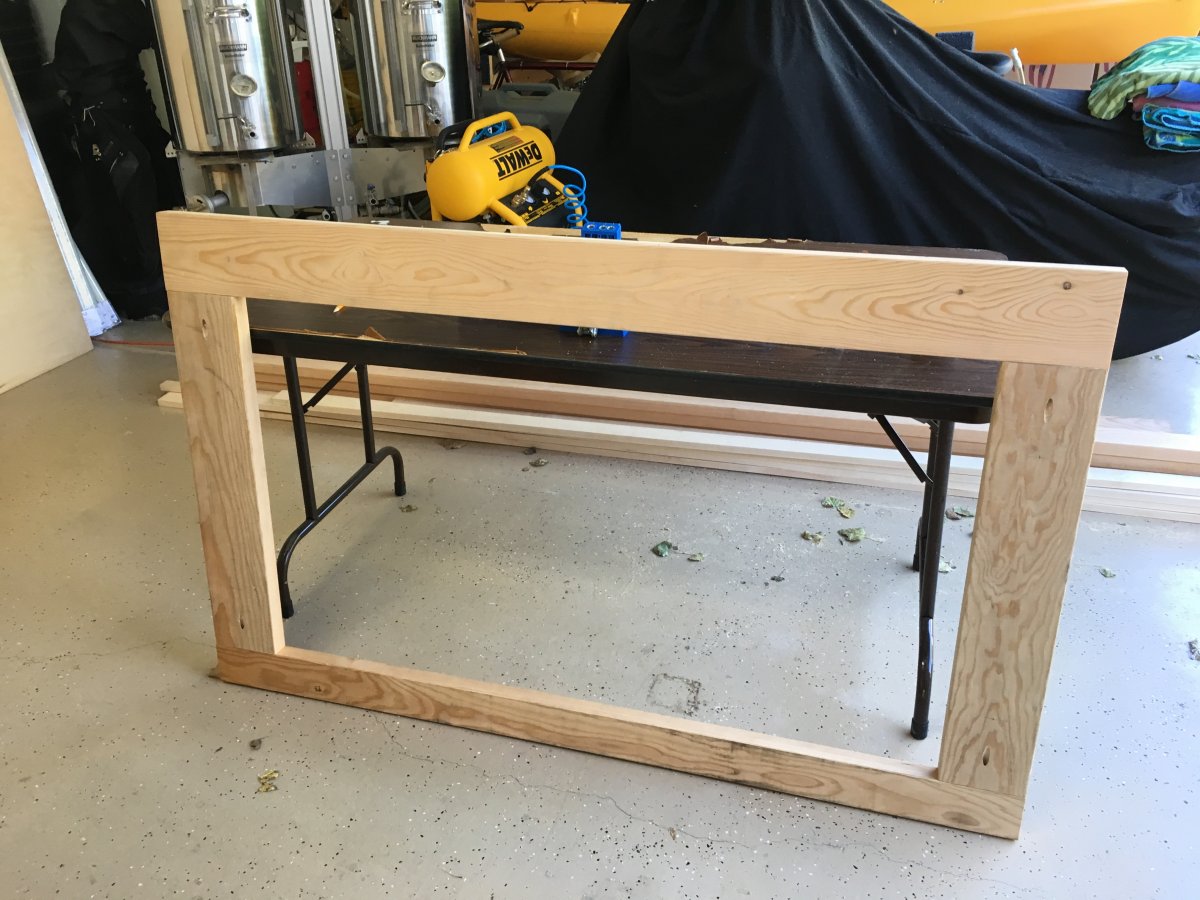

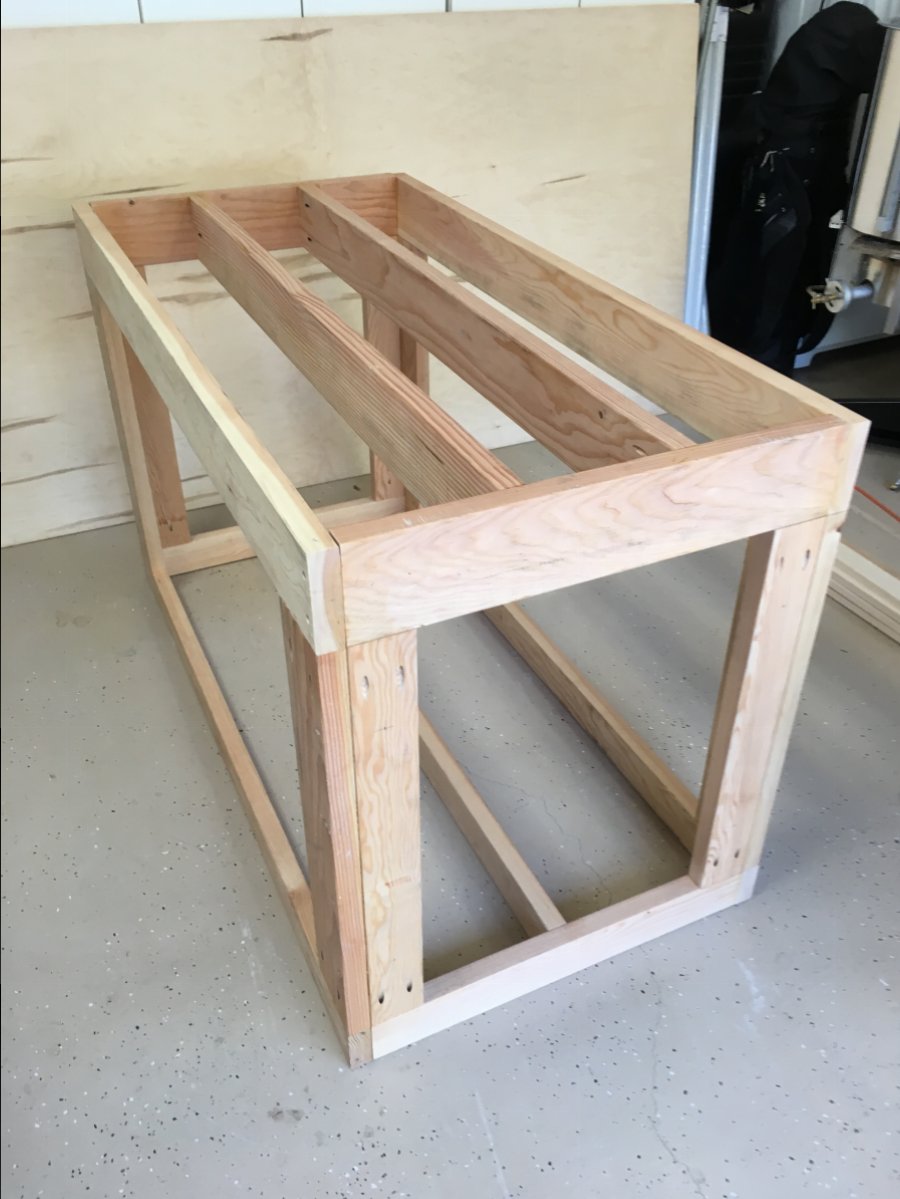

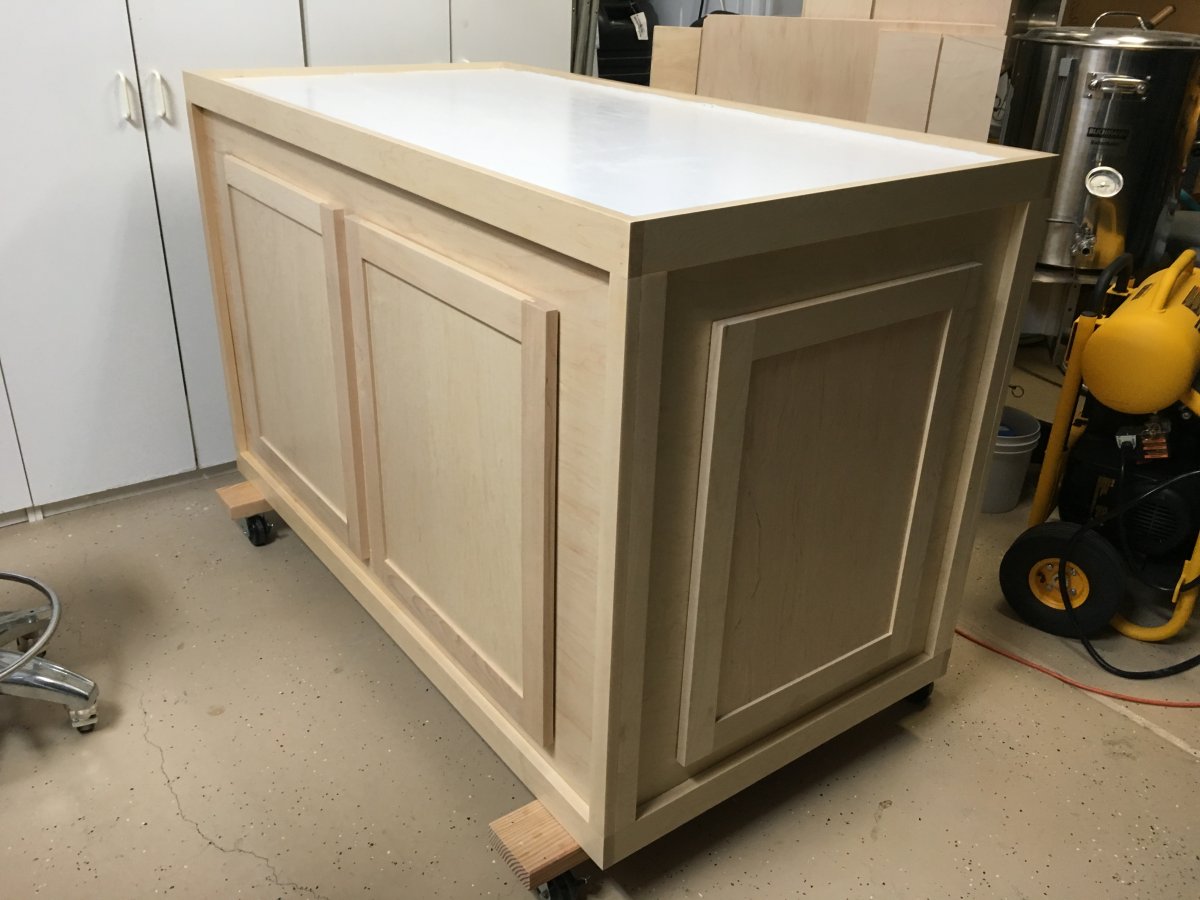

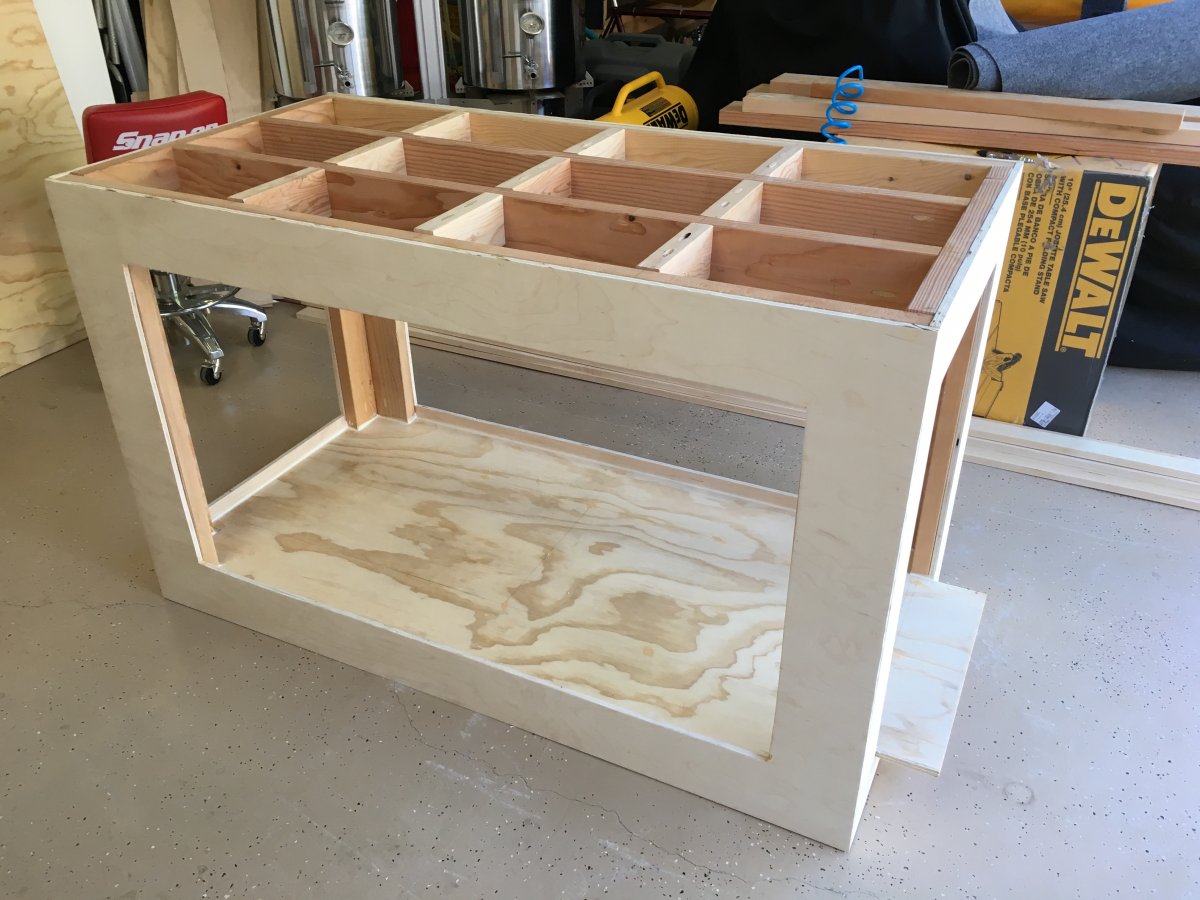

Here's the stand for my 60" x 30" x 24"H peninsula tank. Four 2x6 stringers for main support with no center leg. 2x6 and 2x4 legs. Controller alcove behind one side door. Dosing stuff behind the door on one end. Skinned in 1/2" maple plywood and trimmed with solid maple. Maple doors ordered online. Three coats natural finish. 1/4" table top epoxy on top to make it flatter.


ATTACH=full]462708[/ATTACH]


Be102

Valuable Member
View Badges
Joined
Nov 29, 2016
Messages
1,884
Reaction score
1,059
Rating - 0%
0   0   0
What did you stain it with? Very nice.

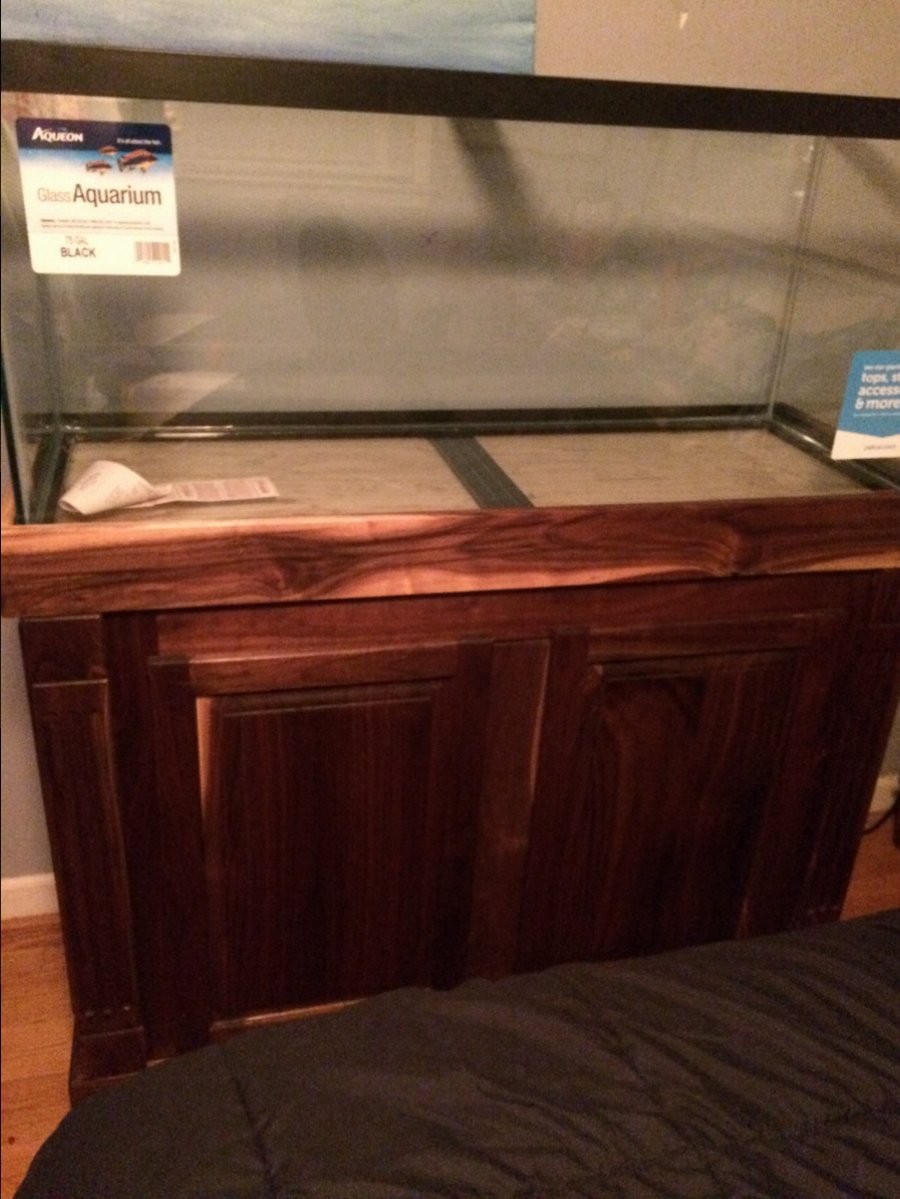

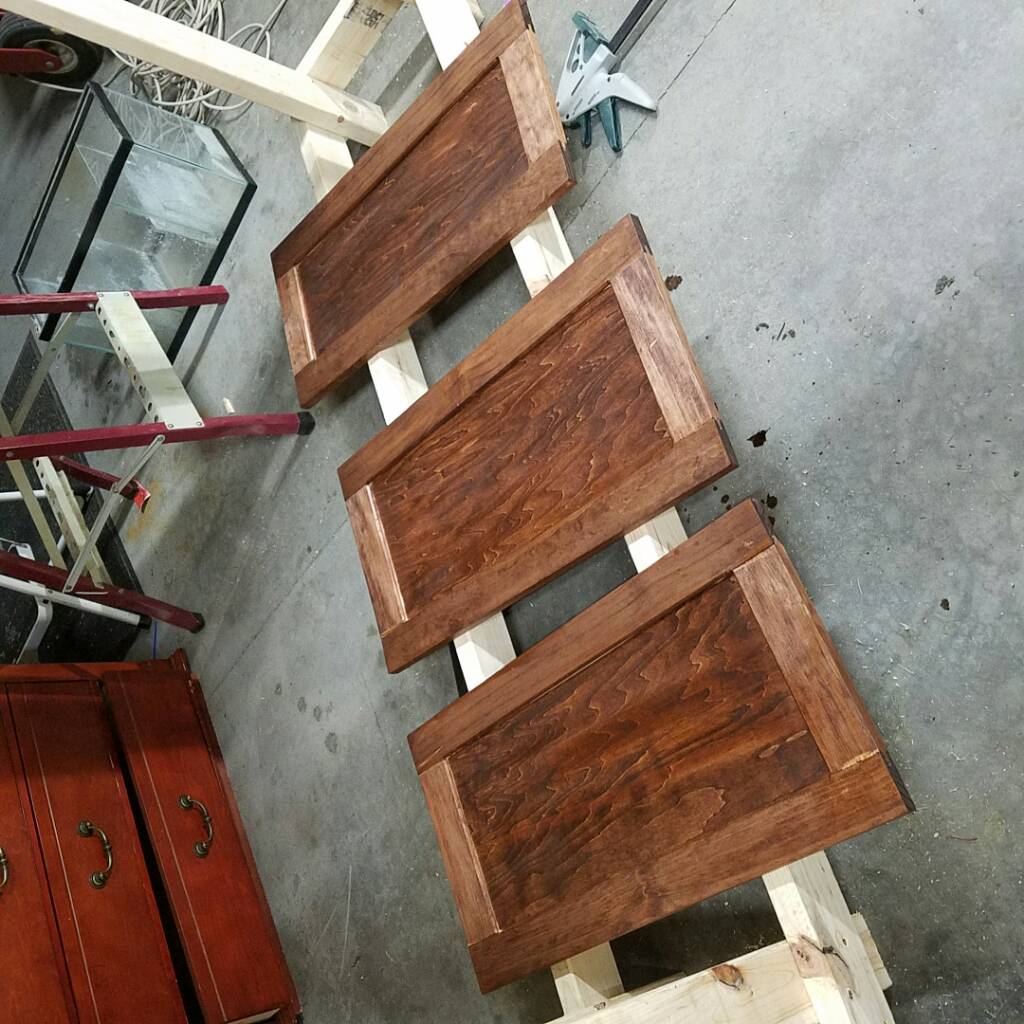

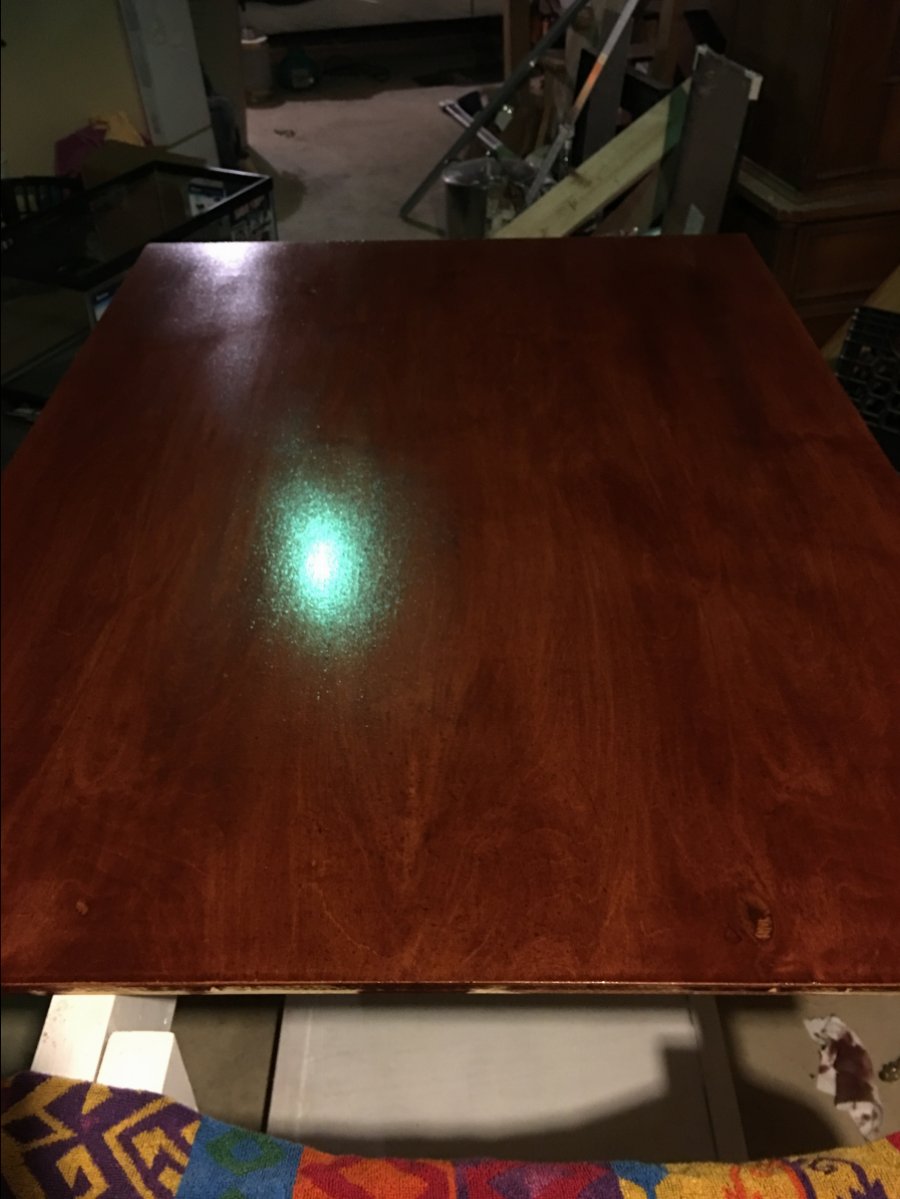

I stained it with Minwax Wood stainer, after treating the wood with the pre-conditioner. I was hesitant after reading mixed reviews regarding staining birch.. but It worked out well I think. I'll take another picture tomorrow. Its not as dark because the stain gets wiped off after it soaks into the wood.


merfish101

Active Member
View Badges
Joined
Dec 22, 2012
Messages
160
Reaction score
36
Location
Jacksonville, fl
Rating - 0%
0   0   0
I stained it with Minwax Wood stainer, after treating the wood with the pre-conditioner. I was hesitant after reading mixed reviews regarding staining birch.. but It worked out well I think. I'll take another picture tomorrow. Its not as dark because the stain gets wiped off after it soaks into the wood.
Ok, thanks.


merfish101

Active Member
View Badges
Joined
Dec 22, 2012
Messages
160
Reaction score
36
Location
Jacksonville, fl
Rating - 0%
0   0   0
Here's the stand for my 60" x 30" x 24"H peninsula tank. Four 2x6 stringers for main support with no center leg. 2x6 and 2x4 legs. Controller alcove behind one side door. Dosing stuff behind the door on one end. Skinned in 1/2" maple plywood and trimmed with solid maple. Maple doors ordered online. Three coats natural finish. 1/4" table top epoxy on top to make it flatter.


ATTACH=full]462708[/ATTACH]
Very nice build. Did you square up the rounded edges of the 2x materials before hand or just leave them be?


30cubereef

Community Member
View Badges
Joined
Dec 18, 2016
Messages
34
Reaction score
32
Rating - 0%
0   0   0


This is my 30 gallon cube with 10 gallon sump. Aluminum skeleton with a pine skin all custom built by myself.


BigAsh

Active Member
View Badges
Joined
Feb 28, 2016
Messages
114
Reaction score
88
Location
Alpine, CA (San Diego area)
Rating - 0%
0   0   0
Very nice build. Did you square up the rounded edges of the 2x materials before hand or just leave them be?

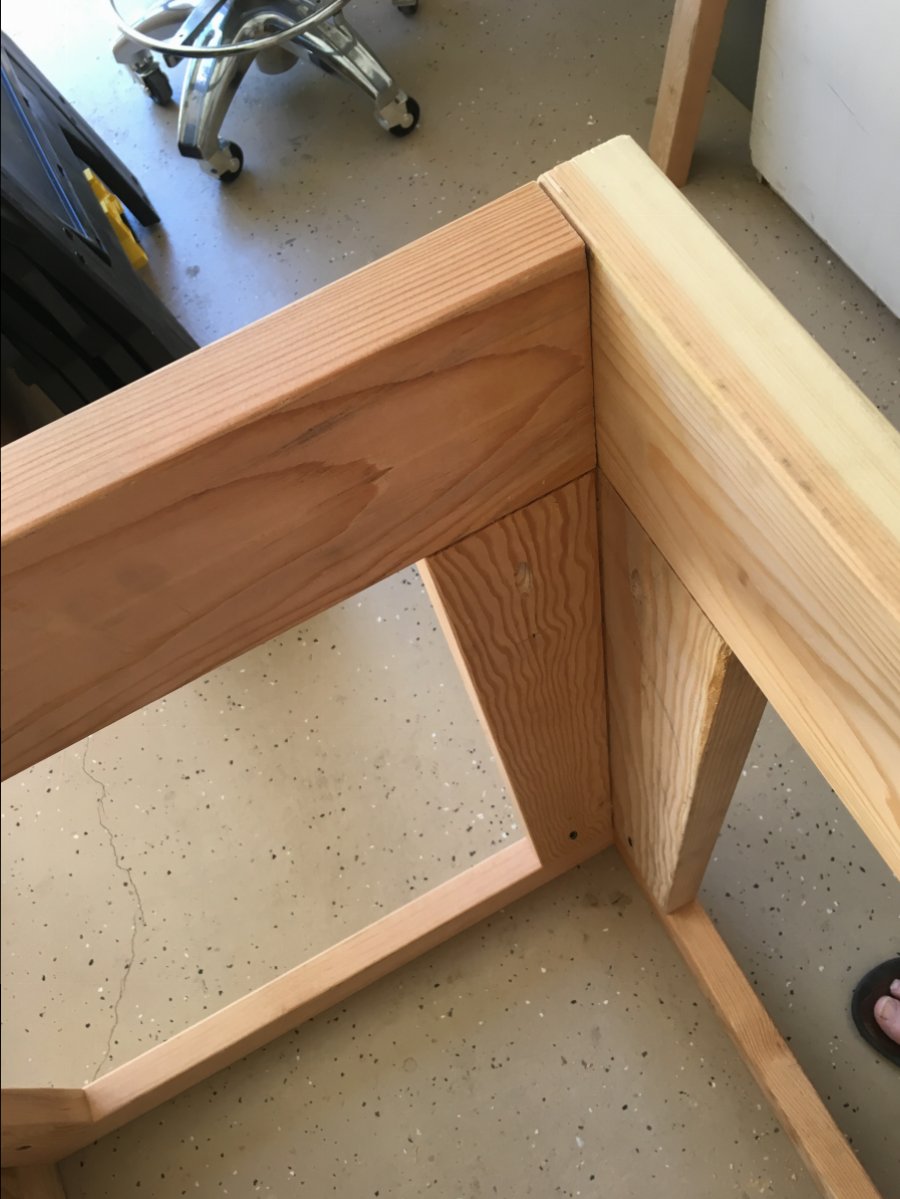

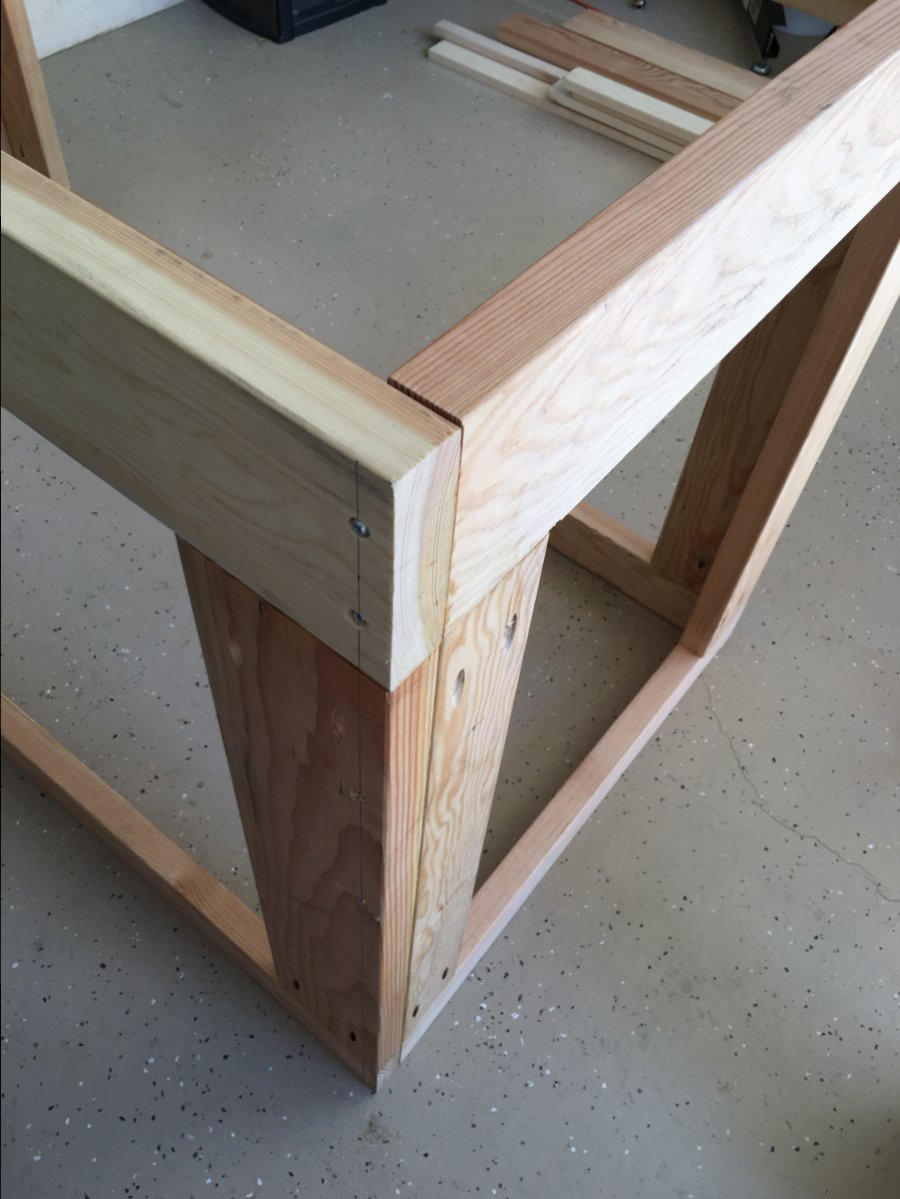

Thanks for asking. I left the rounded edges alone but should have run the horizontal 2x material through my table saw to make sure they were all the same width. I used kiln-dried lumber and the 2x6's were different widths (not all exactly 5-1/2"). Since all the legs were exactly the same height, the top of the stringers were at slightly different heights due to the variation of 2x6 width. That had a domino effect on the top of the stand and led me to apply the table-top epoxy (which is great stuff BTW).
