Sump for 180

mgoesma

Well-Known Member
View Badges
Joined
Jul 21, 2016
Messages
577
Reaction score
229
Location
Orlando
Rating - 0%
0   0   0
I have been thinking of upgrading my aquarium to a 180. Does anyone have any recommendations for sump size. If anyone also has a DIY design that would be great too.


Shaun Sweeney

Active Member
View Badges
Joined
Aug 5, 2016
Messages
477
Reaction score
281
Location
Lantzville, BC, Canada
Rating - 0%
0   0   0
Bigger is better. 100 gallon sump would be nice with the 180 tank. In any case, for a sump to work properly (as a sump only) it has to be able to contain all the drain back water when you shut your pumps off. Only the DT and sump should be subject to water level changes with pumps off. Remember, you need a few inches above the pump intake in the sump to avoid sucking air. Ideally, the sump incorporates a bubble trap and the best of those requires 3 bulkheads. Water returning to the sump should pass over the first BH, under the next, and over the last one - closest to pump intake. The area above the pump intake is an ideal place to have you final layer of filtration. I use Marine Pure and lava rock. If you don't have a refugium proper, the first compartment of the sump can be a good place to keep a batch of live rock. With a big enough sump, you could also have some socks there but for a 180 gallon, you need at least 3 socks in play all the time with a few clean ones as backup. Skimmer should be in a separate container where the water level can be kept constant whether the main pump is on or off. There's bit to chew on. Hope it helps.


Chrisboling

Active Member
View Badges
Joined
Aug 8, 2015
Messages
159
Reaction score
16
Rating - 0%
0   0   0
I have a 100 gal sump

Last edited by a moderator:

Chrisboling

Active Member
View Badges
Joined
Aug 8, 2015
Messages
159
Reaction score
16
Rating - 0%
0   0   0
Where the holes are is the drain section and from there to the skimmer section and then the fug and then return


Daniel@R2R

Living the Reef Life
View Badges
Joined
Nov 18, 2012
Messages
37,364
Reaction score
63,255
Location
Fontana, California
Rating - 100%
1   0   0
I really like Geo's sumps. Check out the SU46RD.



justingraham

5000 Club Member
View Badges
Joined
Jul 13, 2016
Messages
5,348
Reaction score
6,709
Rating - 0%
0   0   0
Is the sump going to go under the tank or in a different room?


Daniel Strickland

Active Member
View Badges
Joined
Nov 24, 2016
Messages
134
Reaction score
121
Location
Liberal Kansas
Rating - 0%
0   0   0
Biggest mistake I made (so far) in the setup of my new 180 is the size of the sump. I went cheapo and got a 22g trigger systems. Now I don't have a problem with the design I really like it. It allowed me to eliminate the socks (I use a roller filter) and place things neatly where I could access them. But it's to small..... I can't put as much biomedia in the sump as I would like. My skimmer barely fits. And I have to be super careful with my water levels or when I shut the pump down the drain back will overflow my sump. Now all this being said it works. It got me going at a price I could afford. But it will get upgraded someday.


tvu

Active Member
View Badges
Joined
Oct 3, 2015
Messages
388
Reaction score
236
Rating - 0%
0   0   0
I have a trigger 40g on my 180. Leaves enough room in my stand and enough for back flow when the return pump is off. I think I purchased the sapphire 39(it's blue acrylic).

OP
OP
mgoesma

mgoesma

Well-Known Member
View Badges
Joined
Jul 21, 2016
Messages
577
Reaction score
229
Location
Orlando
Rating - 0%
0   0   0
It will be under the tank. I am thinking a 40g breeder. I have a 29long now with my 90g display. I plan to reuse most of my equipment. I made sure to get a bug enough skimmer and return.


OP
OP
mgoesma

mgoesma

Well-Known Member
View Badges
Joined
Jul 21, 2016
Messages
577
Reaction score
229
Location
Orlando
Rating - 0%
0   0   0
I have a trigger 40g on my 180. Leaves enough room in my stand and enough for back flow when the return pump is off. I think I purchased the sapphire 39(it's blue acrylic).

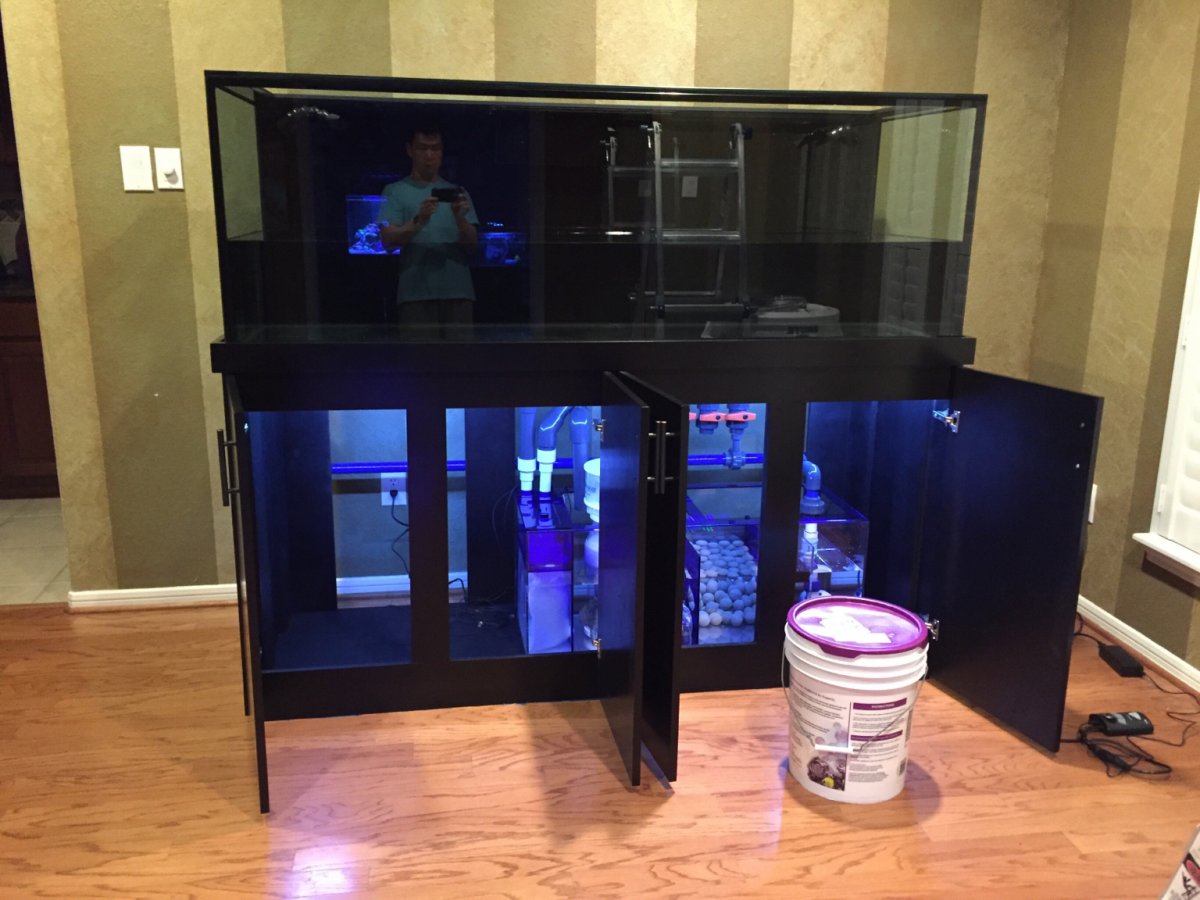

Can you please post a photo. This is what I'm thinking also.


cracker

5000 Club Member
View Badges
Joined
Dec 11, 2014
Messages
7,164
Reaction score
16,237
Location
north east Fl
Rating - 0%
0   0   0
I have a 75 gl sump under a new 180 . Not plenty but decent room.

OP
OP
mgoesma

mgoesma

Well-Known Member
View Badges
Joined
Jul 21, 2016
Messages
577
Reaction score
229
Location
Orlando
Rating - 0%
0   0   0
Thank you everyone for the input. Can we switch the conversation over to lighting. I really like my current t5/led strip lights but led are not available in 72 inch. Does anyone have suggestions.​


justingraham

5000 Club Member
View Badges
Joined
Jul 13, 2016
Messages
5,348
Reaction score
6,709
Rating - 0%
0   0   0
Reefbrite's I believe come in 72 inches or u could split it up into two 36 inch fixtures or three twenty inch fixtures
