Looking at the Eshopps Eclipse Internal Overflow for a nano build, anyone have any experience with this overflow?
Eshopps Overflow Review?
- Thread starter CodyRVA
- Start date
-
- Tags
- overflow box overlfow
- Tagged users None
Crabs McJones
I'm so shi-nay
Excellence Award
Reef Tank 365
Article Contributor
Moderator Emeritus
Hospitality Award
Reef Tank 365 Boss
Wisco Reefers
My Tank Thread
I have one on my drilled 40 breeder, I haven't used it yet unfortunately, but installation was pretty quick and painless. From other videos I've seen it's very quiet and works very well.
I have the small on a 30 gallon. It's very quiet when set up properly and the quality is good. The template is a solid piece of acrylic and a holesaw is included. You definitely need to get a valve for the main drain to get the water level right in the overflow box. preferably a gate valve. I used a ball valve, but it's just harder to dial in the flow.
OP
OP
Thanks all. Does it give you any guidance as to how far from the top of the glass to drill, i'm assuming the template provides this? I have a Reef Savvy ghost on my 80G, one of the drains with a gate valve, likely plumb this the same way.
Crabs McJones
I'm so shi-nay
Excellence Award
Reef Tank 365
Article Contributor
Moderator Emeritus
Hospitality Award
Reef Tank 365 Boss
Wisco Reefers
My Tank Thread

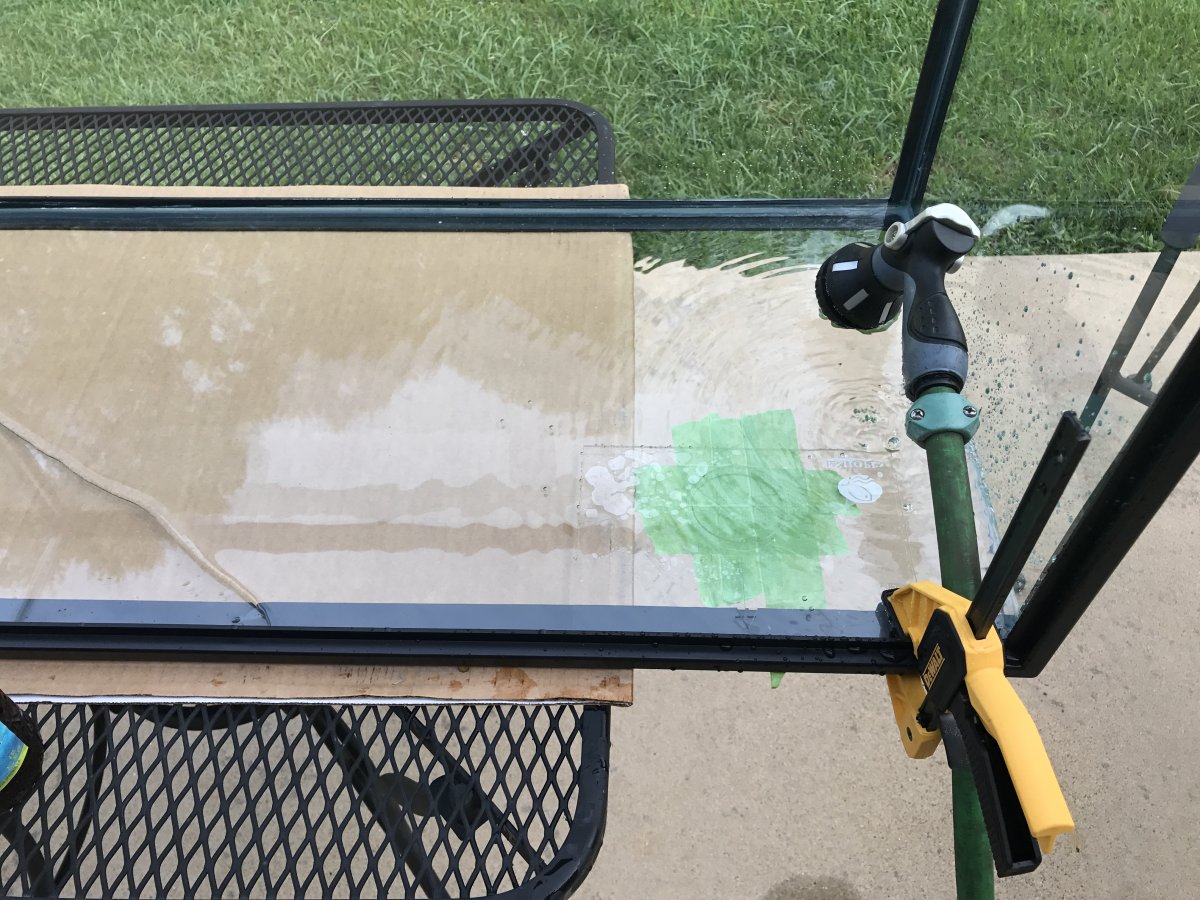

Use the template as a water line guide, on rimmed tanks your best bet is to drill from the inside out and put the template on the inside, otherwise you wont mount it hight enough
OP
OP
Gotcha, thanks; it's a rimless tank.
Coastie Reefer
Valuable Member
This +1 !!! I even tried to slide it under the rim a little on the inside of my 40B. My waterline is just about 1/4 inch above the bottom of the rim.
Big G
captain dunsel
The Eshopps Eclipse seems as if it is made for "rimless" tanks based on the template layout. I used the large size on my rimmed 90. It was a bit tricky to get it mounted high enough so the waterline wasn't too deep. I like it but the back (outside) wall of the overflow has bowed outward in the middle. The cover still fits ok but it seems like the plastic might be a bit too thin for it to bow.
Do you have a build thread where I can see some pics of your overflow and plumbing setup? I will be using the same overflow on a 30g.
Big G
captain dunsel
Very helpful indeed! thank you.Here's a pic from before I filled the tank. Hope this helps!
Link to your build thread?Here's a pic from before I filled the tank. Hope this helps!
Also where'd you purchase all that schedule 80 pvc and fittings?
Big G
captain dunsel
https://www.reef2reef.com/threads/new-mixed-reef-tank-in-the-woods.317105/
I bought all of the valves from BRS: Cepex shut off, and Spears gate valves, are the best quality and rebuildable. I also bought quite a bit of the elbows, adapters, etc. from them as well. Bought the pipe and some of the elbows, etc. from a local irrigation supply. They were the only place I could find the schedule 80 pipe and fittings. Here's a tip. Buy "clear" pvc primer from Amazon. Very hard to find locally. Most pvc primers are purple and ugly looking. Hope this helps your build. Cheers!
I bought all of the valves from BRS: Cepex shut off, and Spears gate valves, are the best quality and rebuildable. I also bought quite a bit of the elbows, adapters, etc. from them as well. Bought the pipe and some of the elbows, etc. from a local irrigation supply. They were the only place I could find the schedule 80 pipe and fittings. Here's a tip. Buy "clear" pvc primer from Amazon. Very hard to find locally. Most pvc primers are purple and ugly looking. Hope this helps your build. Cheers!
Crabs McJones
I'm so shi-nay
Excellence Award
Reef Tank 365
Article Contributor
Moderator Emeritus
Hospitality Award
Reef Tank 365 Boss
Wisco Reefers
My Tank Thread
Now I'm a bit nervous, I didn't mount mine that close to the lip of the rim....However I have a valve on the drain so I should be able to adjust as needed.This +1 !!! I even tried to slide it under the rim a little on the inside of my 40B. My waterline is just about 1/4 inch above the bottom of the rim.
OP
OP
FWIW I did buy this over flow and it arrived yesterday, will update my build thread after install. First impressions are good. Looks like a solid product, well built and straight forward enough. The small version, which is the one I bought, is rated for up to 75G, so it should be more than enough for this 20G build i'm working on.
Coastie Reefer
Valuable Member
Worst case scenario, if it runs below the rim you can simply run a piece of black tape (like electrical tape), apply window tint, or just tape off a nice straight line and paint it black to match the rim. Might make it look like a big rim around the tank, but to me that looks better than seeing the waterline on a rimmed tank.
This was what I was planning if I missed the mark on drilling the hole, but right now I think I'm good. We'll see when I get the tank plumbed in its permanent place... hopefully this weekend.
Big G
captain dunsel
Mine runs about 1/2" below the black rim. No worries.
bubblemytip
Active Member
The Eshopps Eclipse seems as if it is made for "rimless" tanks based on the template layout. I used the large size on my rimmed 90. It was a bit tricky to get it mounted high enough so the waterline wasn't too deep. I like it but the back (outside) wall of the overflow has bowed outward in the middle. The cover still fits ok but it seems like the plastic might be a bit too thin for it to bow.
Hi. Is your Eshopps still working well? Is the bowing cause for concern? I have an Eclipse L and have just noticed the bowing on mine. It has only been set up for about a month. Many thanks.
bubblemytip
Active Member
Good to know. Thanks.
