Please Help With CO2 Regulator Plumbing

[naterealbig]

Hello, I am trying to connect the following items. Can you please tell me which fittings I need?

1. 1/8" MPT to metering valve w/ compression connections

2. Metering valve w/compression connection to 1/4" push connect fitting

3. Source for push connect fitting



[KStatefan]

@Water Dog might be able to help you



[Water Dog]

So you’re trying to connect the 1/8”metering valve to the elbow, right? What size is the elbow and are you trying to connect the metering valve to the male or female end of the elbow?

Did your 1/8” metering valve come with the compression nuts for both ends and their and ferrules?



[oreo54]

Hello, I am trying to connect the following items. Can you please tell me which fittings I need?

1. 1/8" MPT to metering valve w/ compression connections

2. Metering valve w/compression connection to 1/4" push connect fitting

3. Source for push connect fitting

You are probably going to need the valve id number.
It gets pretty messy.

2 ferrules and a nut, tube goes into metering valve..

Swagelok Type Tube Fittings 1/4" Od X 1/8" Npt 316 Ss Compression Fittings Straight Connector Standpipe With Bspt Male Adaptor - Buy Male Tube Adapter Npt Thread To Ansi/asme 1.20.1-2013. Connection Stand Pipe Hydraulic Adapters Compression Fittings,

Swagelok Type Tube Fittings 1/4" Od X 1/8" Npt 316 Ss Compression Fittings Straight Connector Standpipe With Bspt Male Adaptor - Buy Male Tube Adapter Npt Thread To Ansi/asme 1.20.1-2013. Connection Stand Pipe Hydraulic Adapters Compression Fittings,Tube Fitting Male Tube Adapter 1/4 In. Tube Od...

www.alibaba.com

System Error | Swagelok

www.swagelok.com

NEED more info to get the correct part .. mostly specs of the metering valve inc company though most are "sort of" universal there are some gotchas involved.



[naterealbig]

So you’re trying to connect the 1/8”metering valve to the elbow, right?

Yes.

And also add a 1/4" push connect fitting to the outlet of the metering valve.

What size is the elbow and are you trying to connect the metering valve to the male or female end of the elbow?

1/8" elbow - i want to connect to male side of elbow.

Did your 1/8” metering valve come with the compression nuts for both ends and their and ferrules?

Yes but I lost some of the ferrules. Jeez they're tiny.

Thank you for your help.



[Water Dog]

Okay, gimme a second to source the parts on eBay...



[naterealbig]

You are probably going to need the valve id number.
It gets pretty messy.

2 ferrules and a nut, tube goes into metering valve..

Swagelok Type Tube Fittings 1/4" Od X 1/8" Npt 316 Ss Compression Fittings Straight Connector Standpipe With Bspt Male Adaptor - Buy Male Tube Adapter Npt Thread To Ansi/asme 1.20.1-2013. Connection Stand Pipe Hydraulic Adapters Compression Fittings,

Swagelok Type Tube Fittings 1/4" Od X 1/8" Npt 316 Ss Compression Fittings Straight Connector Standpipe With Bspt Male Adaptor - Buy Male Tube Adapter Npt Thread To Ansi/asme 1.20.1-2013. Connection Stand Pipe Hydraulic Adapters Compression Fittings,Tube Fitting Male Tube Adapter 1/4 In. Tube Od...

www.alibaba.com

System Error | Swagelok

www.swagelok.com

NEED more info to get the correct part .. mostly specs of the metering valve inc company though most are "sort of" universal there are some gotchas involved.

Yes definitely gets messy quick! Literally thousands of fittings on the Swagelok site, and I don't know my gas fittings terminology....



[oreo54]

AFAICT need the tube size..Could be metric.. could be us.
Isn't there a large number engraved on the other side of the metering valve?



[oreo54]

you can get male or female ends.. males are easier to find.



[Water Dog]

To attach the male end of the 1/8” elbow, you’ll need these parts...

Swagelok SS-200-7-2BT 1/8 tube Bore Thru x 1/8 Female NPT several availiable for sale online | eBay

Find many great new & used options and get the best deals for Swagelok SS-200-7-2BT 1/8 tube Bore Thru x 1/8 Female NPT several availiable at the best online prices at eBay! Free shipping for many products!

www.ebay.com

Swagelok® 1/8" OD Port Connector x 1/8" OD Tube Adapter 316 Stainless Steel .125 | eBay

Find many great new & used options and get the best deals for Swagelok® 1/8" OD Port Connector x 1/8" OD Tube Adapter 316 Stainless Steel .125 at the best online prices at eBay! Free shipping for many products!

www.ebay.com



[naterealbig]

AFAICT need the tube size..Could be metric.. could be us.
Isn't there a large number engraved on the other side of the metering valve?

I purchased the valve as "1/8 in" (came with compression fittings on the ends. Can we assume this is the "tube size"?

No part #....



[naterealbig]

To attach the male end of the 1/8” elbow, you’ll need these parts...

Swagelok SS-200-7-2BT 1/8 tube Bore Thru x 1/8 Female NPT several availiable for sale online | eBay

Find many great new & used options and get the best deals for Swagelok SS-200-7-2BT 1/8 tube Bore Thru x 1/8 Female NPT several availiable at the best online prices at eBay! Free shipping for many products!

www.ebay.com

Swagelok SS-200-7-2BT 1/8 tube Bore Thru x 1/8 Female NPT several availiable for sale online | eBay

Find many great new & used options and get the best deals for Swagelok SS-200-7-2BT 1/8 tube Bore Thru x 1/8 Female NPT several availiable at the best online prices at eBay! Free shipping for many products!

www.ebay.com

These two parts are the same - correct?



[oreo54]

No not really .. Need the i.d of the inside of the compression part so that tube end fits correctly.
Weird there are no model numbers on it.



[Water Dog]

For the 1/8 metering valve to the 1/4” tube connector, you’ll need this...

Superlok SR 4-2-S316, 1/4" OD Compression x 1/8" OD Tube Adaptor, 316SS | eBay

Find many great new & used options and get the best deals for Superlok SR 4-2-S316, 1/4" OD Compression x 1/8" OD Tube Adaptor, 316SS at the best online prices at eBay! Free shipping for many products!

www.ebay.com

Spare 1/8” ferrules...

1/8 Tube 316ss Ferrule Set (10 on Stick) Swagelok SS-200-SET | eBay

1/8 Tube 316ss Ferrule Set. Swagelok SS-200-SET. (10 on Stick).

www.ebay.com



[oreo54]

For the 1/8 metering valve to the 1/4” tube connector, you’ll need this...

Superlok SR 4-2-S316, 1/4" OD Compression x 1/8" OD Tube Adaptor, 316SS | eBay

Find many great new & used options and get the best deals for Superlok SR 4-2-S316, 1/4" OD Compression x 1/8" OD Tube Adaptor, 316SS at the best online prices at eBay! Free shipping for many products!

www.ebay.com

Spare 1/8” ferrules...

1/8 Tube 316ss Ferrule Set (10 on Stick) Swagelok SS-200-SET | eBay

1/8 Tube 316ss Ferrule Set. Swagelok SS-200-SET. (10 on Stick).

www.ebay.com

Can't see that working..Your going compression to compression , only bumping tube size from 1/8 to 1/4.
Not compression to 1/8 npt.



[Water Dog]

My recommedations are assuming that you have a 1/8” metering valve.

These two parts are the same - correct?

Sorry, second part is supposed to be a port connector. Just edited the post to reflect that



[Water Dog]

Can't see that working..Your going compression to compression , only bumping tube size from 1/8 to 1/4.
Not compression to 1/8 npt.

This part is to go from the 1/8” the metering valve to the CO2 tubing.



[naterealbig]

For the 1/8 metering valve to the 1/4” tube connector, you’ll need this...

Superlok SR 4-2-S316, 1/4" OD Compression x 1/8" OD Tube Adaptor, 316SS | eBay

Find many great new & used options and get the best deals for Superlok SR 4-2-S316, 1/4" OD Compression x 1/8" OD Tube Adaptor, 316SS at the best online prices at eBay! Free shipping for many products!

www.ebay.com

Spare 1/8” ferrules...

1/8 Tube 316ss Ferrule Set (10 on Stick) Swagelok SS-200-SET | eBay

1/8 Tube 316ss Ferrule Set. Swagelok SS-200-SET. (10 on Stick).

www.ebay.com

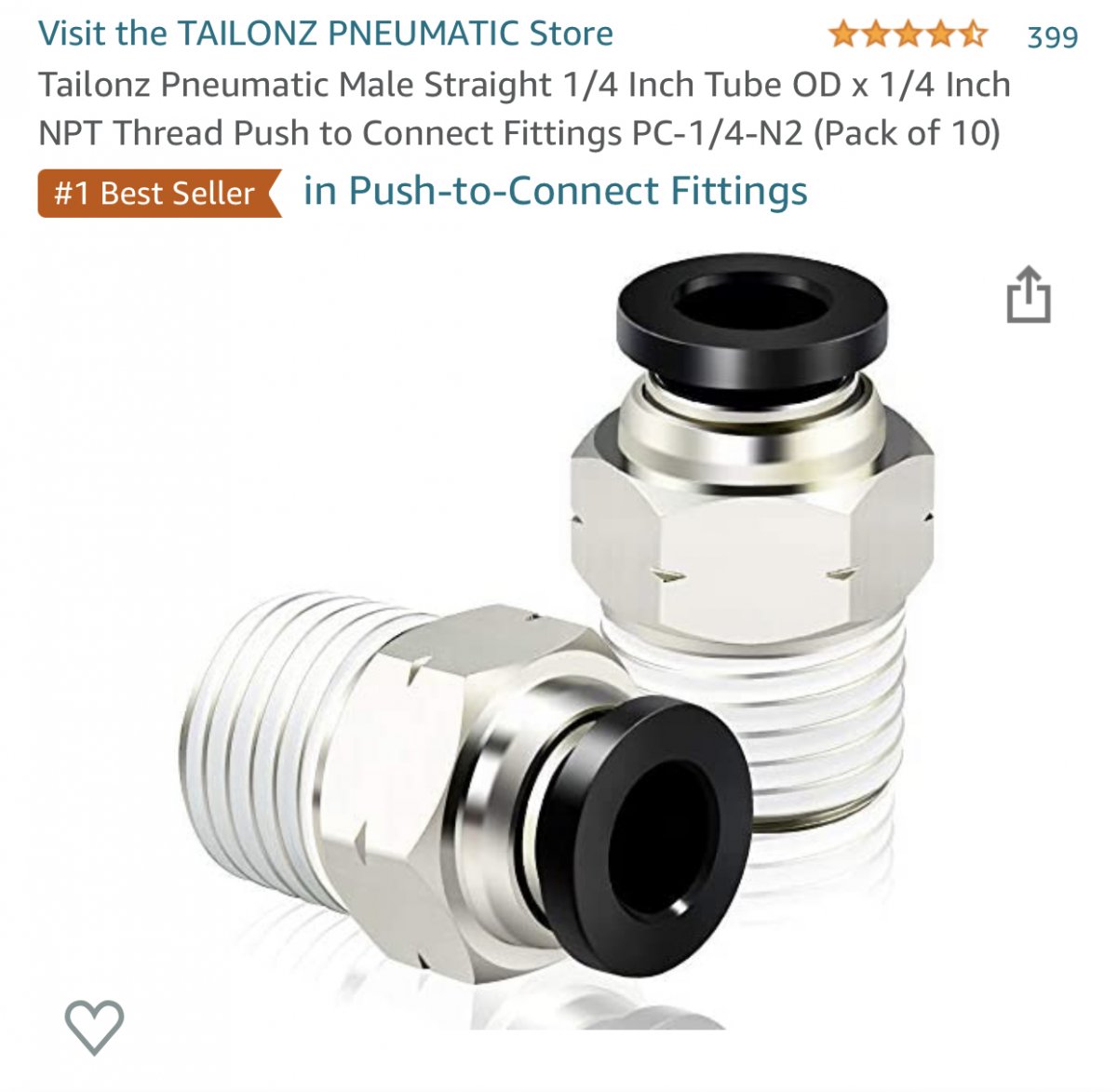

Thank you! What fitting would I need to do the JG style fitting instead of the 1/4" compression?

....Connecting metering valve output to this....



[Water Dog]

Thank you! What fitting would I need to do the JG style fitting instead of the 1/4" compression?

....Connecting metering valve output to this....

I dunno. I only use the 1/4” tube compression fittings on all of my builds for the CO2 tubing connection. I keep a bunch of 1/4” ferrules on had should I ever need to change out the tubing.

Not sure if you saw my thread, but I have a walk through of a regulator build here...

Building an Alanle style dual stage CO2 regulator

So I wanted to start a build thread on how to put together an Alanle style DIY dual stage regulator. Over the last couple of years, after building a couple of my own regulators, I have been helping a bunch of memebers, both here and on RC, with sourcing parts and putting together their...

www.reef2reef.com



[oreo54]

Brass Swagelok Tube Fitting, Female Tube Adapter, 1/8 in. Tube OD x 1/8 in. Female NPT | Tube Adapters | Tube Fittings and Adapters | Fittings | All Products | Swagelok

www.swagelok.com

How to go from compression to NPT see pic above.

You both got it all wrong IF you want to go from tube to NPT.
