I read up on several posts and threads regarding Hang-on-back custom work on modifying them to be miniature refugiums.
The reason I went this route is solely for:
- no information out there as of this post using the Penn Plax Cascade as a modified fuge system.
- learning the benefits of macro algae and natural filtration concepts
- supplementing my canister filter
A majority of guides have suggested using the Aqua Clear 110 HOB FIlters as a basis for cheap, low-cost solution.
I decided on the Penn Plax Cascade as an alternative and a way to apply some of those tips and strategies for the AquaClear 110 guides to this HOB filter as well.

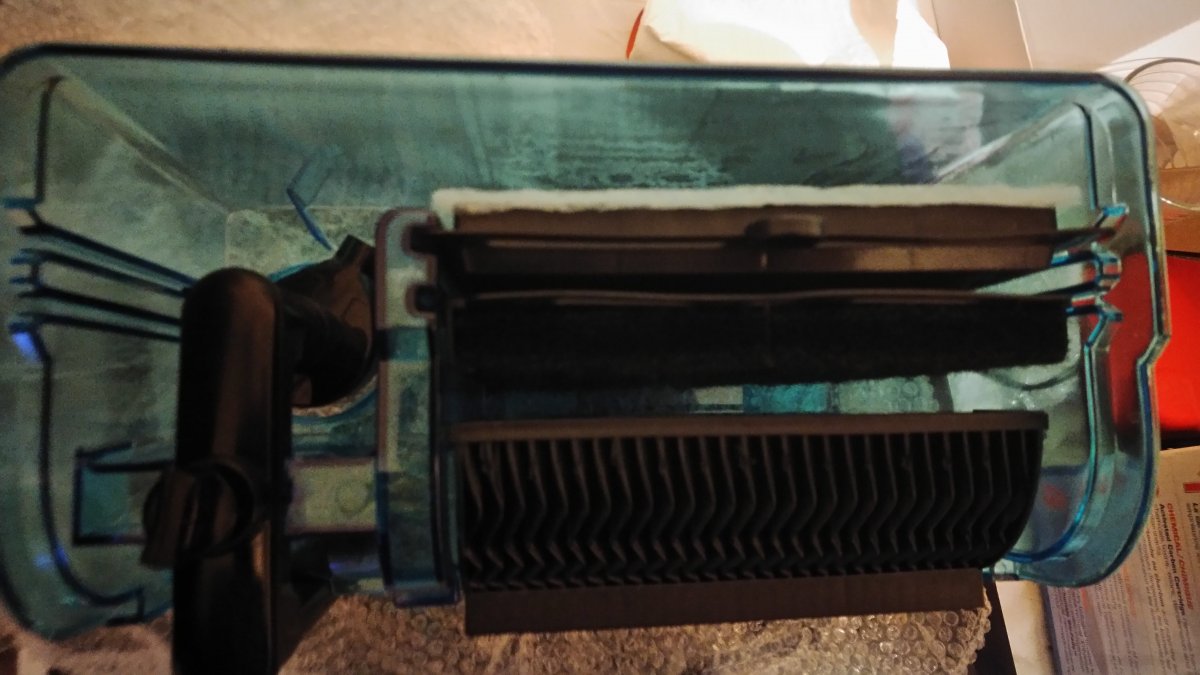

I apologize I didn't make a video of building this, but I have attached some screenshots of the process.
1. I took apart of the filter media cartridges and removed the carbon and foam filter.
2. I bought some pre-filter sponges on amazon to place onto the intake valve.
3. Using a small hacksaw (didn't have soldering tool at the time), I cut the plastic trays in half.
4. I sawed the top and bottom halves off the plastic trays.
5. I 5used 100% Aquarium-safe silicone sealant ( Bought DAP brand on amazon ).
6. Using sandpaper or sandpaper block, Smooth out the plastic edges of the pieces that are jagged, this will help prevent injuring or damaging any macro-algae you may host in the box.
7. Cure the silicone and use some kind of painters tape to hold the tray pieces in place into the box.
8. Allow Curing for the recommended time-frame, an extra 24 hours for assurance.
Apply silicone on part of the tray as least 1 to 1.5 inches below the top of the HOB filter.
I glued the other sanded piece to the back of the bio fall exit tray to trap any algae or loose bits from entering the Display. You could also add a micron-filter mesh instead if you so wish, but i decided using the filter media tray for copepod farming in the future.
Test the filter by filling it with water and running the pump.
Good luck. I hope this mod gives someone else creative ideas.
