Water Change Salt Mixer?

n2585722 · Feb 27, 2022

pulpfiction said:
That's way more plumbing than I have space for XD. Nice system though.

That is all in the garage. The tank is 35ft away with a hallway between. All the tubing is run through the attic and inside the wall to the tank. The ATO, AWC and dosing pumps are all in the garage also. below is a photo of the control board with the pumps on the right side.

Karen00 · Feb 27, 2022

n2585722 said:
That is all in the garage. The tank is 35ft away with a hallway between. All the tubing is run through the attic and inside the wall to the tank. The ATO, AWC and dosing pumps are all in the garage also. below is a photo of the control board with the pumps on the right side.

Wow! Did you do this yourself?

n2585722 · Feb 27, 2022

Yes, I also made the stand and canopy for the tank. It took a while to do it all though.

n2585722 · Feb 27, 2022

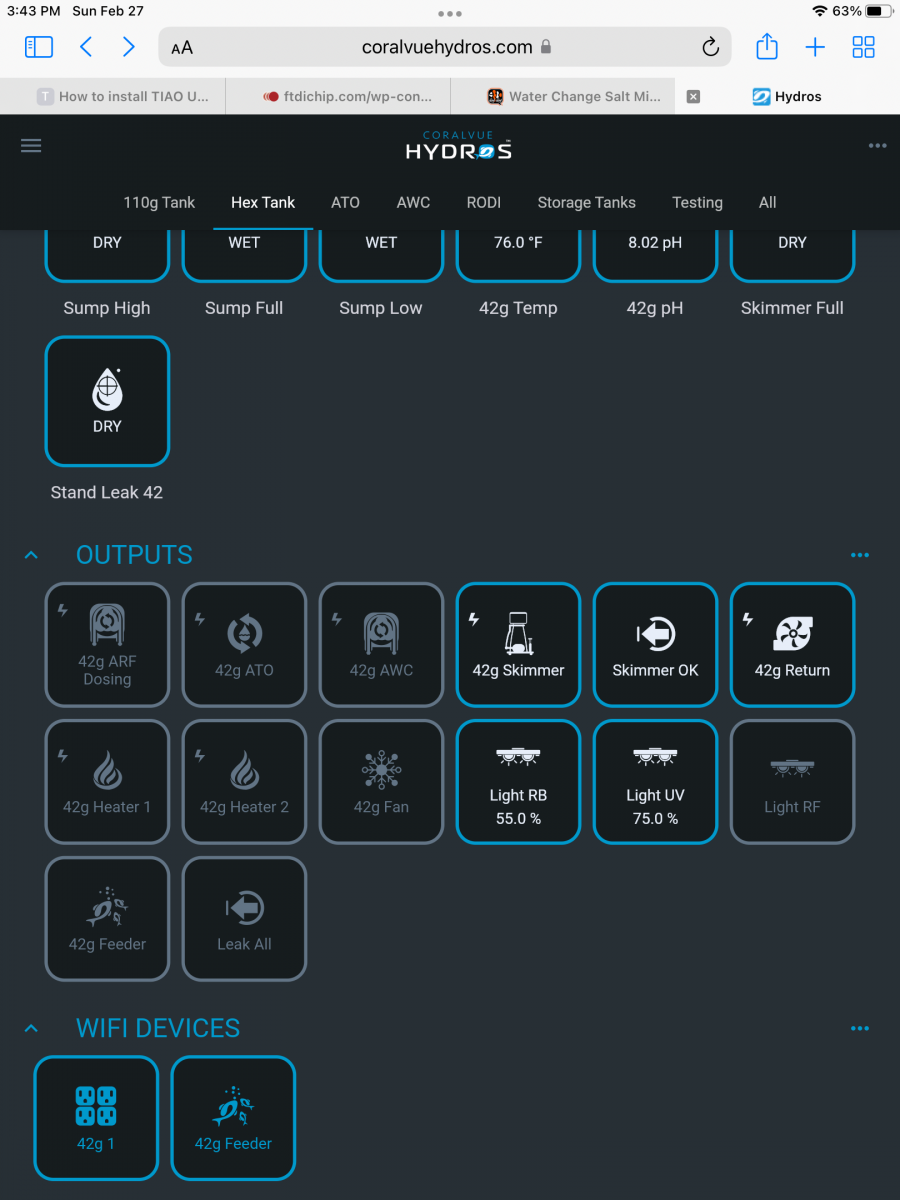

If interested here are the screenshots of the Storage Tank and RODI pages from my controller. The first three screenshots are the storage tanks page. The controllers, inputs and outputs mostly have to do with the storage tanks and other things in the garage. The forth screenshot is of the RODI page inputs and outputs. These are specific to the RODI control. The last two are of the page for the things at the tank itself. I was using a Archon controller and have been switching over to the Hydros controllers. I have 4 lighting channels and some moon lighting still left on the Archon. All the rest of it is controlled by the Hydros. I do have two of the lighting channels controlled by the Hydros now. I have to get some more 0-10v to PWM converters to switch over the other 4 channels.

rmorris_14 · Feb 27, 2022

n2585722 said:
My system does auto water changes and the water is drawn from a 20 gallon Brute can without heating or aeration. The can last about 4 weeks. When it goes low the system transfers the water from the mix tank to that tank if the mix tank is ready to use. The mix tank is also a 20 gallon brute can. Once the water is transferred the Mix tank is automatically refilled with DI water from the RODI. it has a circulation pump but no heater. All I have to do is add the salt mix and press a button when it is ready to use. I have about 4 weeks to get that done. Both tanks are in my garage under my workbench along with one for DI water for auto top off.
