Turbo, do people with crees tend to have the same response as far as growth, or is that an Led thing all together?
Sent Via the R2R Forum APP
Sent Via the R2R Forum APP
Step by step full spectrum diy led build
- Thread starter greg0385
- Start date
- Tagged users None
greg0385
Valuable Member
Heat test:
After the concern of leds running hot, once i got home i took some temp test to see how hot things are.
This pic is me pressing prob onto heatsink channel in the middle of pendant.
This pic is the temp of a blue+ ati bulb
Actual temp of royal blue with no optics are 100% power
Probe pressed outside of heatsink next to same royal blue led bulb and a purple+ and blue+ light bouncing off of heatsink.
Probe against optic of royal blue
Summary:
Bulb temp led= 120°
Bulb temp t5= 120°
Heatsink temp= 90-100°
Optic temp= 100°
I can live with 90-100° temp from 120° bulb using no fan.
Sent from my ZTE-Z990G using Reef2Reef Aquarium Forum mobile app
After the concern of leds running hot, once i got home i took some temp test to see how hot things are.
This pic is me pressing prob onto heatsink channel in the middle of pendant.
This pic is the temp of a blue+ ati bulb
Actual temp of royal blue with no optics are 100% power
Probe pressed outside of heatsink next to same royal blue led bulb and a purple+ and blue+ light bouncing off of heatsink.
Probe against optic of royal blue
Summary:
Bulb temp led= 120°
Bulb temp t5= 120°
Heatsink temp= 90-100°
Optic temp= 100°
I can live with 90-100° temp from 120° bulb using no fan.
Sent from my ZTE-Z990G using Reef2Reef Aquarium Forum mobile app
dwilliams87
Valuable Member
You have no need to worry then. I guess crees run a lot hitter than bridgelux. 2/3's as bright, 1/2 the price, and 1/3 as hot.lol
Sent Via the R2R Forum APP
Sent Via the R2R Forum APP
PaulKreider
Valuable Member
Thats probably the case, as dwilliams said, they run alot cooler! My heat sink probably sits at around 80deg, but thats awsome how yours worked out!
greg0385
Valuable Member
The more i think about it, i think alot of the heat is from the t5 bulbs. So today i will just leds only to see if any heat difference.
Sent from my ZTE-Z990G using Reef2Reef Aquarium Forum mobile app
Sent from my ZTE-Z990G using Reef2Reef Aquarium Forum mobile app
lakeviewink
Well-Known Member
That aluminum c-channel actually has a lot of surface area for heat to dissipate. That is probably part of the reason that they stay fairly cool. If you add up the square inches of surface vs. the number of chips it shows quite a bit of SA per chip.
gmoney243
2500 Club Member
That and heatsinks are all one piece of metal so all the heat compounds. with u Channel theres breaks and air between rows for cooling.
Sent from my VS930 4G using Tapatalk 2
Sacohen
Valuable Member
Aquastyleonline seems to be down since yesterday.
Anyone else having problems getting to it?
Anyone else having problems getting to it?
Sacohen
Valuable Member
Doesn't work for me from my laptop, but from my son's desktop it works and if I VPN into my office computer it works from there,
Strange why it won't work on my laptop on two 3 different browsers.
Sacohen
Valuable Member
Oh, gmoney243, was there a method to your led layout. I looked and couldn't seem to figure it out.
I want to do the same setup but on a 55 gallon 48" x 12" x 21 so I don't need as much as you have.and I'm trying to figure out how many led's I need and the layout.
I want to do the same setup but on a 55 gallon 48" x 12" x 21 so I don't need as much as you have.and I'm trying to figure out how many led's I need and the layout.
Sacohen
Valuable Member
Yeah it seems to work everywhere except my laptop.
I turned off the windows firewall and still nothing.
It's not my network firewall because i can access it from my son's desktop and my wife's laptop.
I turned off the windows firewall and still nothing.
It's not my network firewall because i can access it from my son's desktop and my wife's laptop.
gmoney243
2500 Club Member
Mine are just royal blue and white. When i did mine its all they offered. But pretty much i just did 2rb 1cw nxt row was 1 cw 2 rb so they didnt all line up and got decent mix/spread.
Sent from my VS930 4G using Tapatalk 2
Sacohen
Valuable Member
Sorry. I got confused.
Greg0385. The question was meant for you...
Was there a method to your led layout. I looked and couldn't seem to figure it out.
I want to do the same setup but on a 55 gallon 48" x 12" x 21 so I don't need as much as you have.and I'm trying to figure out how many led's I need and the layout.
Greg0385. The question was meant for you...
Was there a method to your led layout. I looked and couldn't seem to figure it out.
I want to do the same setup but on a 55 gallon 48" x 12" x 21 so I don't need as much as you have.and I'm trying to figure out how many led's I need and the layout.
greg0385
Valuable Member
2:1 ratio plus colors was a little difficult to layout. Thats why i chose to draw it out first. I just started the colors first and tried to keep the same color spectrums(green/cyan, etc) spaced apart and just used a pencil so i could erase a color placement if it was too close to another of the same.
For example, since i used a green on the front left. I used one on the front right, then to balance out the green. I put one back center. Being cyan is on the same channel, i then reverse the layout of the green to place my cyans.
I tried a V shape with the colors since most of the leds i had 3 of that color. Then reverse the V shape on the other color on that channel.
Once i had all colors placed, i just try and balance the blue vs white and fill in the empty spots.
More or less it was just trial and error until i had what i thought was a evenly balanced layout.
Sent from my ZTE-Z990G using Reef2Reef Aquarium Forum mobile app
For example, since i used a green on the front left. I used one on the front right, then to balance out the green. I put one back center. Being cyan is on the same channel, i then reverse the layout of the green to place my cyans.
I tried a V shape with the colors since most of the leds i had 3 of that color. Then reverse the V shape on the other color on that channel.
Once i had all colors placed, i just try and balance the blue vs white and fill in the empty spots.
More or less it was just trial and error until i had what i thought was a evenly balanced layout.
Sent from my ZTE-Z990G using Reef2Reef Aquarium Forum mobile app
greg0385
Valuable Member
Per request from " thejoshdavis"
Here are some pics of the drivers and the rat nest of connections/wires.

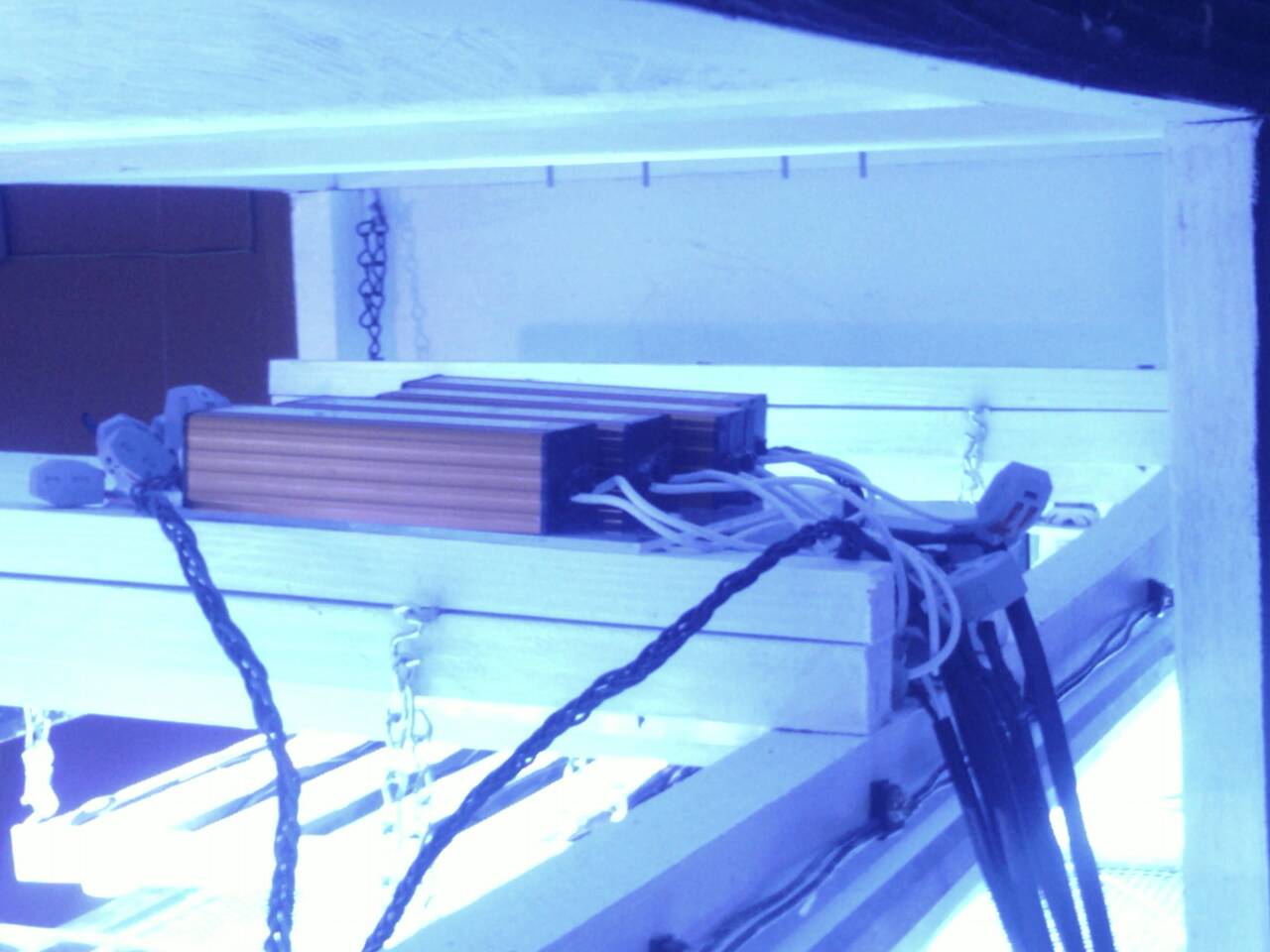

Front view of 4/6 drivers with 6" x 6" plexiglass under them. The other two are under them on a different bracket.
Back right view of 4/6 drivers
Hard to tell, but the other 2 drivers are here with two peices of angle aluminum attach to keep the drivers from falling.
Left bottom view of bracket for bottom 2 drivers
Bottom right view of bracket for bottom 2 drivers
Look for my youtube led video link here sometime soon.
Sent from my ZTE-Z990G using Reef2Reef Aquarium Forum mobile app
Here are some pics of the drivers and the rat nest of connections/wires.
Front view of 4/6 drivers with 6" x 6" plexiglass under them. The other two are under them on a different bracket.
Back right view of 4/6 drivers
Hard to tell, but the other 2 drivers are here with two peices of angle aluminum attach to keep the drivers from falling.
Left bottom view of bracket for bottom 2 drivers
Bottom right view of bracket for bottom 2 drivers
Look for my youtube led video link here sometime soon.
Sent from my ZTE-Z990G using Reef2Reef Aquarium Forum mobile app
Sacohen
Valuable Member
Looking forward to the video.
Place a link to it in this thread too, in case I miss the thread you start with it.
Thanks.
