Thanks for the reply! I was hoping that was the case.
The second photo is my goal. I only had it on those settings for a day. Having channel B and C at 85 is way more blue/violet than where I’m at now (77). I’ve been raising things very slowly.


BTimms

Active Member
View Badges
Joined
Jan 2, 2021
Messages
482
Reaction score
315
Location
British Columbia
Rating - 0%
0   0   0
Apogee MQ-510
Fluval Sea Marine & Reef 3.0 LED 48” strip
All channels 100%
Light is 3-4” above water
55g Tank 48” length
Water depth is 18”
Pumps and powerheads running
What is your light schedule?


melonheadorion

Well-Known Member
View Badges
Joined
Mar 8, 2021
Messages
846
Reaction score
558
Location
green bay
Rating - 0%
0   0   0
i have finally done a par test on mine. the setup righ tnow is a bit wierd, because im in the process of upgrading/moving everything to my 65g, but i figured i would do readings on both tanks, just in case someone wanted to know.

tested with apogee 510



20g long with 1 kessil a160we about 6 inches off the water. only 1 light running.,readings are with intensity at 100% and color at about 10%. water depth is 12 inches

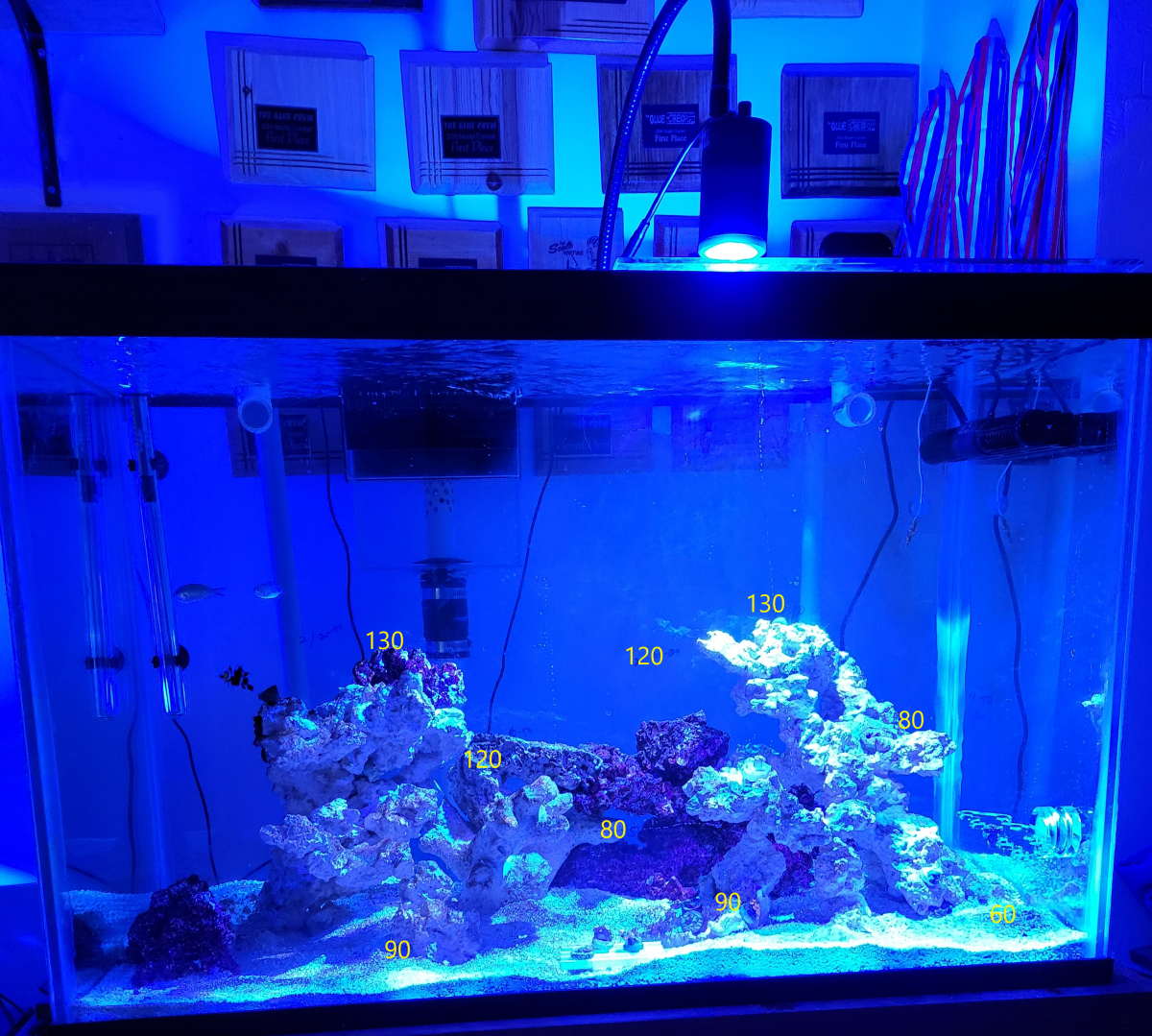

65 gal. picture only shows 1 light, but when i did the testing, i had 2 lights over. (2 kessil a160we). readings are with intensity at 100% and color at about 10%. light 5 inches from the top of the water. water depth is 21 inches

i did have my wavemaker running jebao scp 120




ChiefEngineer

New Member
View Badges
Joined
Mar 19, 2019
Messages
2
Reaction score
4
Rating - 0%
0   0   0
Long time Reef2Reef reader, first post.

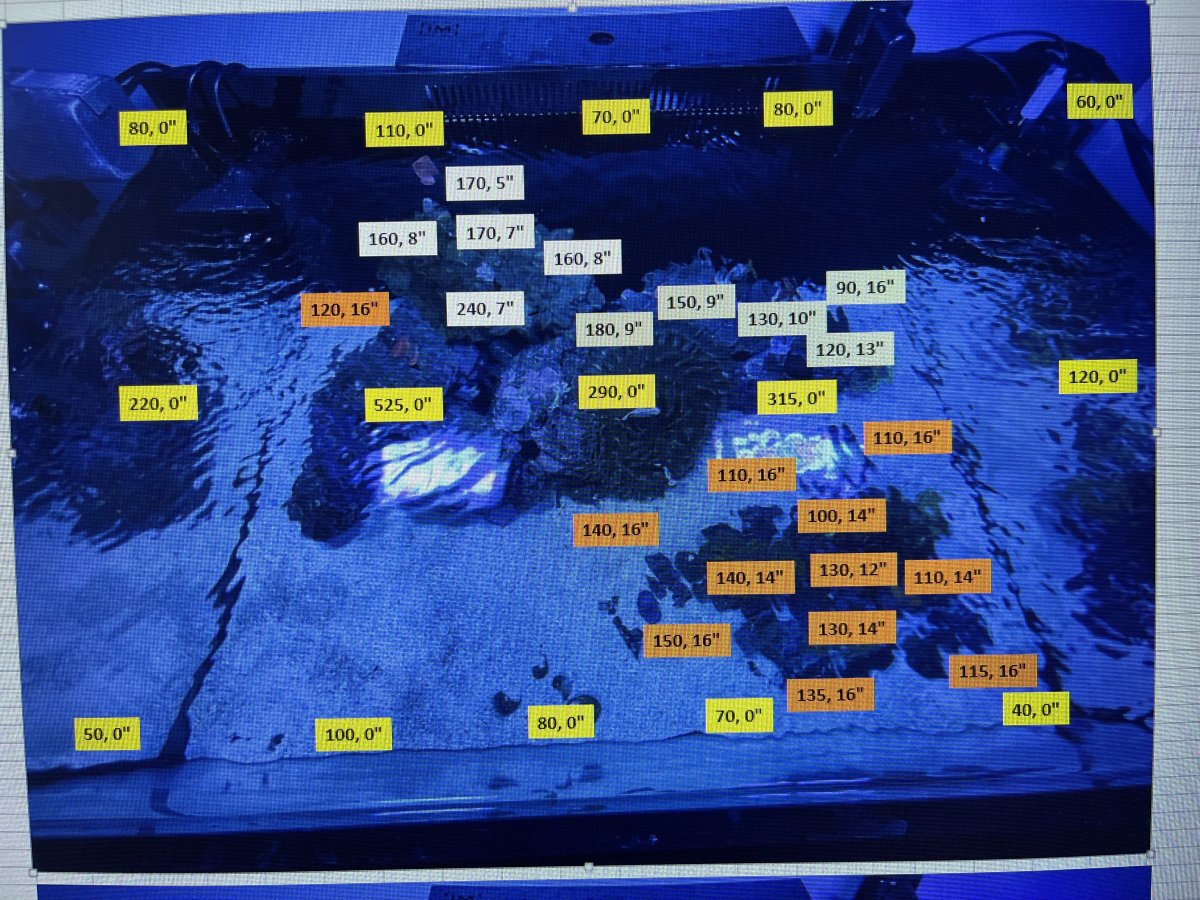

90 Gallon standard Aqueon without Sump, FX4 with rock rubble, GAC, small amount of GFO, and polishing pad.
H.O.B refugium
Tunze Comline 9012 DC
Pumps: 2 Ice Cap 2K's and 2 RPM by Reefbreeders

Lighting: Reefbreeder Photon V2+ 48" and 2 Orphek 48" Blue Sky. Mounted 12" off the surface.

Photon peak schedule Ch# 3,#5, #6 @ 90% Ch #1 & #2 @ 10% and Ch #4 @ 25% for 9 hrs and Orphek bars on for 12 hrs

Readings taken with Apogee 510 and all pumps running with peak intensity.

Tank started as LPS and quickly started becoming SPS dominant. Will be upgrading to a 220 in the future.

Don't see many people with this light combo, figured I'd share some info if anyone was interested on readings.

Please ignore the cyano I'm currently battling on my sand bed.



Dowtish

5000 Club Member
View Badges
Joined
May 30, 2011
Messages
7,043
Reaction score
82
Location
Murfreesboro TN
Rating - 0%
0   0   0
10 gallon (aqueon)
HIPARGERO LED 30W - amazon $70
4" mounting height (standard bracket cut down to center over tank)
Full blue two clicks down on white


lubeck

Valuable Member
View Badges
Joined
Dec 20, 2021
Messages
1,225
Reaction score
1,199
Location
U.S.A
Rating - 0%
0   0   0

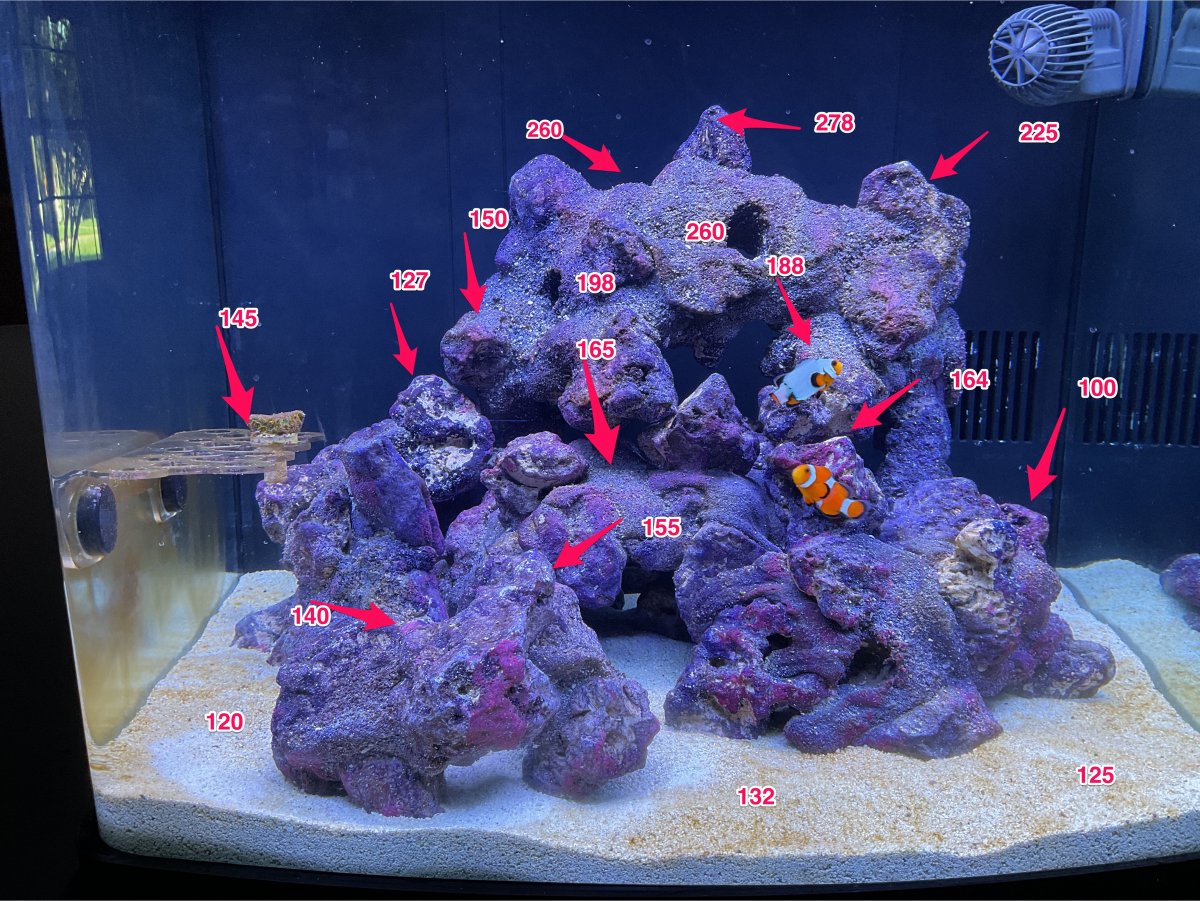

Standard 32 gal biocube with 2 12” 21LED blue actinic on each side of the stock lighting.

using a PMK apex meter. All pumps are on.

the blue numbers are all lights On and the red is with the 2 blue actinic bars off.



icedgxe

Well-Known Member
View Badges
Joined
Jun 22, 2008
Messages
581
Reaction score
350
Rating - 0%
0   0   0

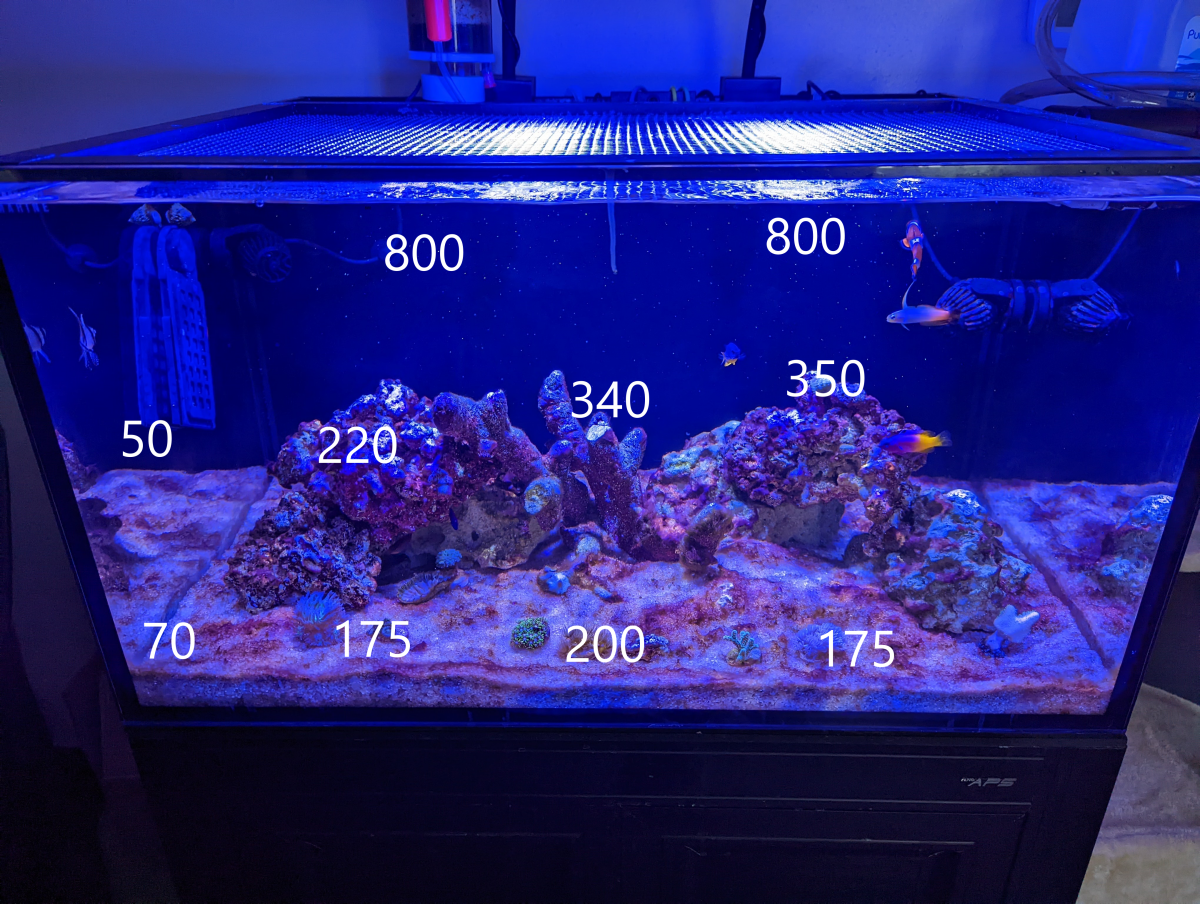

Tank: Innovative Marine SR-80 Pro 2 (48x18x16” display section).
Lighting: 3 Kessil A360we mounted 8-9in off the water surface.
Settings: 75% Intensity and 60% Color.
Meter: Apogee MQ-510
All pumps turned off for readings. Please excuse the poor quality picture.








lubeck

Valuable Member
View Badges
Joined
Dec 20, 2021
Messages
1,225
Reaction score
1,199
Location
U.S.A
Rating - 0%
0   0   0
Standard 32 gal biocube with 2 12” 21LED blue actinic on each side of the stock lighting.

using a PMK apex meter. All pumps are on.

the blue numbers are all lights On and the red is with the 2 blue actinic bars off.

I ended up upgrading my light to a xr30 blue. All pumps are on. The light setting is at 90% intensity but at 68% schedule. Very powerful light. I’m realizing I’m going to have to move some of the acros in the mid left of the tank because it’s a little low on par. This is because the return and mp10 cross at this point.


biecacka

Valuable Member
View Badges
Joined
Jan 1, 2012
Messages
2,319
Reaction score
2,132
Location
columbus ohio
Rating - 0%
0   0   0
Side and front. 48/48/24 cube with Orphek v4 G2. They are 17 inches above the water level and the pumps where all on.
was surprised sort of the low ish numbers but they high up. I might lower them a bit. numbers just seem a little low for sps dominant tank.

corey

E1E27D3B-D8B6-4BD3-8F21-3112BD0E5DF2.jpeg 237E20B9-0B90-455C-8D67-860D8DED1051.jpeg


MamaMolo

Community Member
View Badges
Joined
Aug 3, 2021
Messages
82
Reaction score
162
Location
Moses Lake, Wa
Rating - 0%
0   0   0
Blue Simple World Water Day Typography - Facebook Post (6).png

  • Tank size: Mixed Tank 55 Gallon 36" Length x 20" Wide x 18" Height
  • Type of meter you are using for measurements: Apogee
  • Type of lighting: 6 Bulb T5 ATI (3 Blue+, Coral+, Purple+, and Actinic)
  • Height of lighting over your water: 8.25" from water line
  • Depth of water: 16" depth
  • Pumps or power heads running? All flow off


bReefedBaker

Active Member
View Badges
Joined
Apr 9, 2021
Messages
225
Reaction score
431
Location
Syracuse
Rating - 0%
0   0   0
This thread is to host a Database of Par values on different tanks under different lighting, hopefully it will be useful for people to cross reference if they don’t have access to a Par Meter.

This will not be an exact science but should give people a good estimation of different lighting over different tanks.

Please do not use this thread for comments, let’s try to keep this a Database for Par data only, for more information, suggestions or information please go here..

https://www.reef2reef.com/threads/s...d-and-share-your-numbers.538890/#post-5569165

suggested information that should be included in your post:
  • Type of meter you are using for measurements
  • Type of lighting.. be specific as possible and include things like manufacturer, age, length and type of bulbs for those t5 users, wattage and reflectors for the MH users.
  • LED users if possible include percentages used for different colors
  • Height of lighting over your water
  • Depth of water
  • Pumps or power heads running?
  • Any other factors that may contribute to readings such as room lighting, windows, tank in sunroom? etc.
  • A picture with measurements would be ideal but a list/description would be fine as well.
  • Provide as many collection points as possible such as bottom of tank left, right and center.. middle of tank left, right, center, front and back etc.

*Me just following this thread
Binging The Simpsons GIF by AniDom


rmcrom

Active Member
View Badges
Joined
Dec 31, 2020
Messages
404
Reaction score
334
Location
Texas
Rating - 0%
0   0   0
RedSea XL435 with 2x Radion XR15 g5 pro. AB+ profile at 60% schedule intensity. MQ-510 meter.
