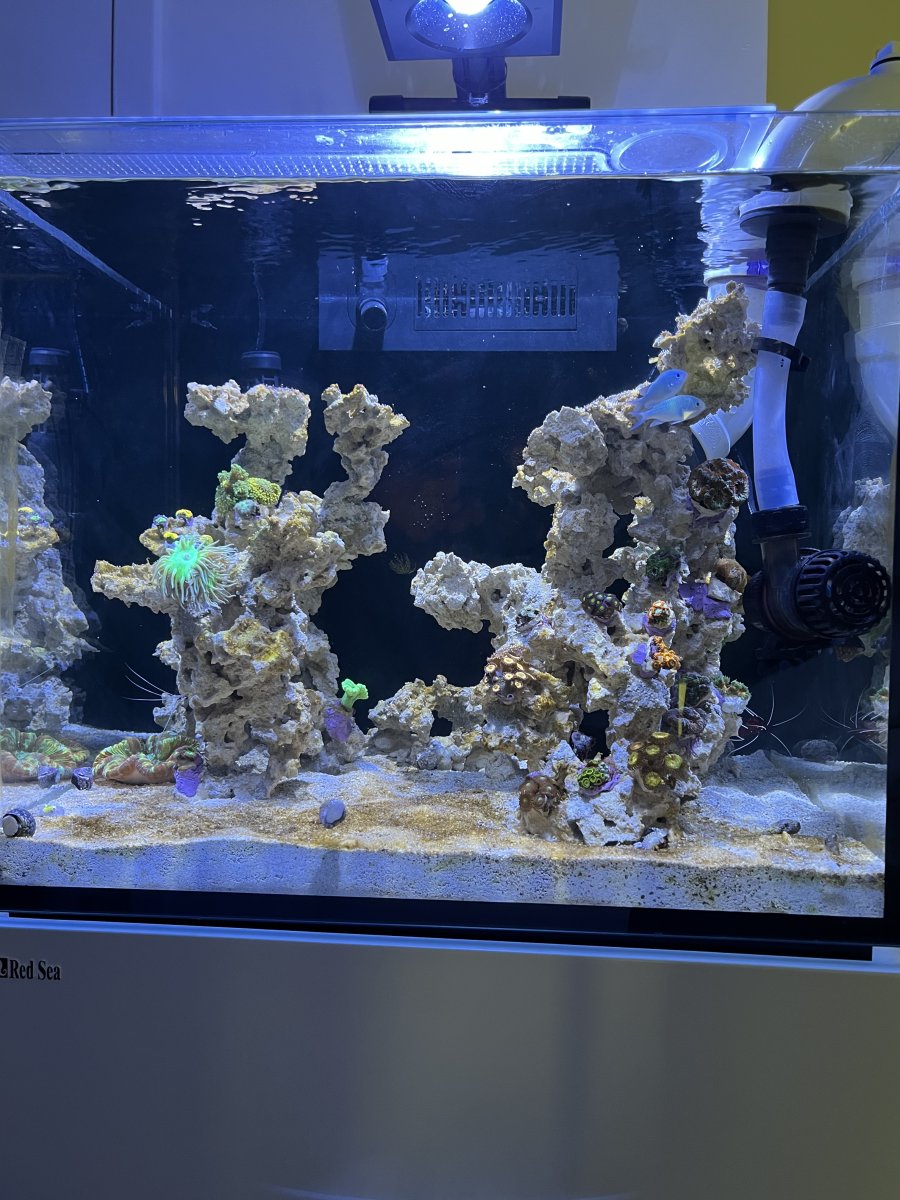

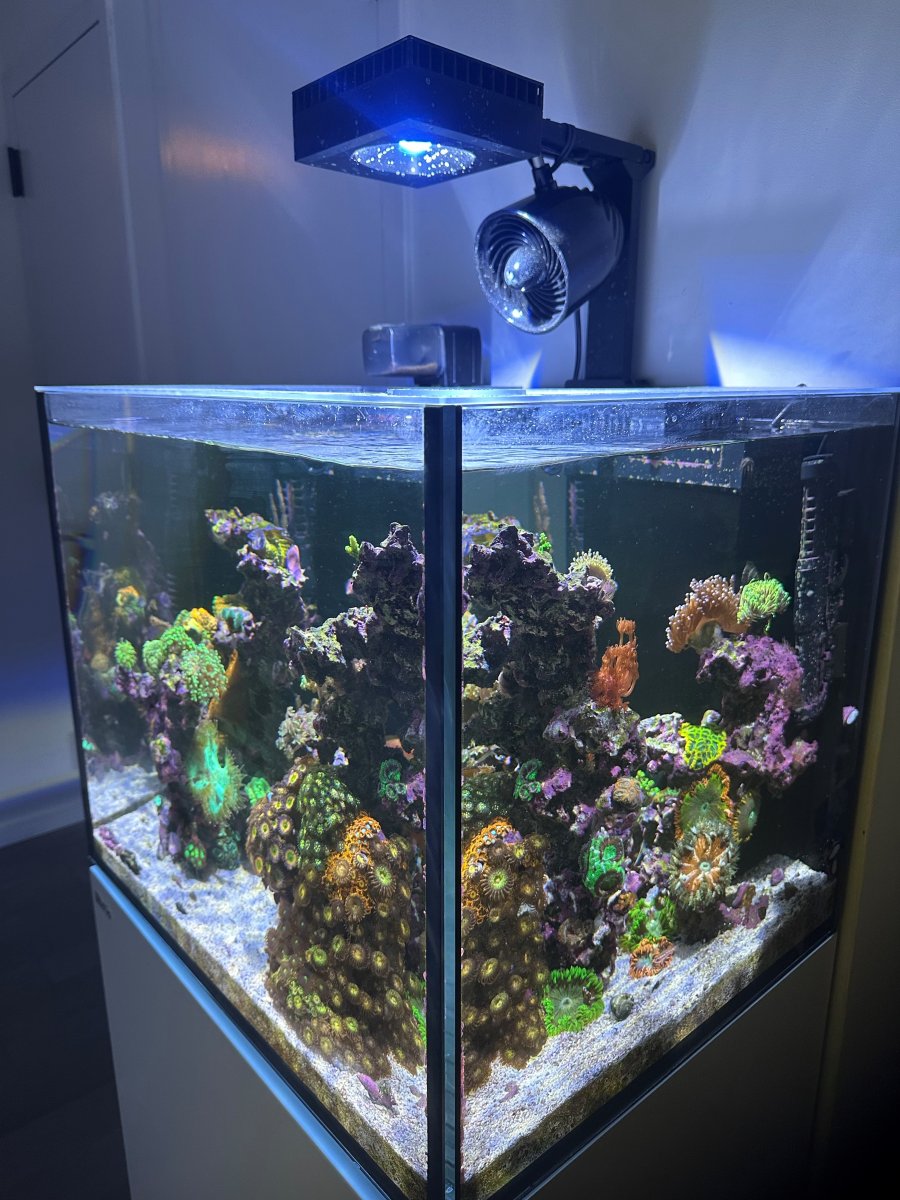

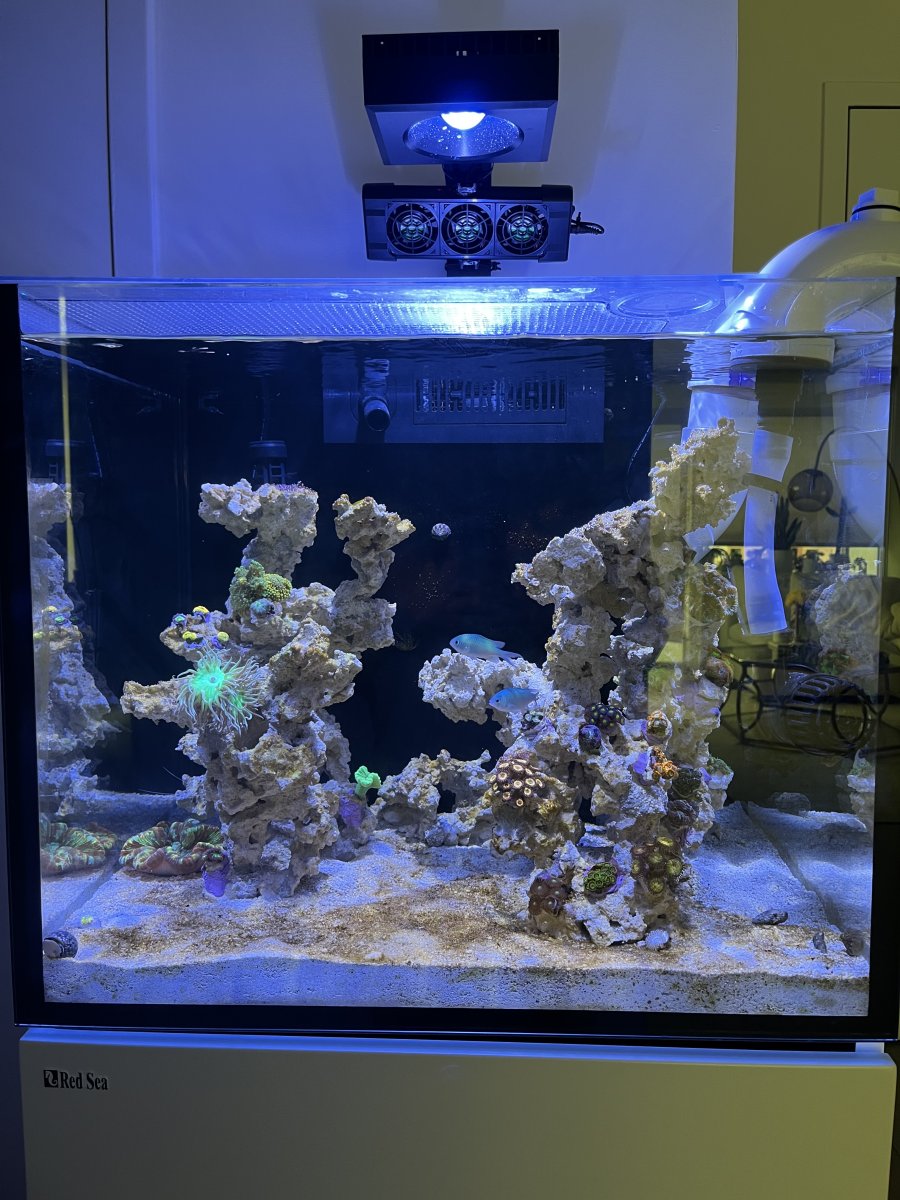

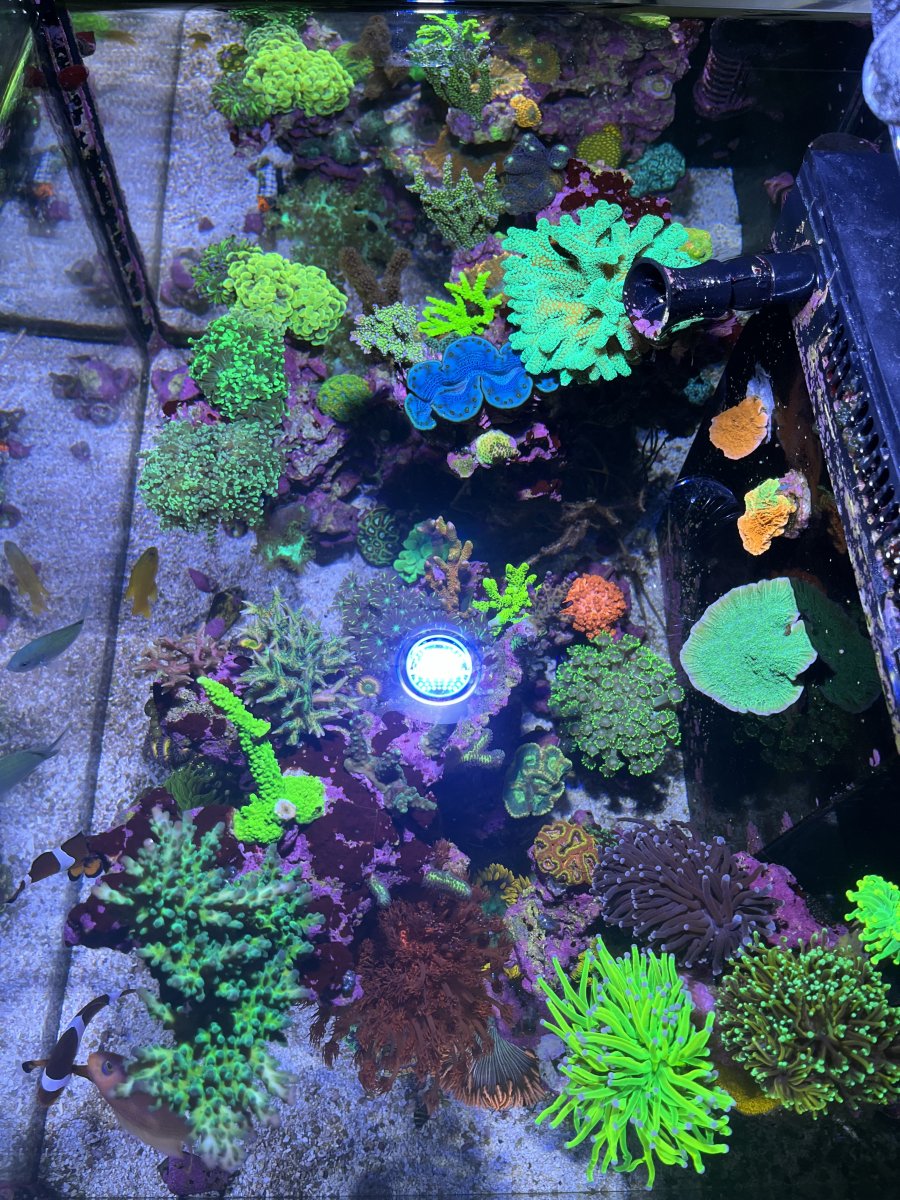

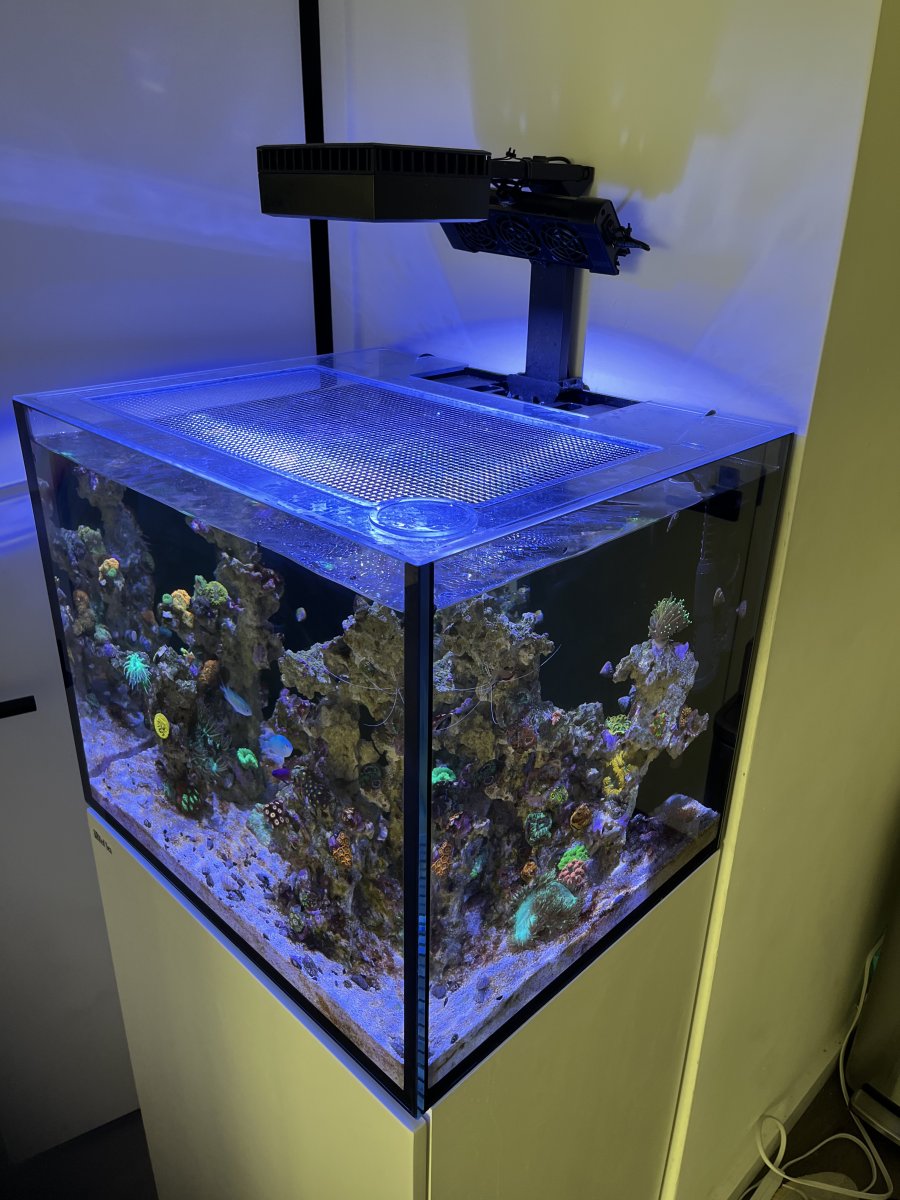

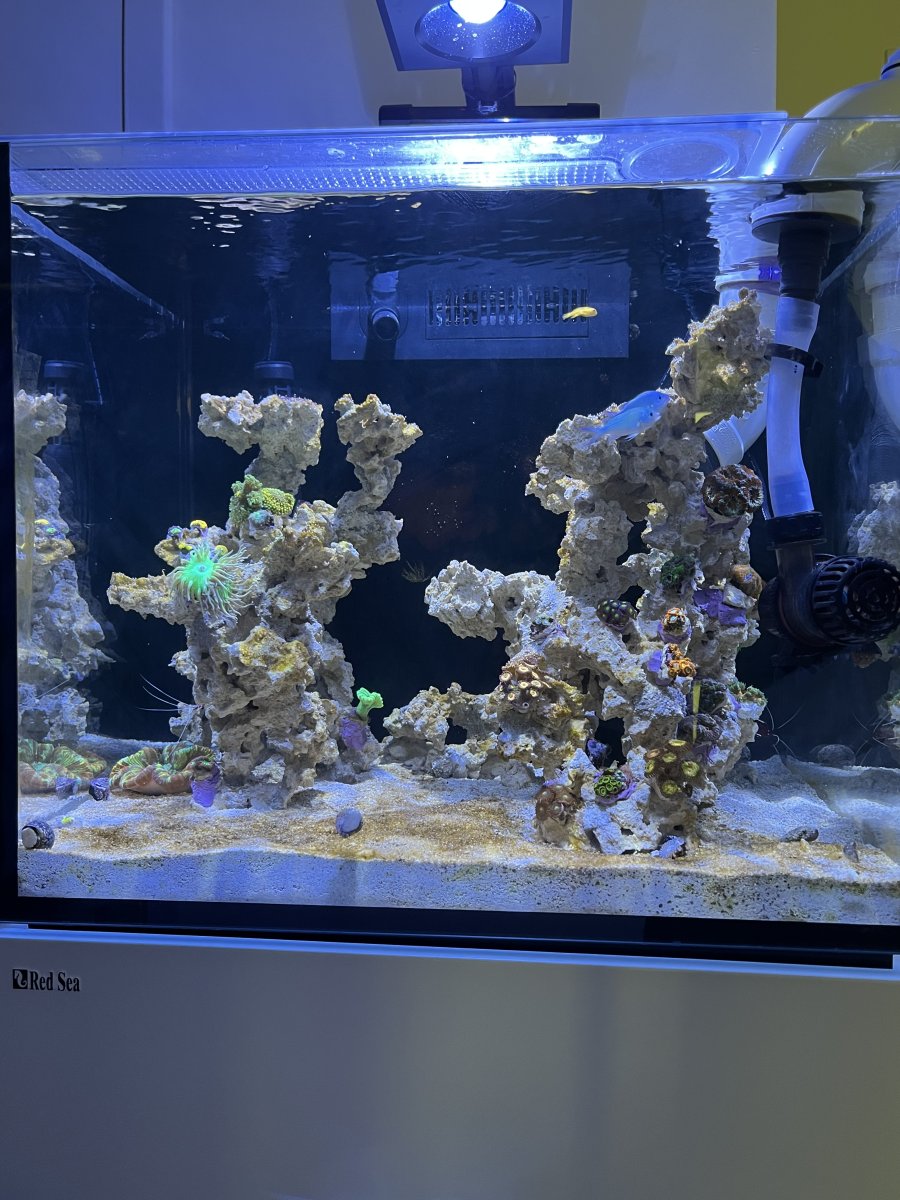

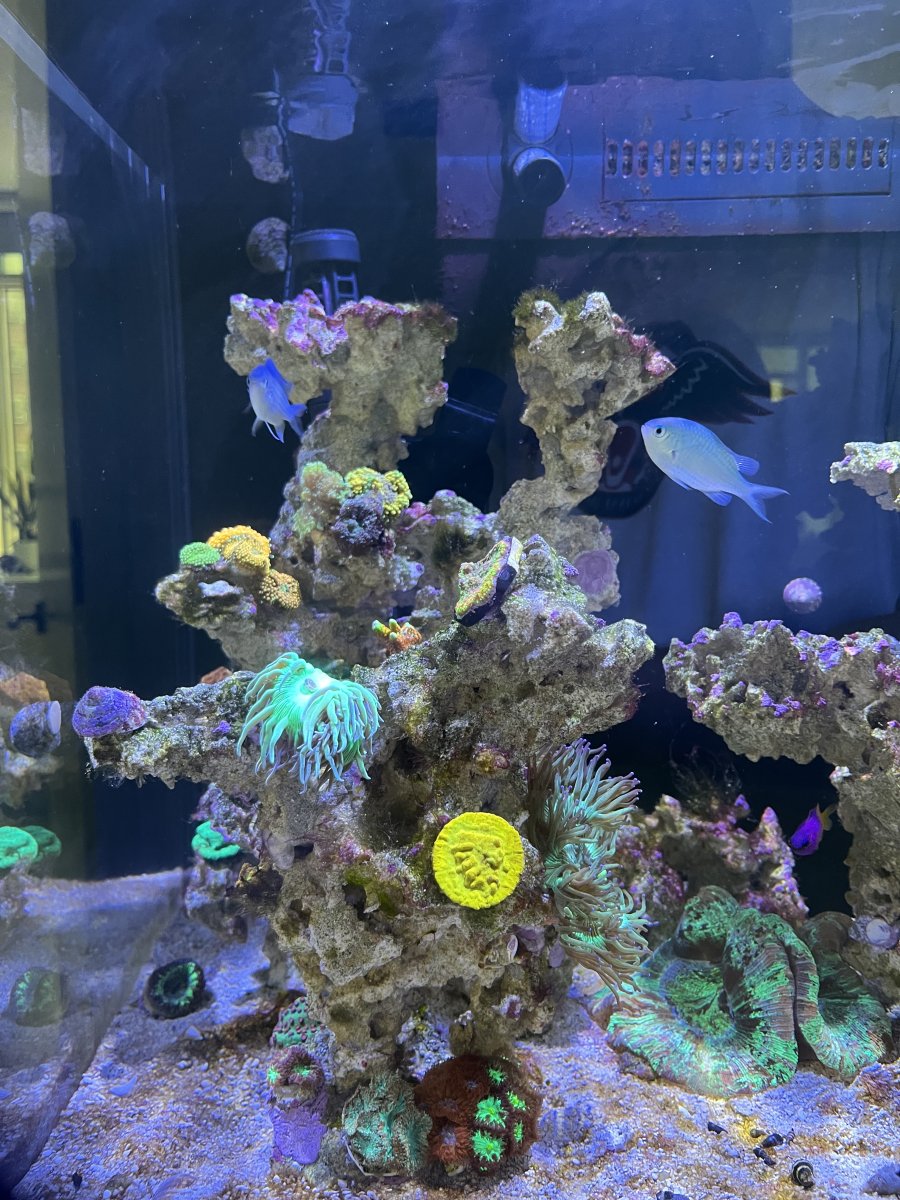

Full Tank Shot as of 7/19/2024:
Come one come all, welcome to my build thread.
First, a bit about myself. When I was 14 I stumbled into an archaic corner of YouTube where people were keeping reef ecosystems in little glass boxes. I was hooked and immediately wanted to join in the fun. My parents and financial situation on the other hand, disagreed. After much persuading I prevailed and that Christmas I found a 29 galloon BioCube under the tree. Sadly that was the extent of my parent’s generosity. From then on I cut every corner possible to save a few bucks and the result was a bit underwhelming to say the least. Since that first subpar foray into reefing I’ve always wanted to revisit the hobby but the timing was never right. Fast forward a decade n' change, and the prodigal (hopefully) son has returned, this time equipped with a longer attention span and deeper pockets. The name of the game this time around is attention to detail and thoughtfulness. The goal is a bustling mixed reef with a breadth of biodiversity and an different critter at every turn, each one more curious than the last.
With the introduction out of the way, on to the tank. For equipment I’ve gone with the Red Sea Reefer 170 G2 decked out with the full suite of RedSea hardware. I like the idea of being able to control everything from the ReefBeat app and I imagine the compatibility between RedSea hardware will make life a lot easier. You can also buy bundled hardware with the tank for a discount. Since all the equipment is controllable via ReefBeat I’ve held off on getting an aquarium controller. I plan to get one in Jan 2024 after the tank has exited the ugly phase and graduated to more delicate SPS coral. Until then, I don't think the incremental benefits are worth the price tag considering I can control everything via the ReefBeat app or smart outlets. Happy to hear everyone’s thoughts on this, worst case I just double down on controllability. See below for the full equipment list:

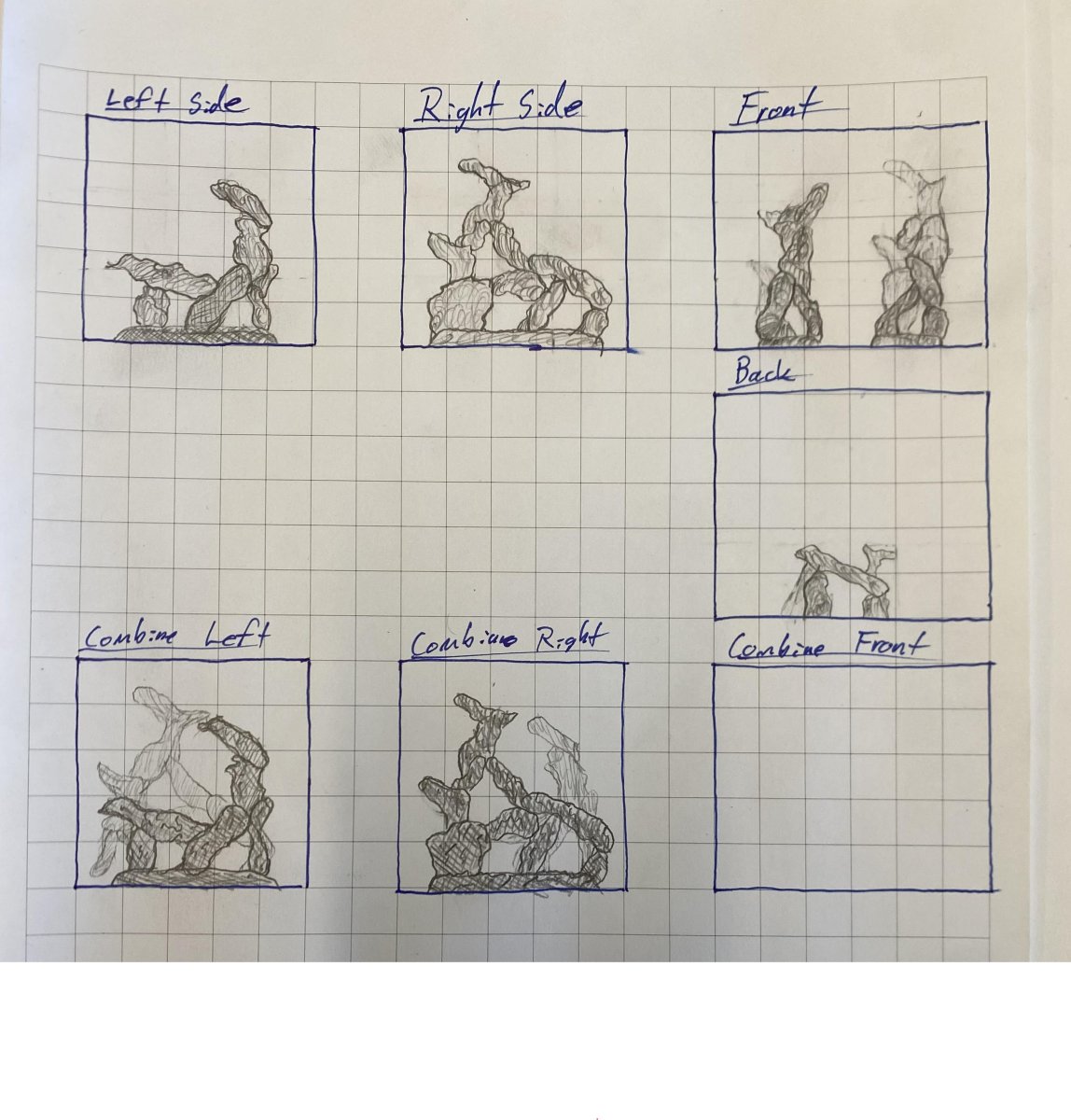

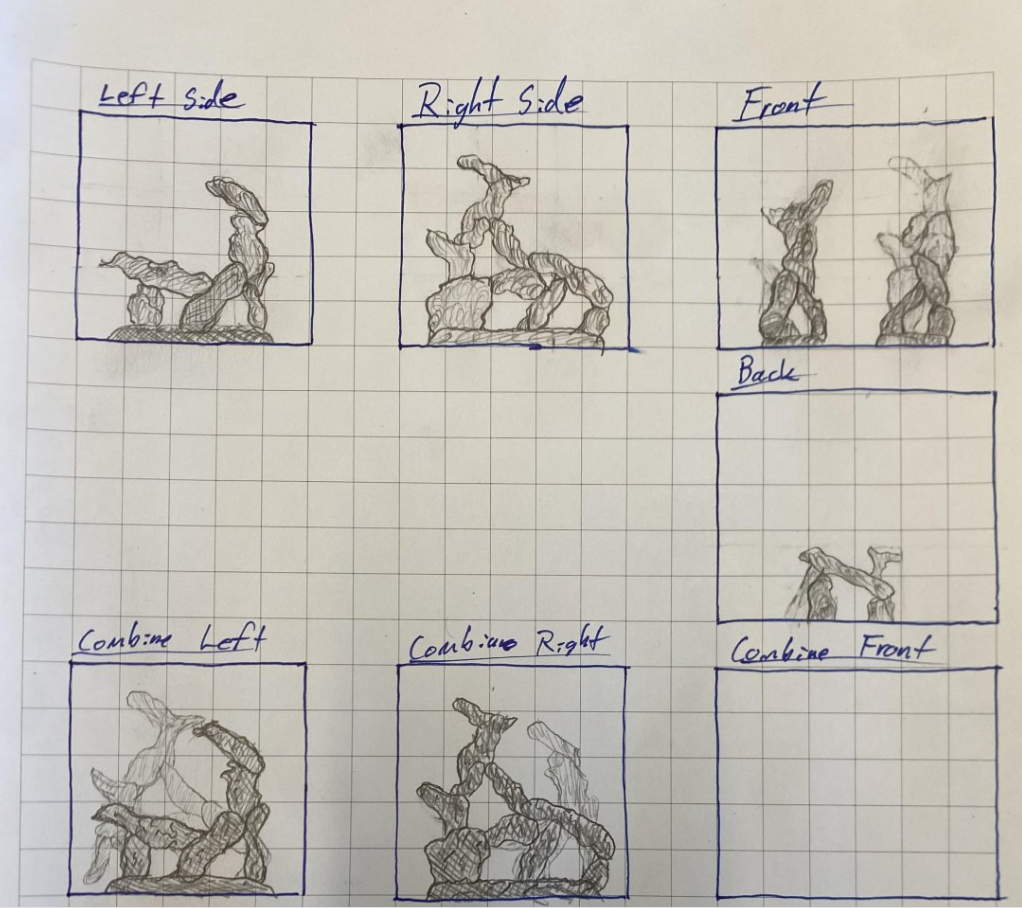

With all the hardware secured, it’s time to aquascape. I had a specific vision for the aquascape (see diagram below). The idea was to create an even balance of positive and negative space with focal points at each of the four intersections implied by the rule of thirds (think the 4 intersections on a single side of a rubix cube). I also wanted there to be various sight lines through the rockwork to increase depth. I followed BRS’s NSA aquascaping tutorial (). I started off with 40 pounds of Marco Dry Rock and crushed it into smaller, more workable pieces with a hammer and chisel. I then slowly built up from two medium sized Marco Foundation Rocks using a combination of Extra Thick Gel Supper Glue and Insta-Set to secure pieces together. It worked wonderfully. Once I had the whole thing put together I went over the joints with E-Marco Aquascaping Mortar to guarantee a lasting bond. Using BRS General Bonding Glue I covered the mortar with Marco sand (Marco NSA Poweder) to give the scape a seamless, natural look. The whole process took about a day but I had a blast. Admittedly I got a bit carried away making crevices and overhangs but I always knew I didn’t have the restraint for the minimalistic aesthetic.
Here's the 1:1 PVC frame I built to guide me while I played my hand at god, creating the world some (hopefully lucky) critters will call home. This was incredibly helpful and I would really recommend this to anyone taking the NSA aquascape route.
The rubble before I smash it to bits, you can see how the foundation rocks are machined flat at the bottom so subterranean animals don't knock over your scape:

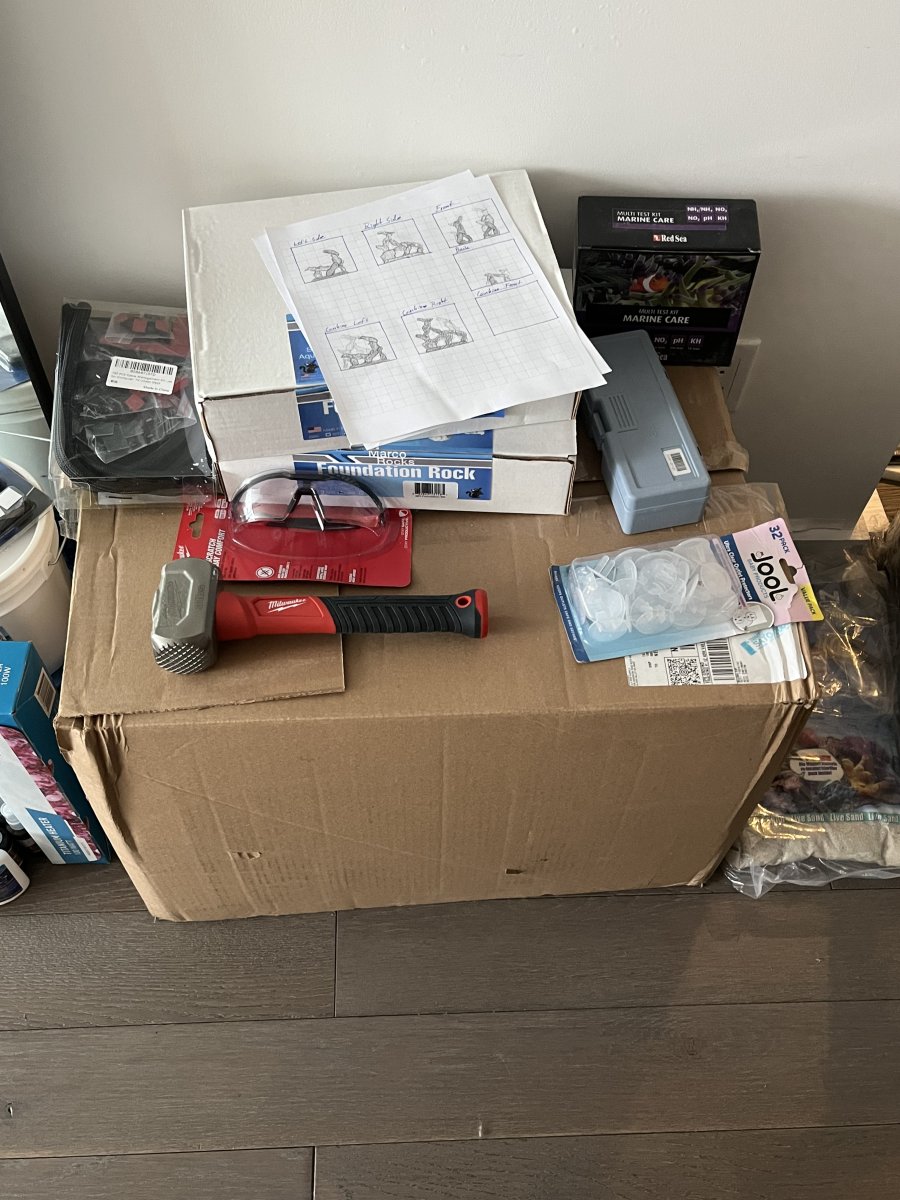

Not a bad place for some aquascaping:
All broken into rubble:
A work in progress:

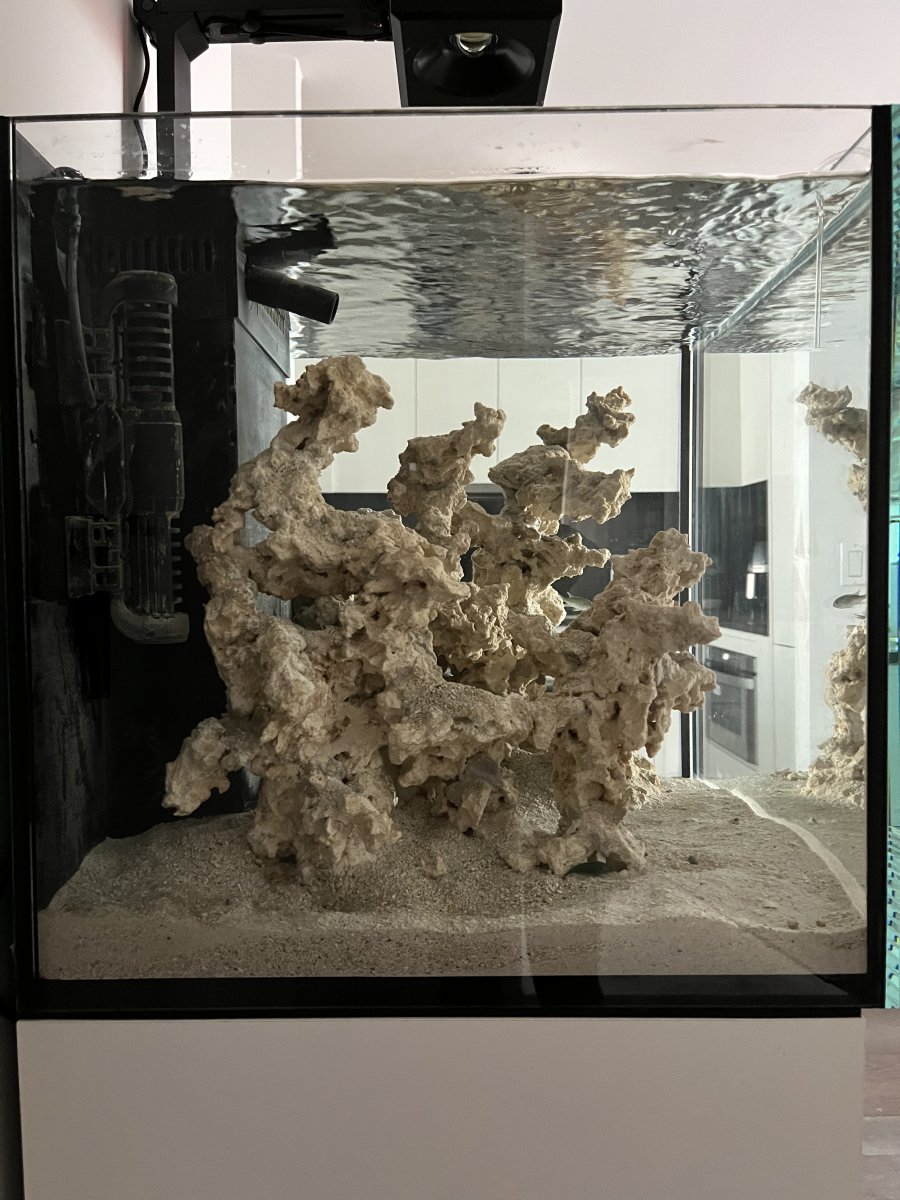

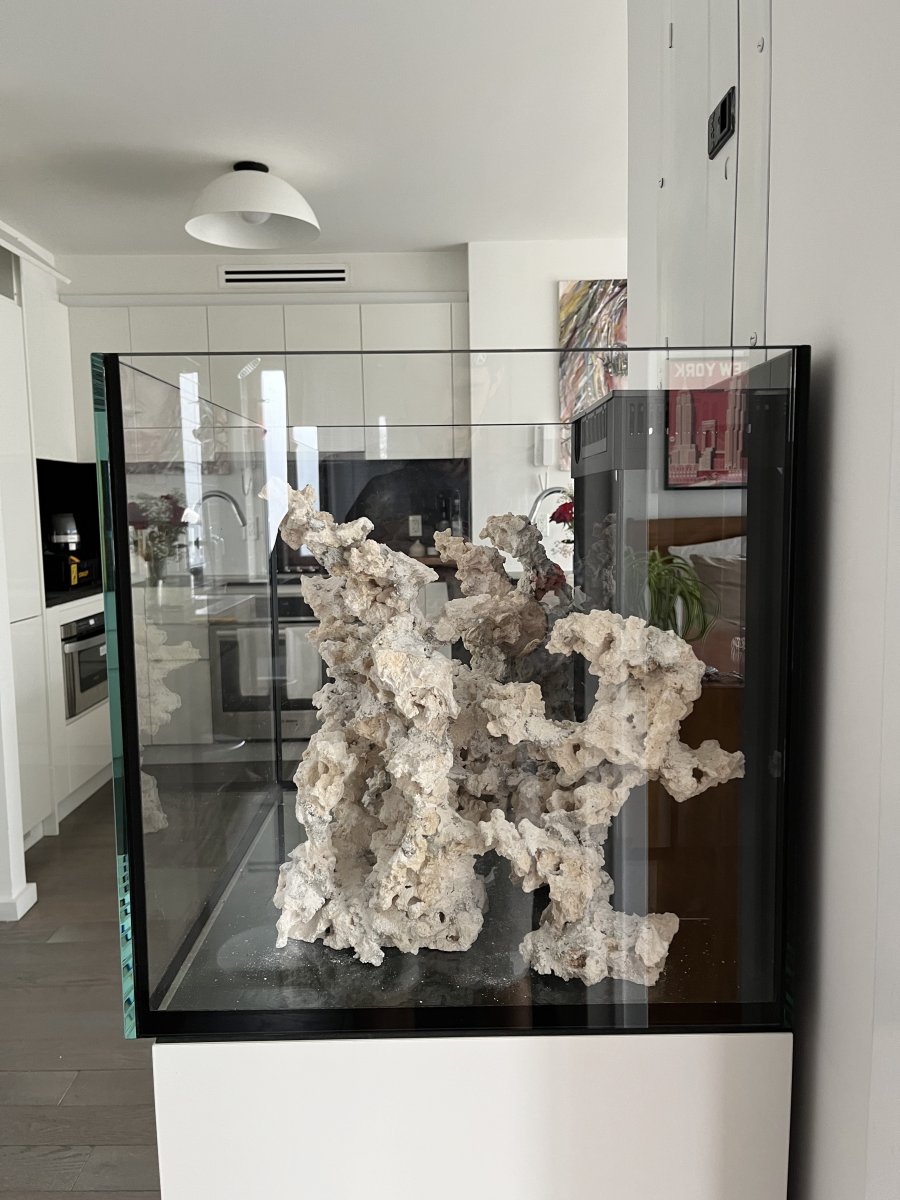

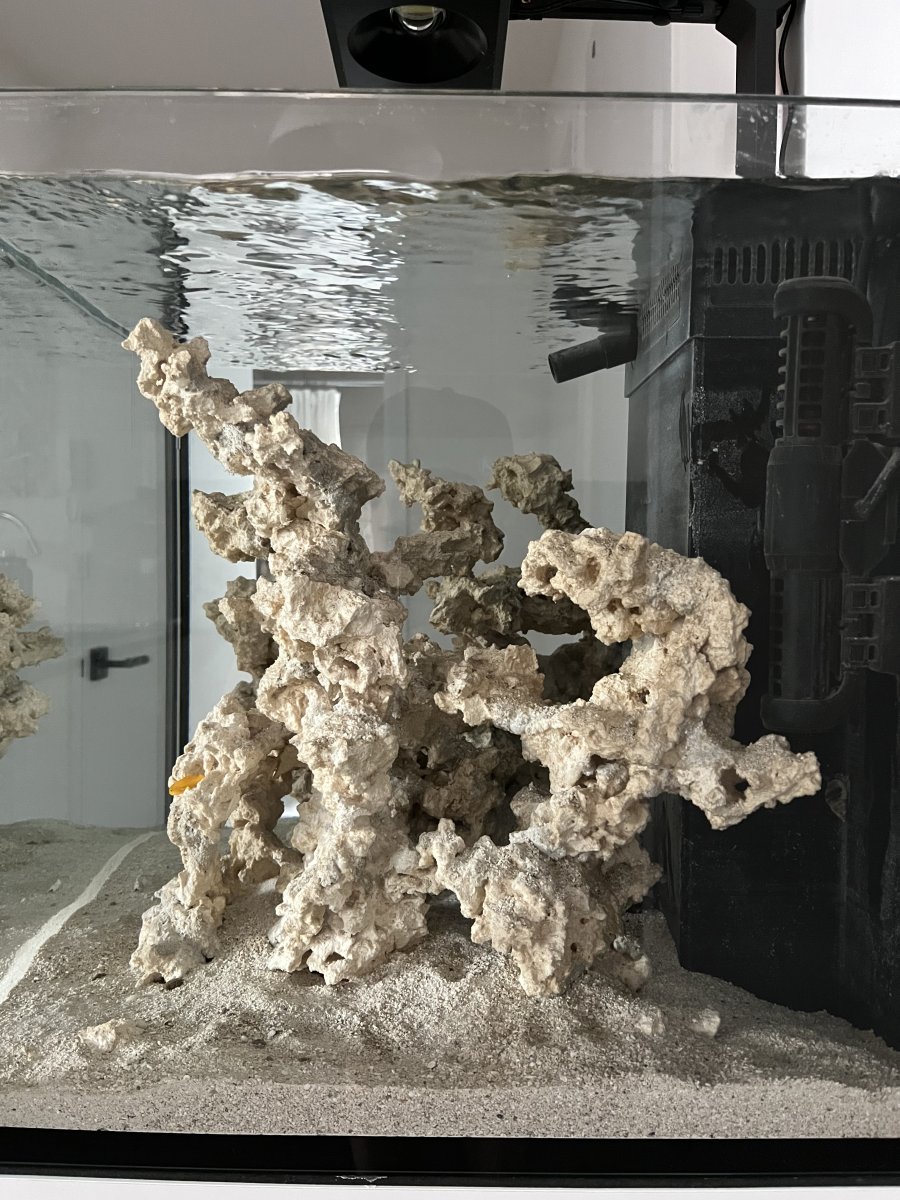

And here's the final product:
Having finished the aquascape It was time to set up the tank. The plumbing and installation of everything was pretty seamless. I was glad I stuck with RedSea equipment, integration of things like the roller mat was very intuitive. Unsurprisingly, the cable management was the most tedious part of the whole thing.

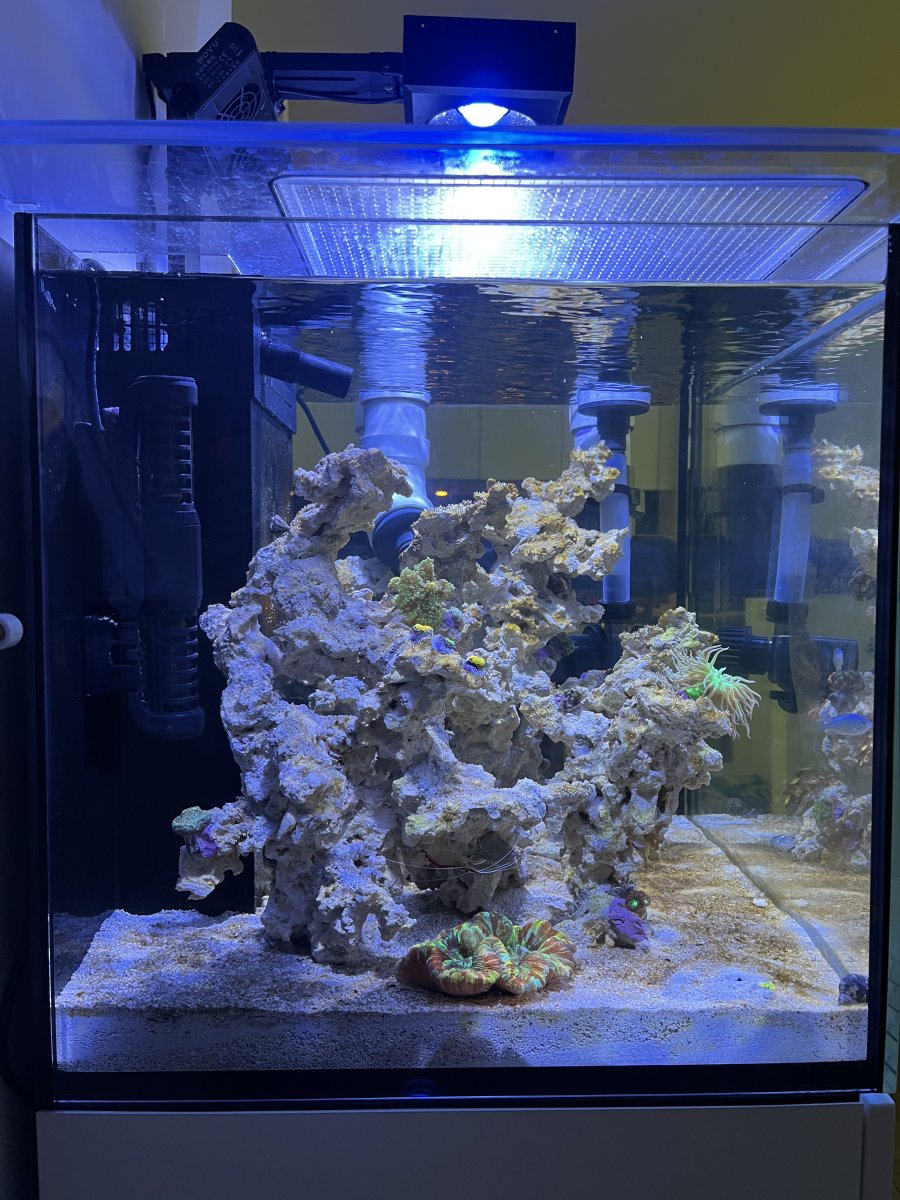

Here it is, disregard the sandy glass!

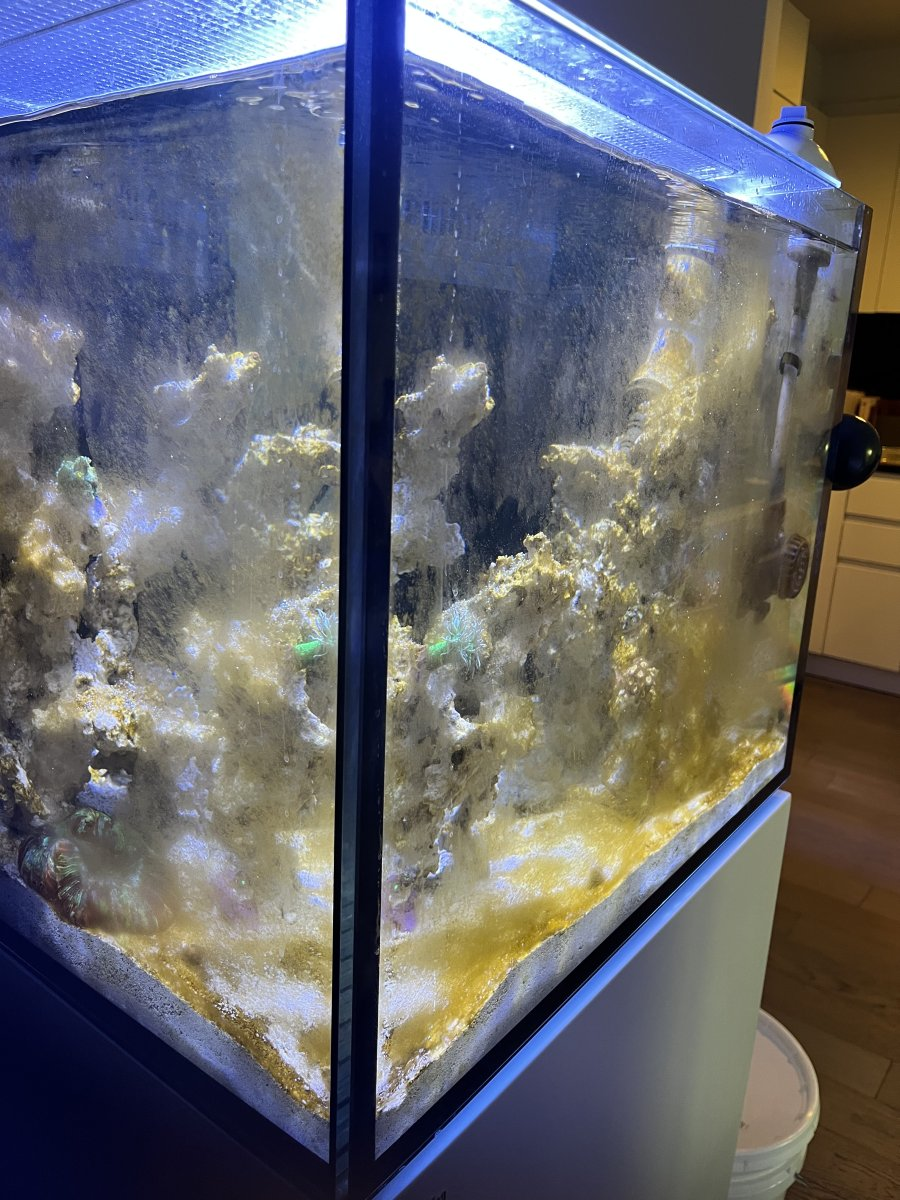

My apartment gets lots of light so I covered it up to stop those pesky photosynthetic organisms from getting a foothold.

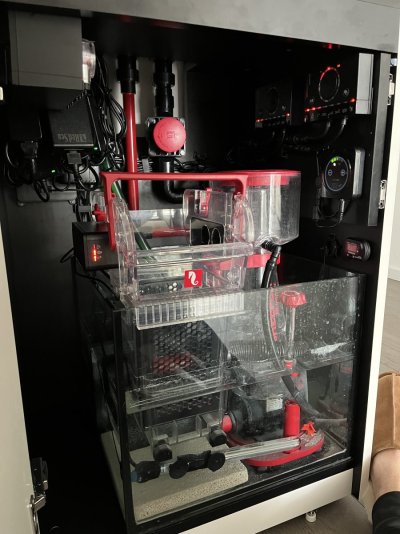

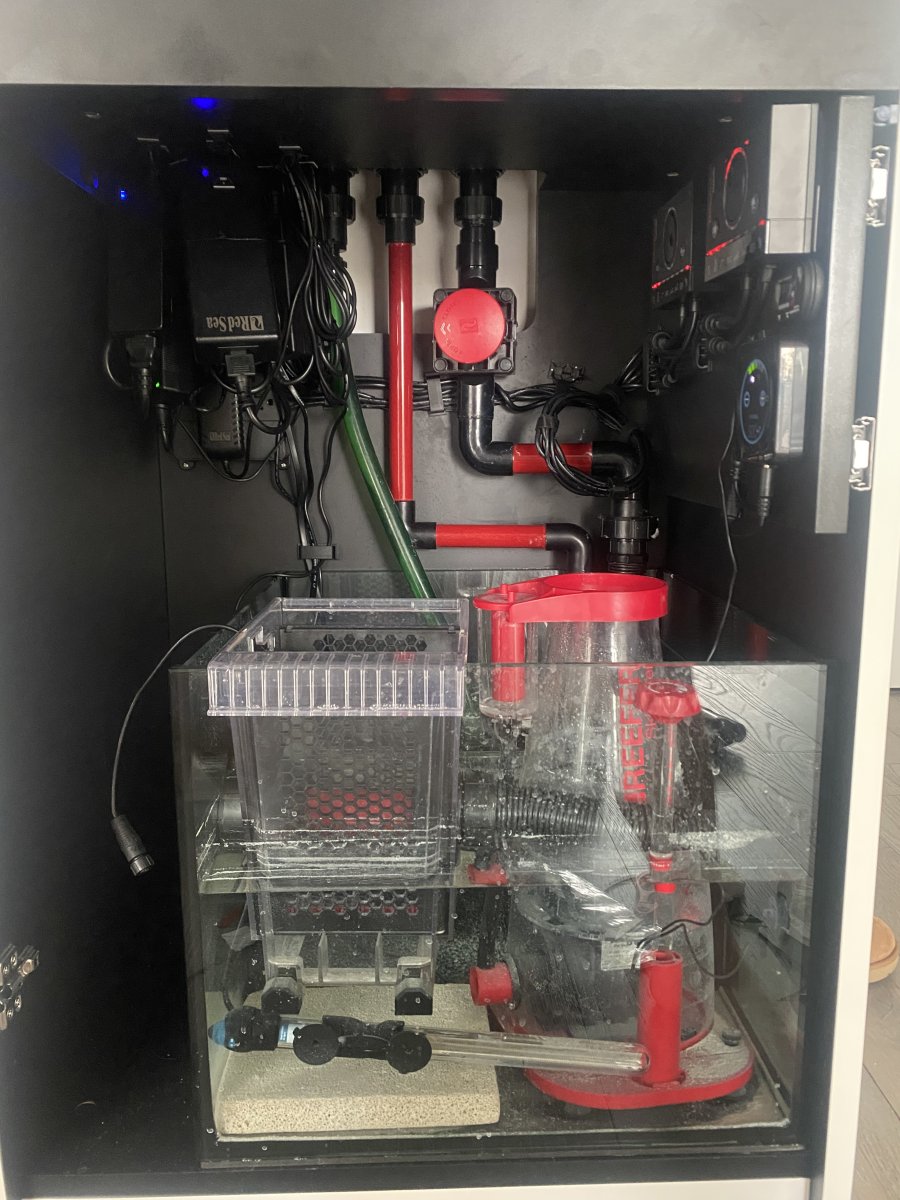

Post cable management, pre ReefDose 4 Installation:

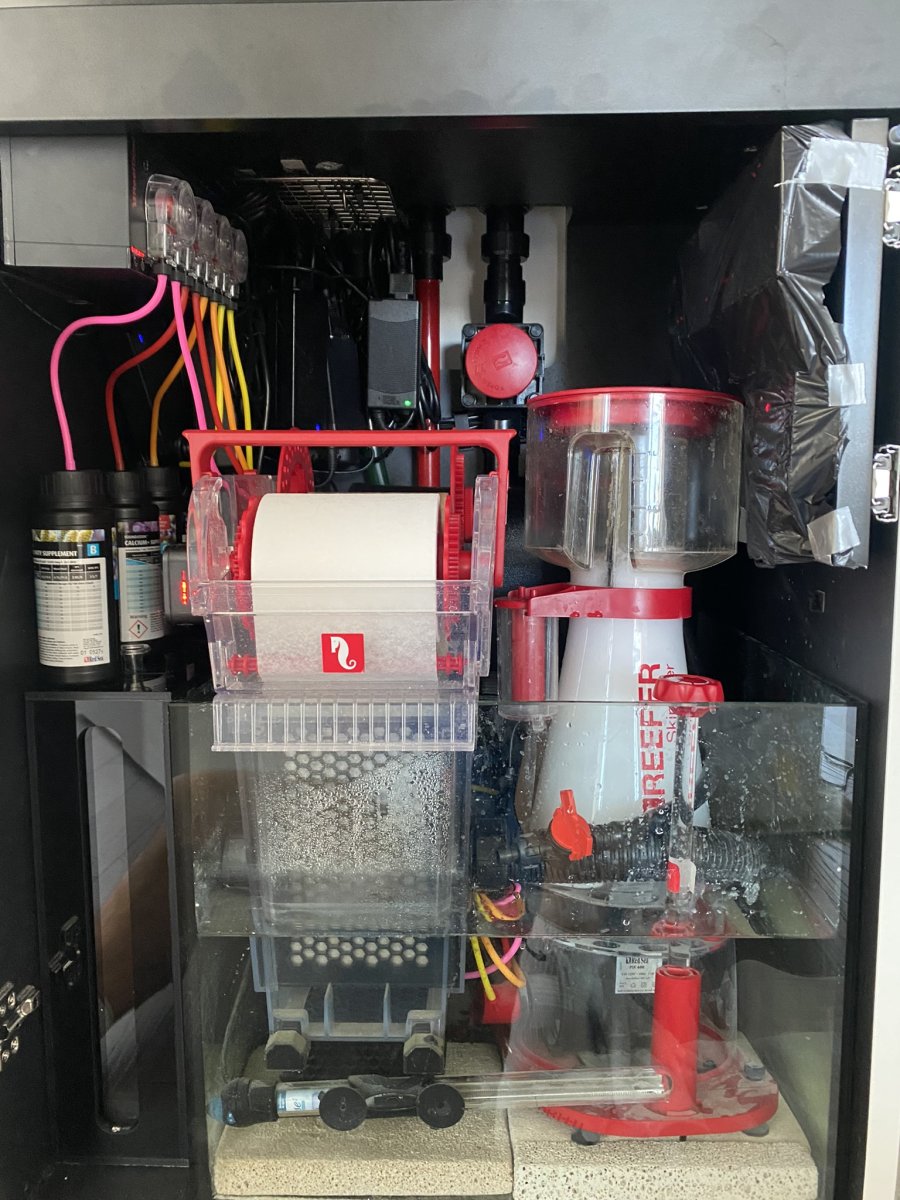

With the ReefDose installed, the ATO revivor will go to the left of the sump, given the specific dimensions I think I'll have to get one custom made, any recommendations?

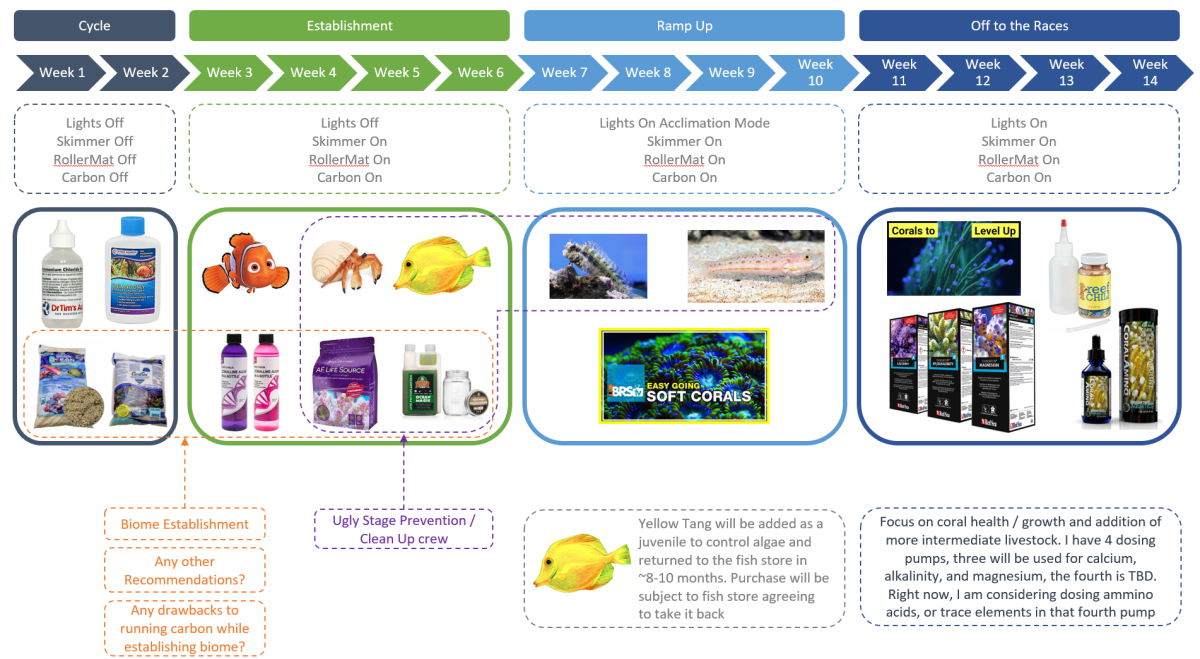

Its time to cycle. I’m using Dr. Tim’s One and Only and Ammonium Chloride to cycle my tank, also I’ll be running the tank at ~85 degrees per Dr. Tim’s recommendation during the cycle though I did not drop my salinity as he suggests. I forgot the bacteria was more effective at lower salinity until after I dropped it in the tank. I’ve outlined my short term plan for the tank in the diagram below. Over the next two months I’m hoping to establish a (relatively) diverse biome and well-rounded Clean Up Crew to ease some of the symptoms of the ugly phase. Any suggestion / advice is more than welcome.

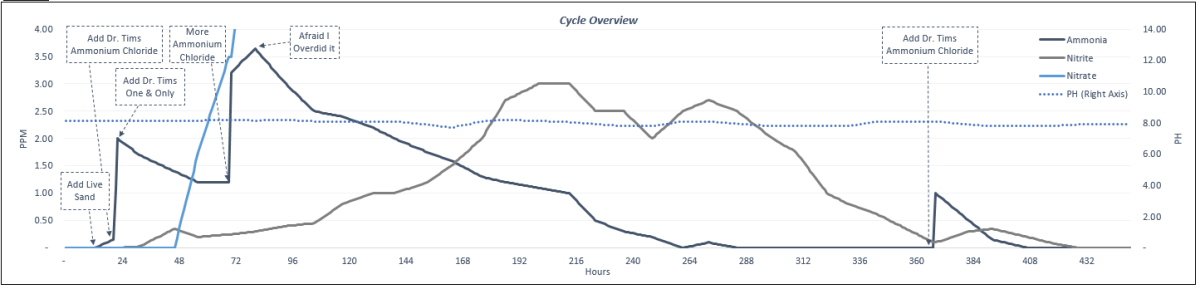

The set up took place ~2 weeks ago, the cycle has been progressing since then and I hope to have a post-cycle update in the next week or so.
Thanks for reading!
TM
Come one come all, welcome to my build thread.
First, a bit about myself. When I was 14 I stumbled into an archaic corner of YouTube where people were keeping reef ecosystems in little glass boxes. I was hooked and immediately wanted to join in the fun. My parents and financial situation on the other hand, disagreed. After much persuading I prevailed and that Christmas I found a 29 galloon BioCube under the tree. Sadly that was the extent of my parent’s generosity. From then on I cut every corner possible to save a few bucks and the result was a bit underwhelming to say the least. Since that first subpar foray into reefing I’ve always wanted to revisit the hobby but the timing was never right. Fast forward a decade n' change, and the prodigal (hopefully) son has returned, this time equipped with a longer attention span and deeper pockets. The name of the game this time around is attention to detail and thoughtfulness. The goal is a bustling mixed reef with a breadth of biodiversity and an different critter at every turn, each one more curious than the last.

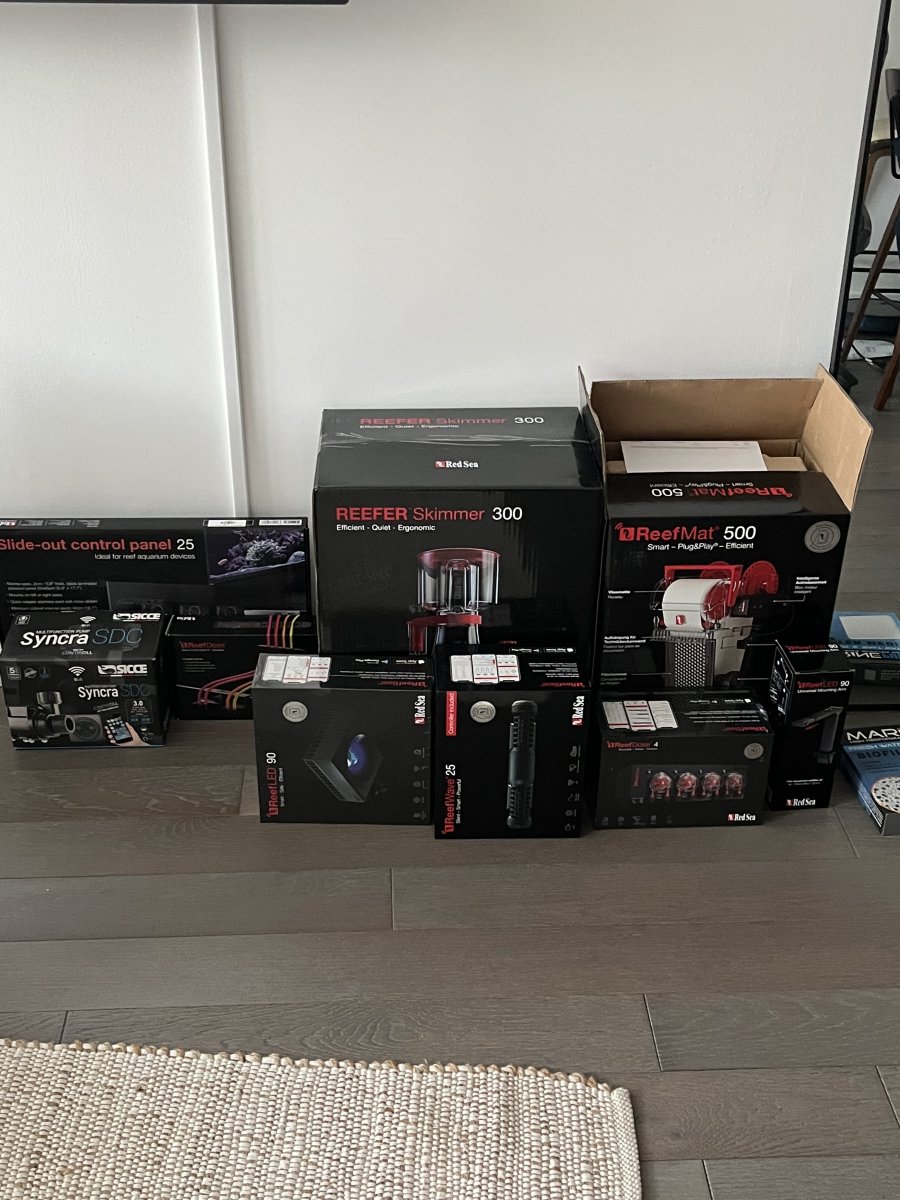

With the introduction out of the way, on to the tank. For equipment I’ve gone with the Red Sea Reefer 170 G2 decked out with the full suite of RedSea hardware. I like the idea of being able to control everything from the ReefBeat app and I imagine the compatibility between RedSea hardware will make life a lot easier. You can also buy bundled hardware with the tank for a discount. Since all the equipment is controllable via ReefBeat I’ve held off on getting an aquarium controller. I plan to get one in Jan 2024 after the tank has exited the ugly phase and graduated to more delicate SPS coral. Until then, I don't think the incremental benefits are worth the price tag considering I can control everything via the ReefBeat app or smart outlets. Happy to hear everyone’s thoughts on this, worst case I just double down on controllability. See below for the full equipment list:
- RedSea Reefer G2 170
- ReefLED 90 Lights
- Reefer AC Skimmer 300 - The new DC smart version (ReefBeat controllable), looks fantastic, will probably swap it out once its released and my credit card bill comes down a bit J
- Two ReefWave 25 - these have been superb, super intuitive, easy to control from the ReefBeat App, very dynamic
- ReefDoes 4
- Reefmat 500 - I didn’t realize this has a media chamber for activated carbon, nice little surprise. Also very dynamic and easy to control via ReefBeat
- Sicce Syncra SDC 3.0 Return Pump - superb, easy to control from the app, also nice that it monitors temperature
- Redsea 3-in-1 ATO+ system - preordered, Redsea said they hope to ship them out in march
- Milwaukee PH Monitor
With all the hardware secured, it’s time to aquascape. I had a specific vision for the aquascape (see diagram below). The idea was to create an even balance of positive and negative space with focal points at each of the four intersections implied by the rule of thirds (think the 4 intersections on a single side of a rubix cube). I also wanted there to be various sight lines through the rockwork to increase depth. I followed BRS’s NSA aquascaping tutorial (). I started off with 40 pounds of Marco Dry Rock and crushed it into smaller, more workable pieces with a hammer and chisel. I then slowly built up from two medium sized Marco Foundation Rocks using a combination of Extra Thick Gel Supper Glue and Insta-Set to secure pieces together. It worked wonderfully. Once I had the whole thing put together I went over the joints with E-Marco Aquascaping Mortar to guarantee a lasting bond. Using BRS General Bonding Glue I covered the mortar with Marco sand (Marco NSA Poweder) to give the scape a seamless, natural look. The whole process took about a day but I had a blast. Admittedly I got a bit carried away making crevices and overhangs but I always knew I didn’t have the restraint for the minimalistic aesthetic.
Here's the 1:1 PVC frame I built to guide me while I played my hand at god, creating the world some (hopefully lucky) critters will call home. This was incredibly helpful and I would really recommend this to anyone taking the NSA aquascape route.
The rubble before I smash it to bits, you can see how the foundation rocks are machined flat at the bottom so subterranean animals don't knock over your scape:
Not a bad place for some aquascaping:
All broken into rubble:
A work in progress:

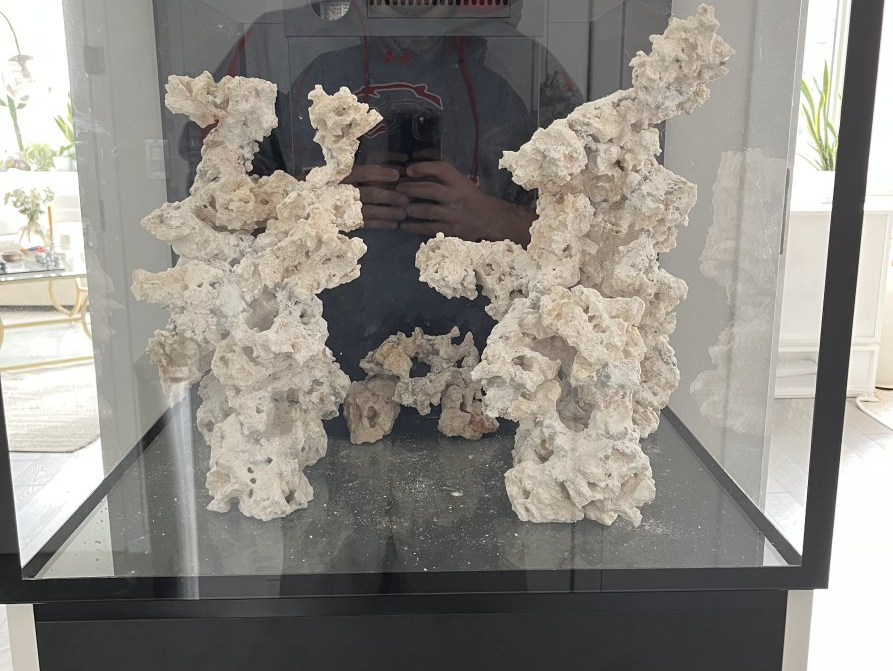

And here's the final product:
Having finished the aquascape It was time to set up the tank. The plumbing and installation of everything was pretty seamless. I was glad I stuck with RedSea equipment, integration of things like the roller mat was very intuitive. Unsurprisingly, the cable management was the most tedious part of the whole thing.

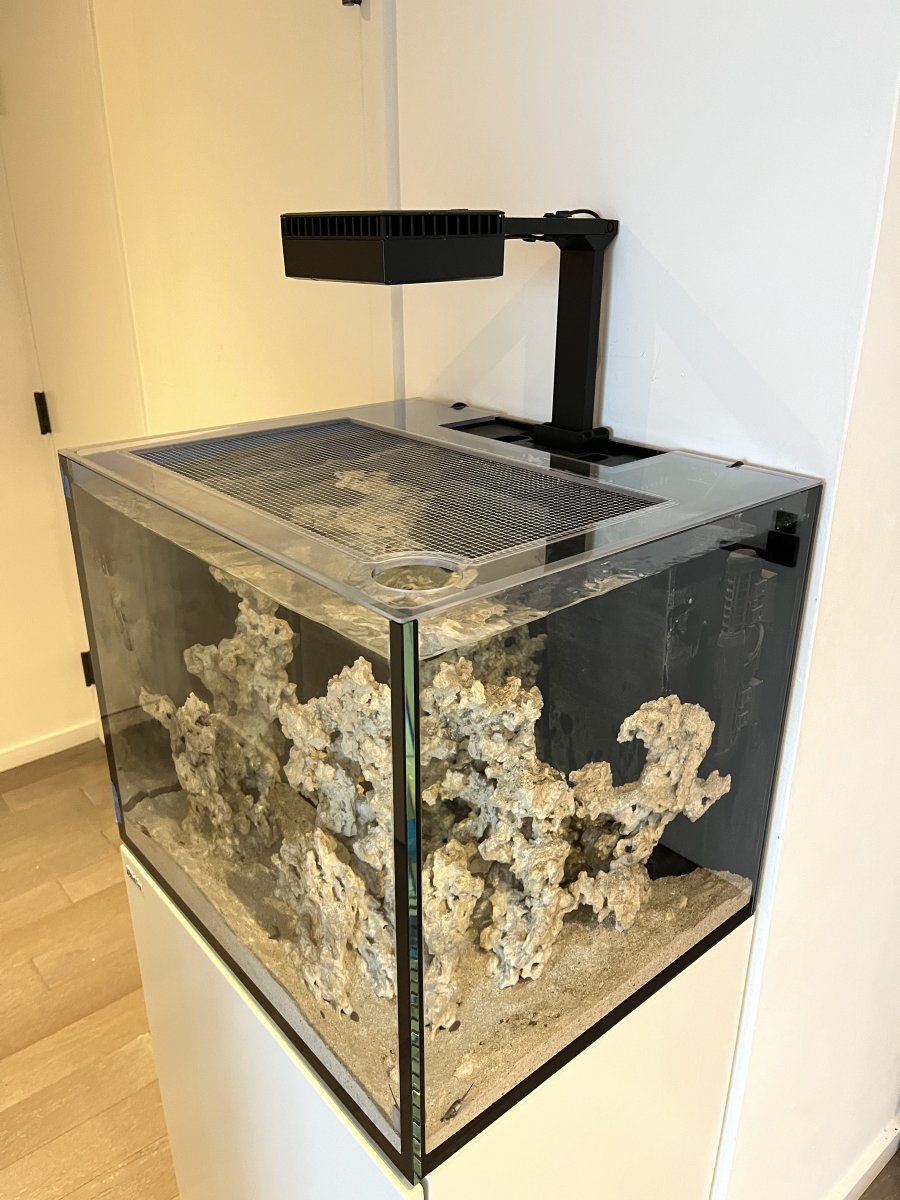

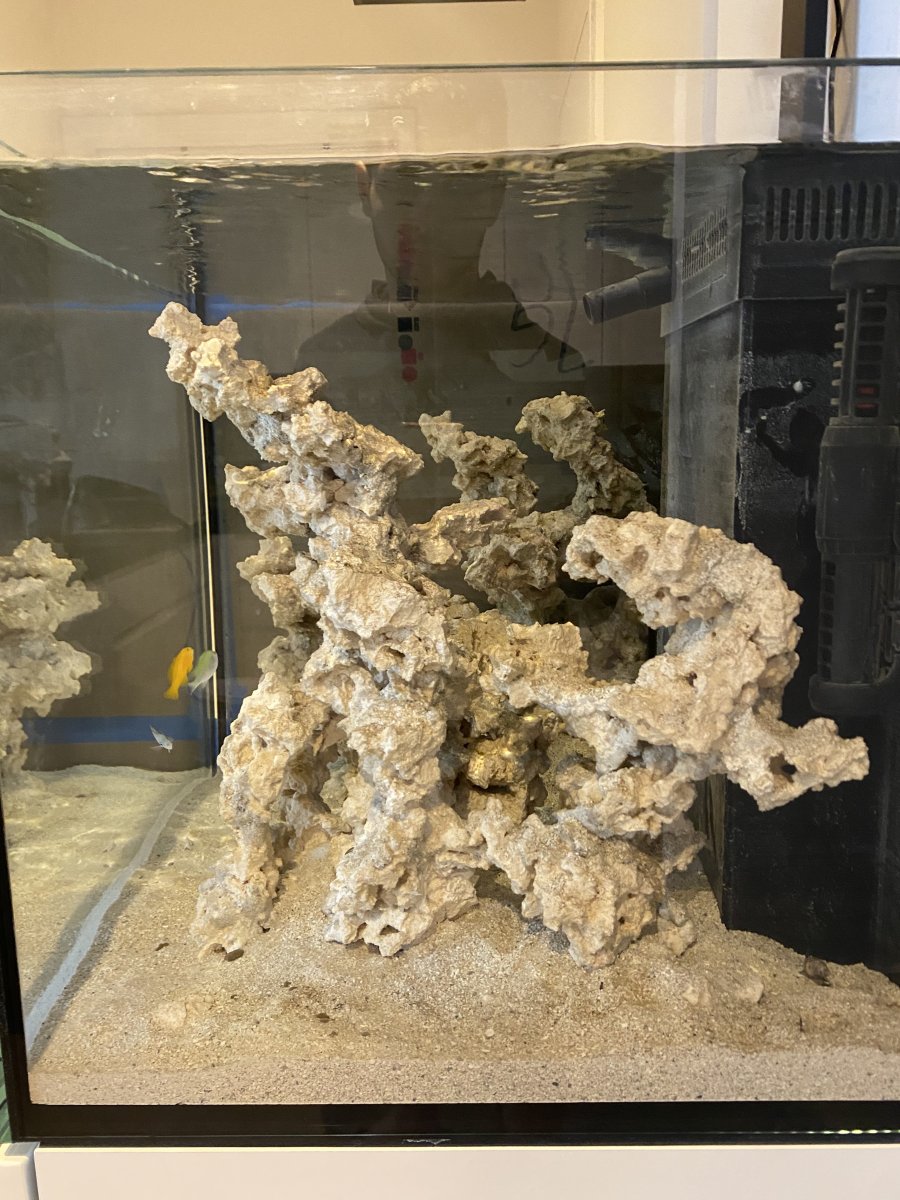

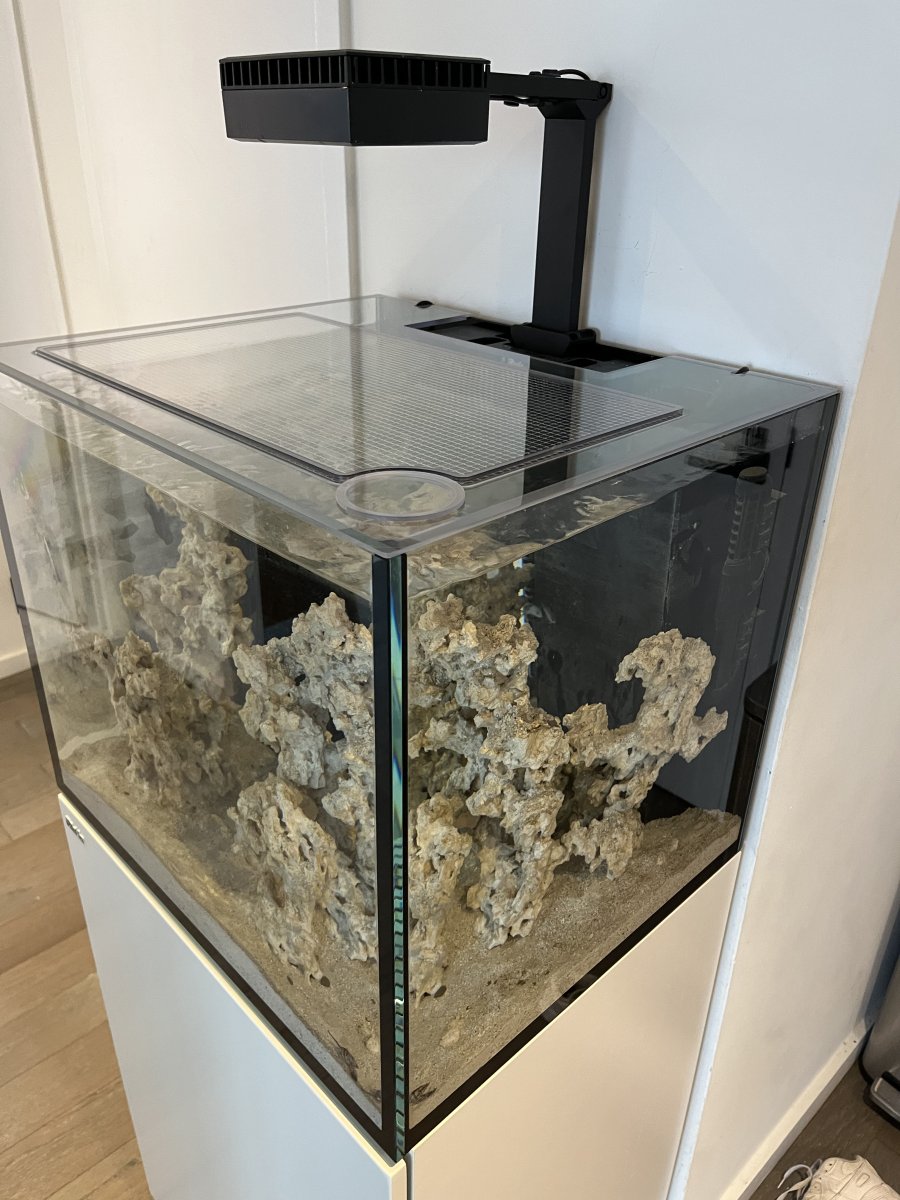

Here it is, disregard the sandy glass!
My apartment gets lots of light so I covered it up to stop those pesky photosynthetic organisms from getting a foothold.

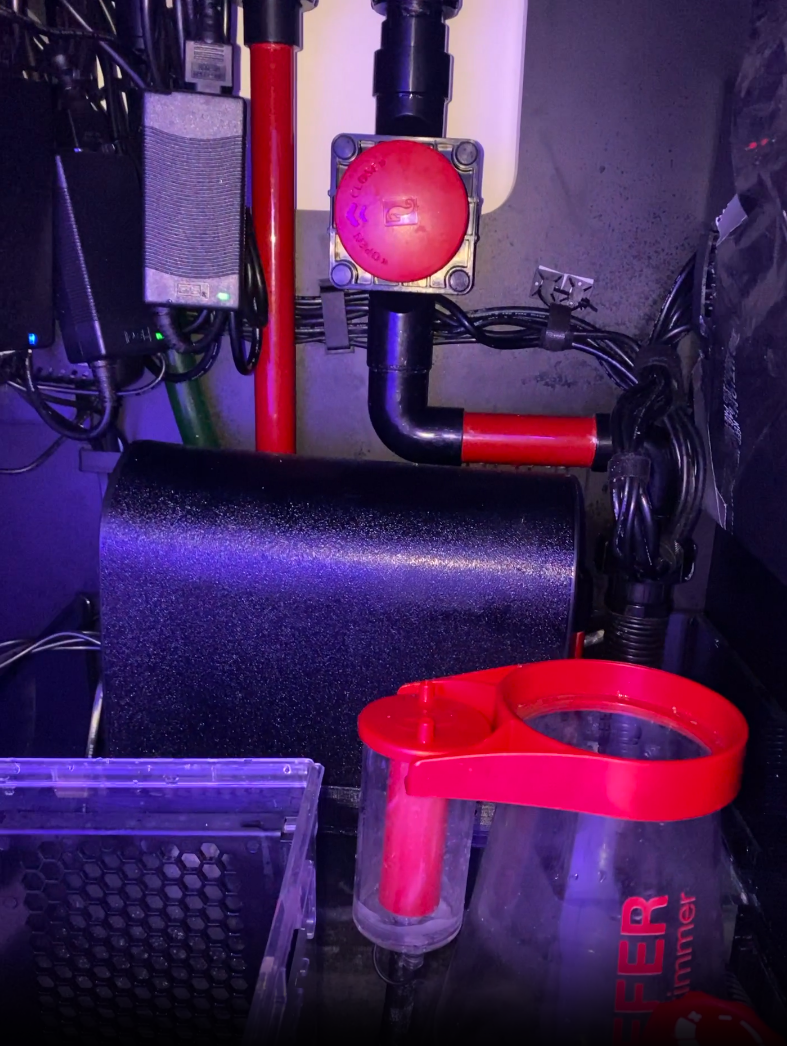

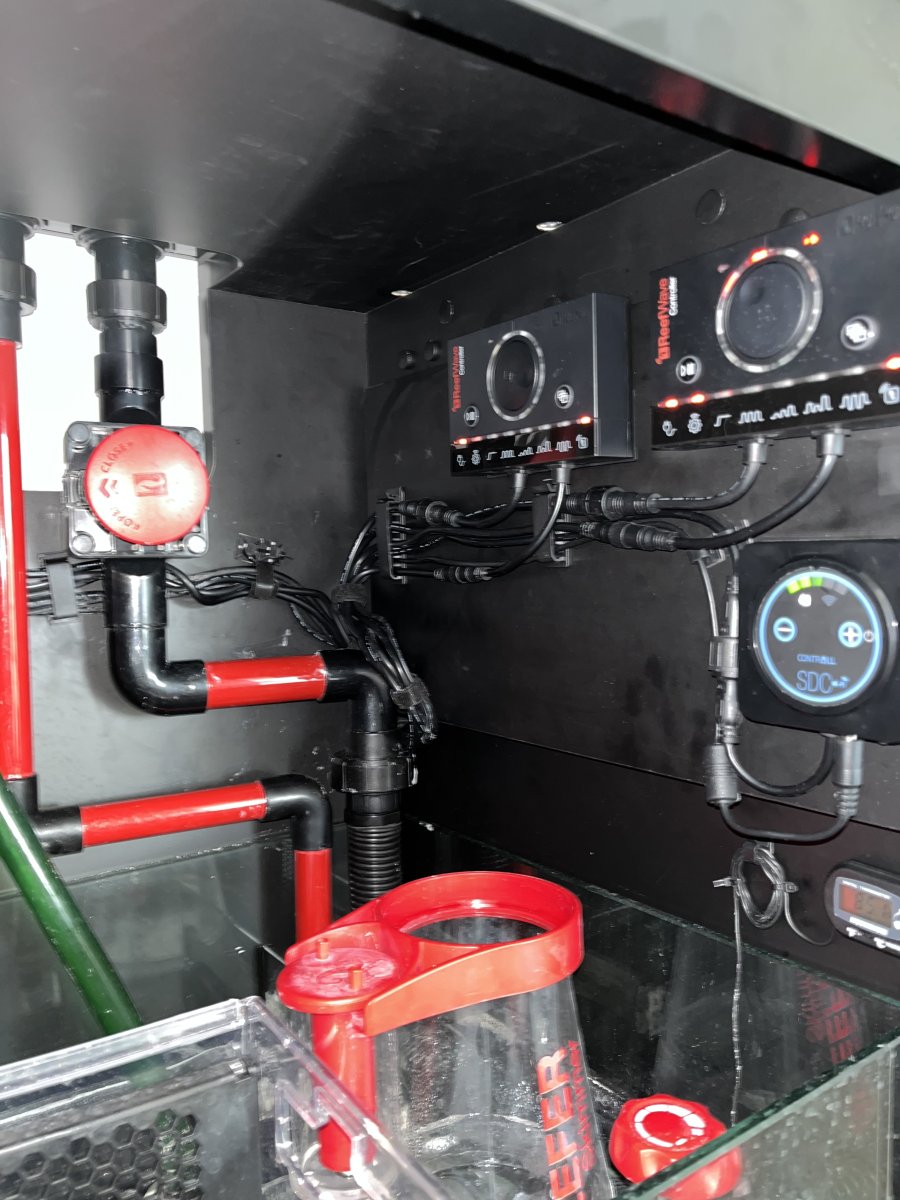

Post cable management, pre ReefDose 4 Installation:

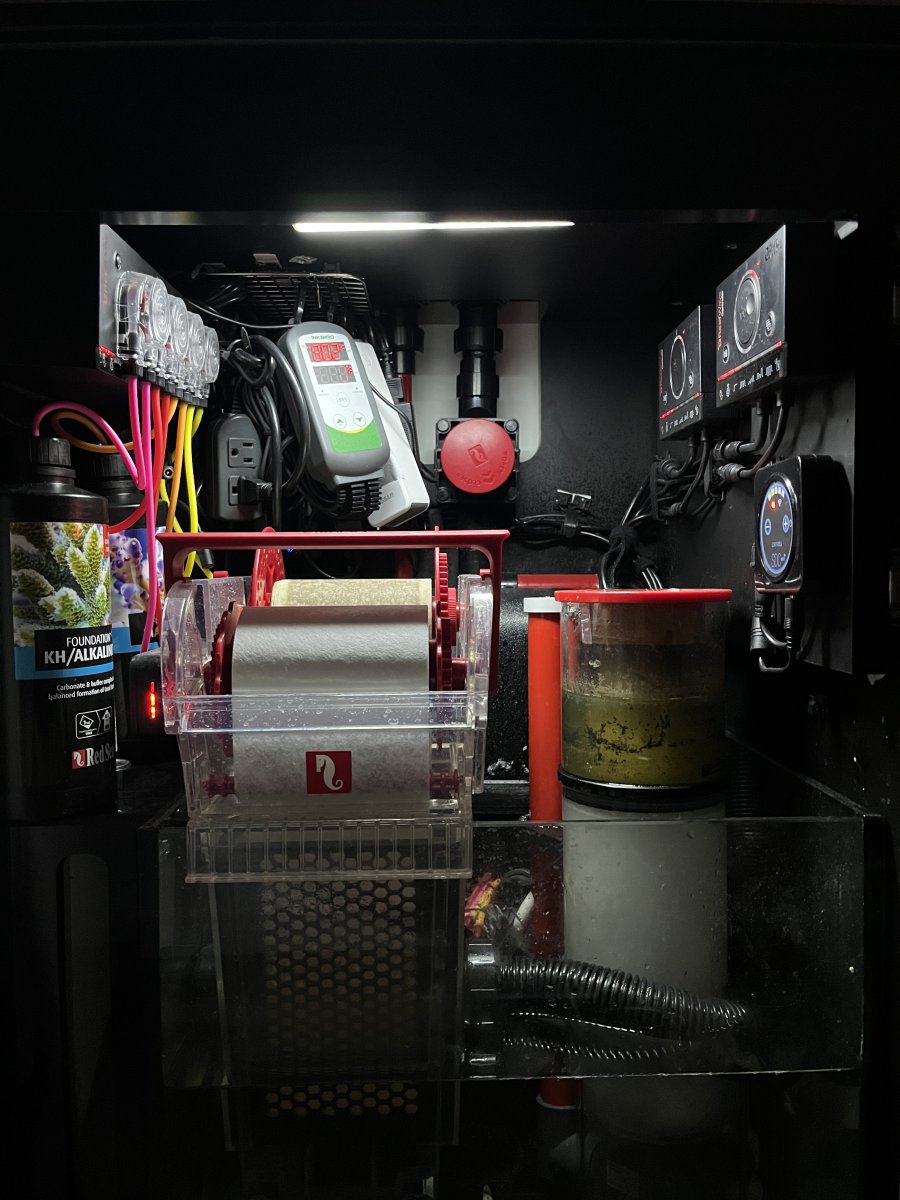

With the ReefDose installed, the ATO revivor will go to the left of the sump, given the specific dimensions I think I'll have to get one custom made, any recommendations?

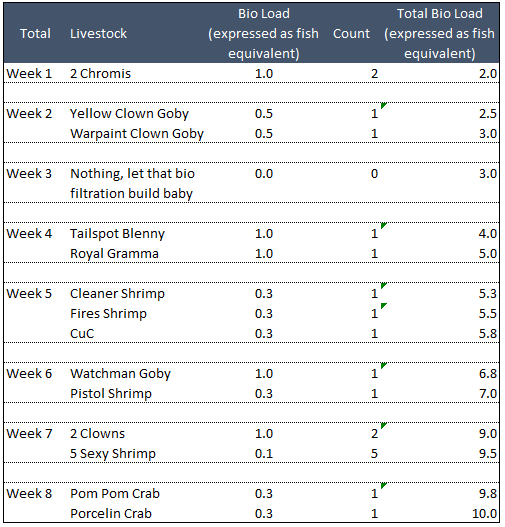

Its time to cycle. I’m using Dr. Tim’s One and Only and Ammonium Chloride to cycle my tank, also I’ll be running the tank at ~85 degrees per Dr. Tim’s recommendation during the cycle though I did not drop my salinity as he suggests. I forgot the bacteria was more effective at lower salinity until after I dropped it in the tank. I’ve outlined my short term plan for the tank in the diagram below. Over the next two months I’m hoping to establish a (relatively) diverse biome and well-rounded Clean Up Crew to ease some of the symptoms of the ugly phase. Any suggestion / advice is more than welcome.
The set up took place ~2 weeks ago, the cycle has been progressing since then and I hope to have a post-cycle update in the next week or so.
Thanks for reading!
TM
