Up and coming:

Current FTS:


Explanation of my feeding system:

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

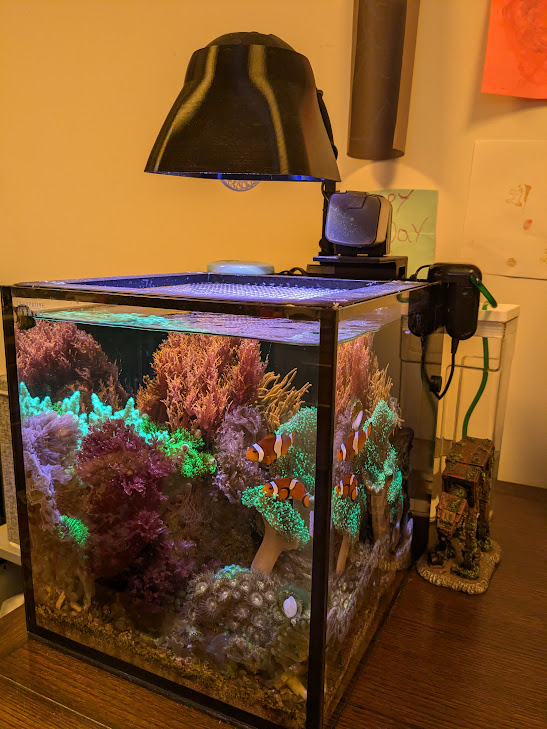

Finally happening! I am merging my office IM Nuvo 10g and home Fluval Evo 13.5g into a new Office IM Nuvo 40L AIO!


This was a long and hard decision. I waffled between the SR60, the SR80, the 112INT and even the SR120, because I dream of having tangs. And most recently with the massive sale on EXTs, I did an in depth cost/benefit analysis of the 40L EXT. In the end the 40L AIO and the 40L EXT were about the right size for my office and with a budget I could swallow. So why the AIO instead of the EXT? Well, the idea of having sump flexibility really appealed to me, but all things considered, I thought that the AIO had the better safety features with the emergency overflow and pumps within the same circular system--and safety is paramount to me keeping a tank in my office! One major spill, and it will be O-U-T out!


Space reserved for more build details:
  • Tank: Innovative Marine Nuvo 40L AIO
  • Stand: Innovative Marine black APS stand
  • Light: 3x Noopsyche K7 Mini
  • Pump: 2x MightyJet 538gph DC return pumps
  • Powerhead: Maxspect xf330 gyre pump
  • ATO: IM TI Hydrofill + 5g carboy
  • Skimmer: NuvoSkim mid-size skimmer None
  • Filtration: IM Custom Caddy w/floss + carbon + phosguard if necssary; Intank floss holder
  • Heater/fans: IM Helio 200W titanium heater/controller as primary wih Finnex 300W titanium element + USB fans connected via Inkbird as failsafe

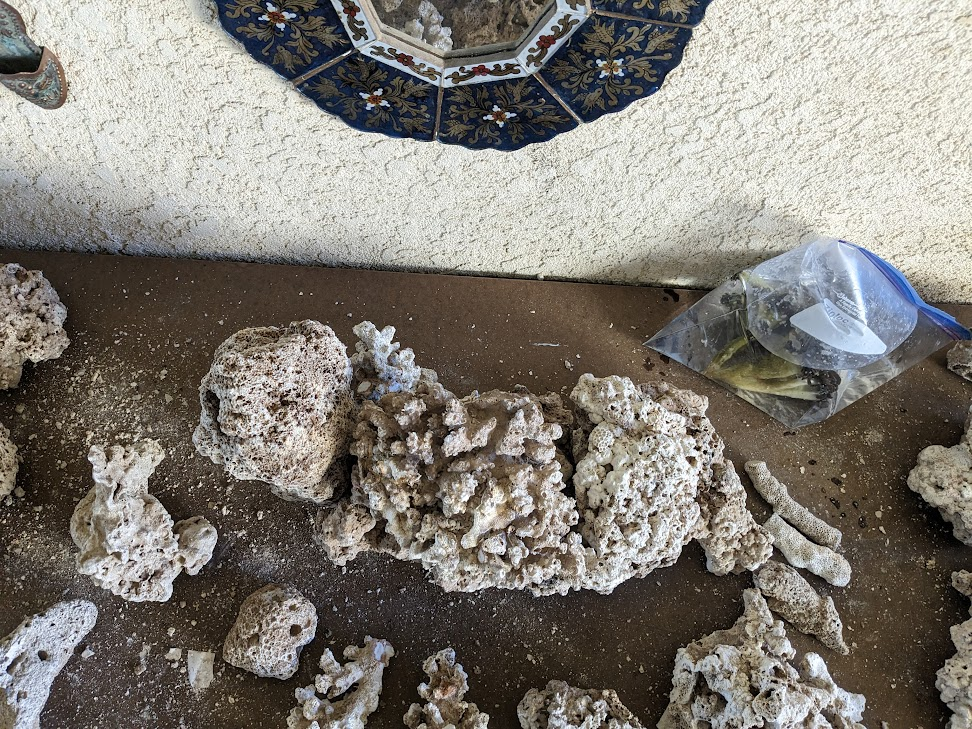

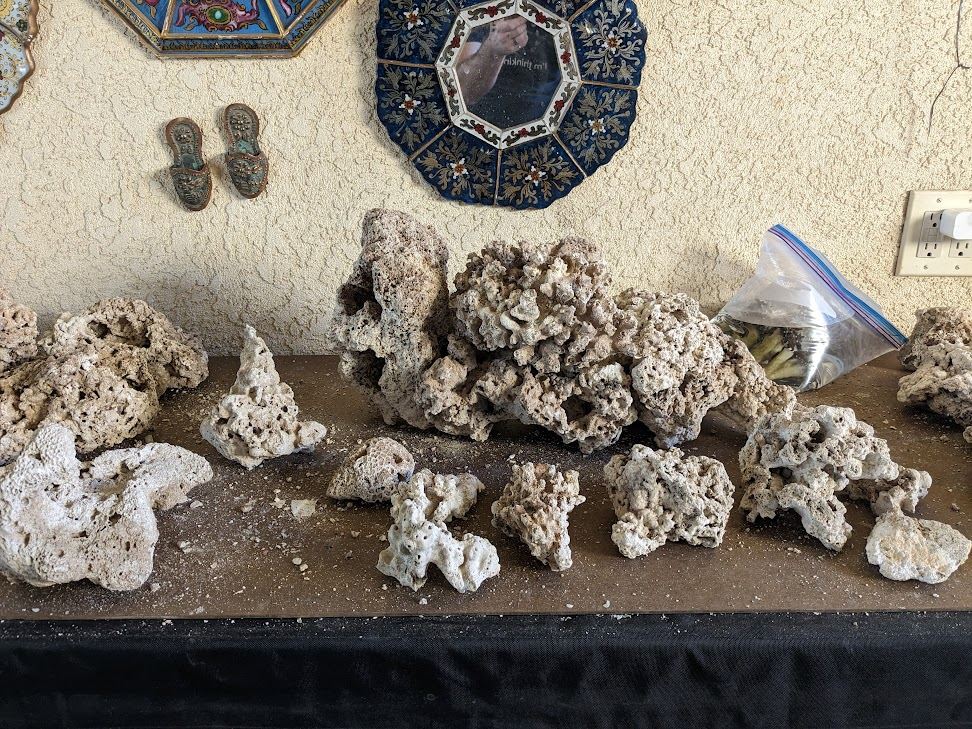

  • Rocks: 40lb old school rock from Fiji and Marshall Islands (pics below, this stuff is super light and porous, not heavy solid bricks!) seeded with rock rubble from Tampa Bay Saltwater (from my IM 10g AIO chambers) + all of the TBS rocks in my Office IM Nuvo 10g

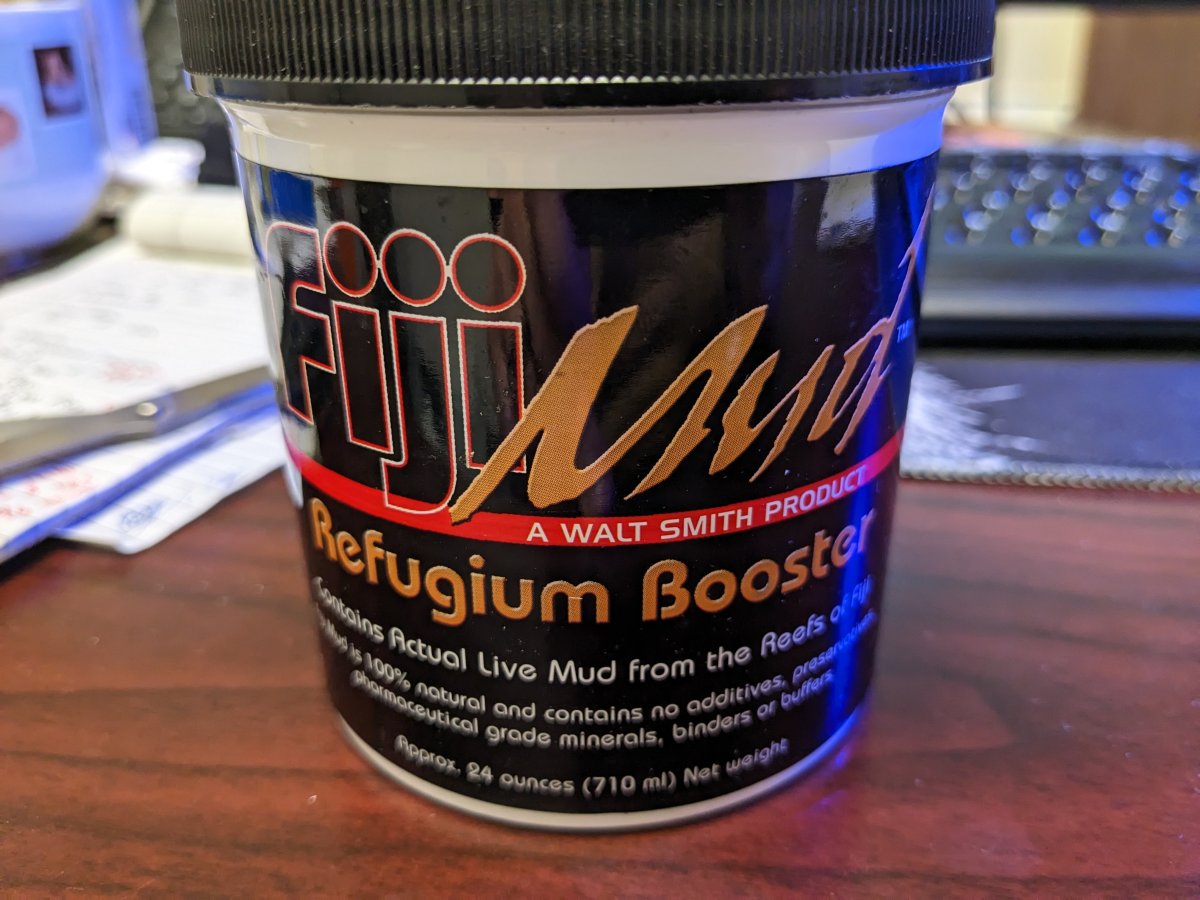

  • Sand: Aragonite special grade + seeded with Fiji Mud
  • Automation: Reef Factory dosing pump for All-For-Reef; Mini fridge + Reef Factory dosing pumps for Reef Nutrition liquid food
  • RODI system: RODI buddy
  • Salt: Fritz blue box




More details to follow

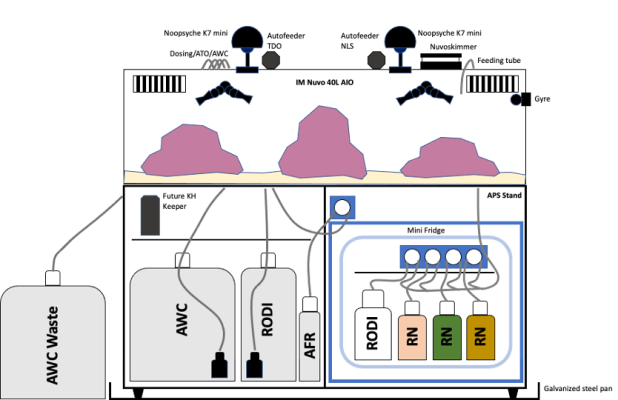

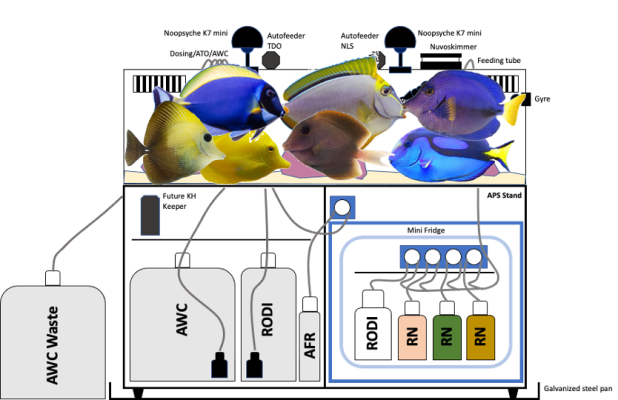

For now, here is the visual representation of my buid plan:



It will include a mini fridge with dosing pumps for automatic Reef Nutrition liquid food feeding (no more weekend fasting for my fishies/inverts). Will continue with dosing AFR. I opted against an AWC system since there is too much risk of overflow in an office setting. If there is a failure in the ATO, it should not be enough to overflow the tank, but if it does, then the overflow will first go into a galvanized steel pan under the tank, which should hold 4 gallons before spilling onto the office carpet.


And of course, my stocking plan:


Just kidding. Stocking plan is still a work in progress. Currently:

Fish in 40:
Tailspot Blenny, Ecsenius stigmatura
Exquisite Firefish, Nemateleotris exquisita
Yasha shrimp goby, Stonogobiops yasha
Blue star leopard wrasse, Macropharyngodon bipartitis
Yellow "coris" wrasse, Halichoeres chrysus
2x pink streak wrasses, Pseudocheilinops ataenia

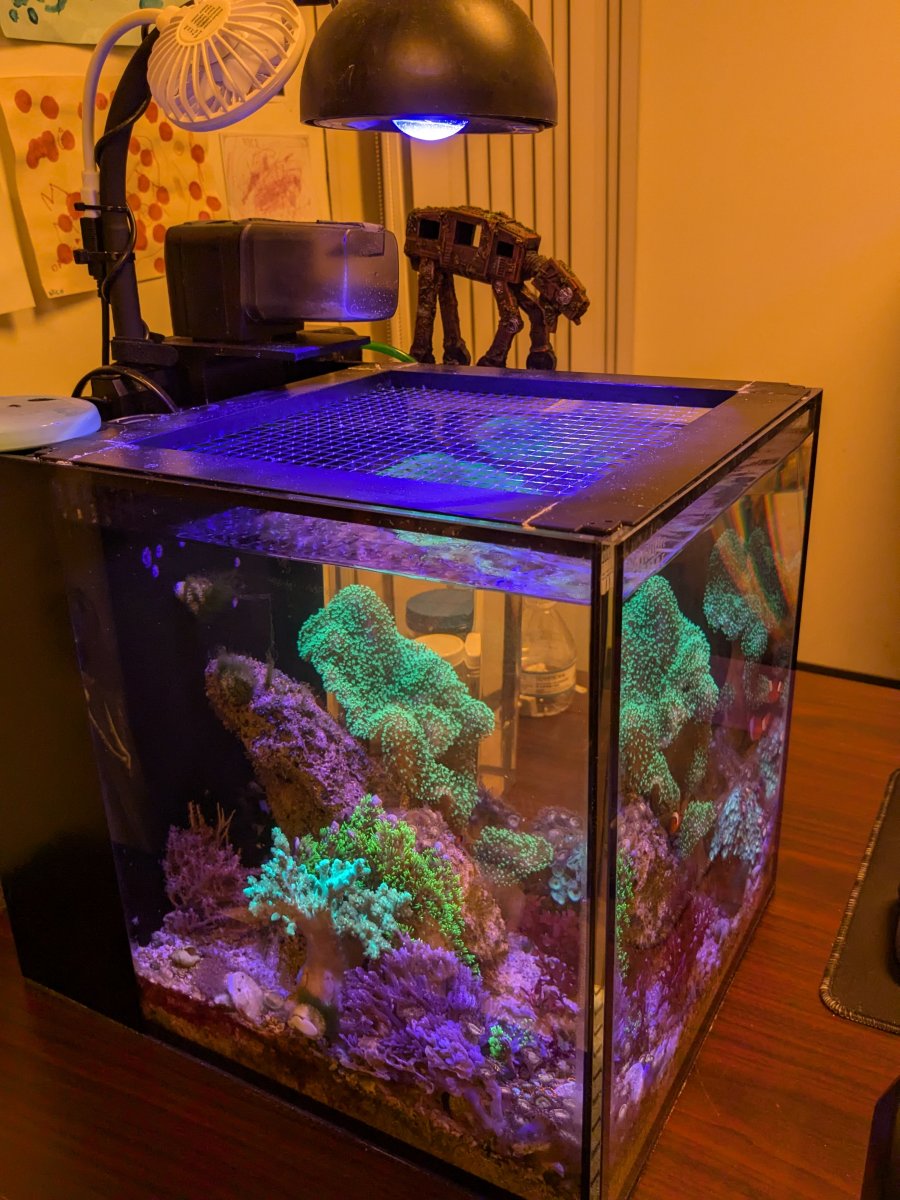

Fish in the 10:
2x occelaris clowns, Amphiprion ocellaris

Wishlist:
Ruby longfin fairy wrasse, Cirrhilabrus rubeus
Exquisite fairy wrasse, Cirrhilabrus exquisitus
Lubbock's fairy wrasse, Cirrhilabrus lubbocki
Eight line flasher wrasse, Paracheilinus octaenia
Carpenter's flasher wrasse, Paracheilinus carpenteri
Royal pencil wrasse, Pseudojuloides severnsi
Black leopard wrasse, Macropharyngodon negrosensis
Babi wrasse, Halichoeres pallidus
Radiant wrasse, Halichoeres iridis

In Memorium:
Dusky fairy wrasse, Cirrhilabrus brunneus

Crabs/False Crabs:
Spotted anemone crab
Blue porcelain crab
Pitho crab

Shrimp:
1x sexy shrimp
Randall's pistol shrimp

Nems:
Black Widow BTA
Rainbow BTA
7x RFAs + babies!!

Coral (almost all of these are already in tanks):
Zoas galore
Hammer
Octospawn
Torch
Gorgonians
Branching GSP
Candy Cane
Duncan
Monti setosa
Monti cap orange
Monti cap mystique
Mint potato chip pavona
Green cyphastrea
2x encrusting montis
Green branching psammacora
Teal Birdsnest
Pink Birdsnest
Grafted monti digitata
Bubble gum monti digitata
Blue monti digitata
Garf bonsai
Goldenrod anacropora
Green acropora
Slimer acropora
Milka stylophora
Xmas favia
Pink Nepthea Koji Wada
Long Polyp Toadstool
Space invader pectinia
Orange fungia plate
Fat Head Dendro
Button Scoly
Trachy
Lobo
Green carpet mushroom
Fire Rhodactis mushroom
Green Rhodactis mushroom
Dragon lady bounce mushroom
Sunkist bounce mushroom
Lava lamp mushroom
Green Alveopora
Purple Blasto wells
Red Blasto merl
Tiffany Rim Acan

In the 10:
RBTA
Toadstool
Green death zoa rock
Branching GSP
Green sinularia
2x unnamed gorgonian
Pom Pom gracilaria
Short and Long Branch Codium

Sponges/tunicates:
Hitchhikers from TBS rocks

CUC:
Lots of different types of ceriths and LOADs of dwarf ceriths
Different types of nerites, but lots of virgin nerites because they look cool
Dwarf and regular Trochus
Astraeas
2x conches
2x money cowries
Worms, lots of worms, peanut worms, spaghetti worms and such.


Enjoy and ask any questions you like! I will try to keep this much more updated with photos and progress! PXL_20230329_003316854.jpg 1680770584989.png 1676190102682.png 1676190562726.png 1685074357732.png


Linkouts for me:
Standoffs: https://www.reef2reef.com/threads/q...ex-arm-bracket-too-short-for-your-aio.977583/
Food: https://www.reef2reef.com/threads/jojos-office-im-nuvo-40l-aio.966484/post-11698277
Hitchhikers: https://www.reef2reef.com/threads/jojos-office-im-nuvo-40l-aio.966484/post-11425769 1686875261640.png 1689642875164.png 1691191522495.png 1701280611266.jpeg 1709330572921.jpeg

Last edited:

Fish Styx

In Cod We Crust
View Badges
Joined
May 10, 2020
Messages
6,125
Reaction score
32,310
Location
Washington, DC Metro
Rating - 100%
1   0   0
OP
OP
JoJosReef

JoJosReef

10kW Club member
View Badges
Joined
Sep 27, 2021
Messages
11,791
Reaction score
40,425
Location
Orange County, CA
Rating - 0%
0   0   0
The planning for this tank looks good!! I can't wait to see it!

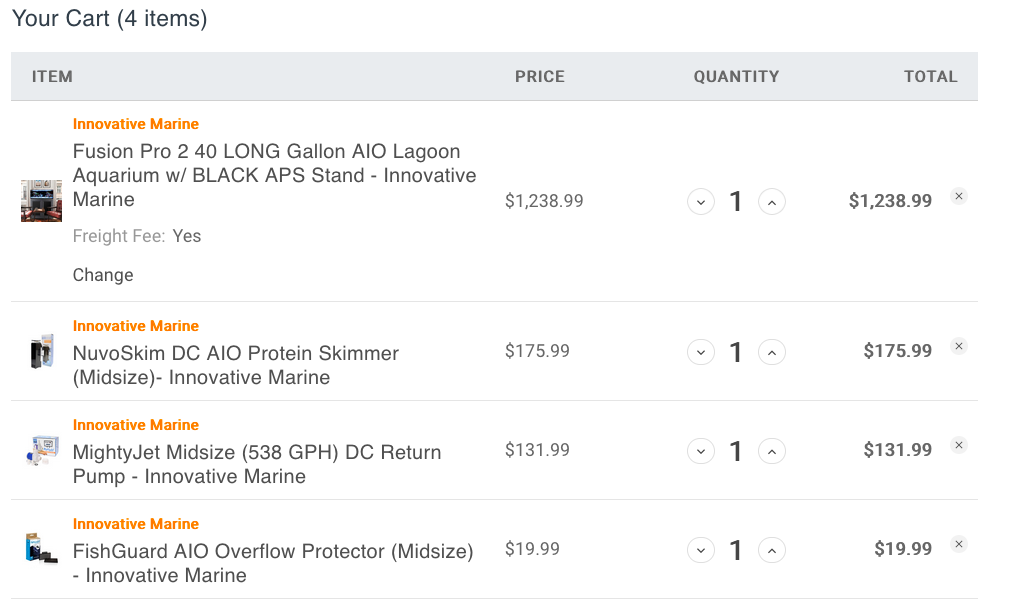

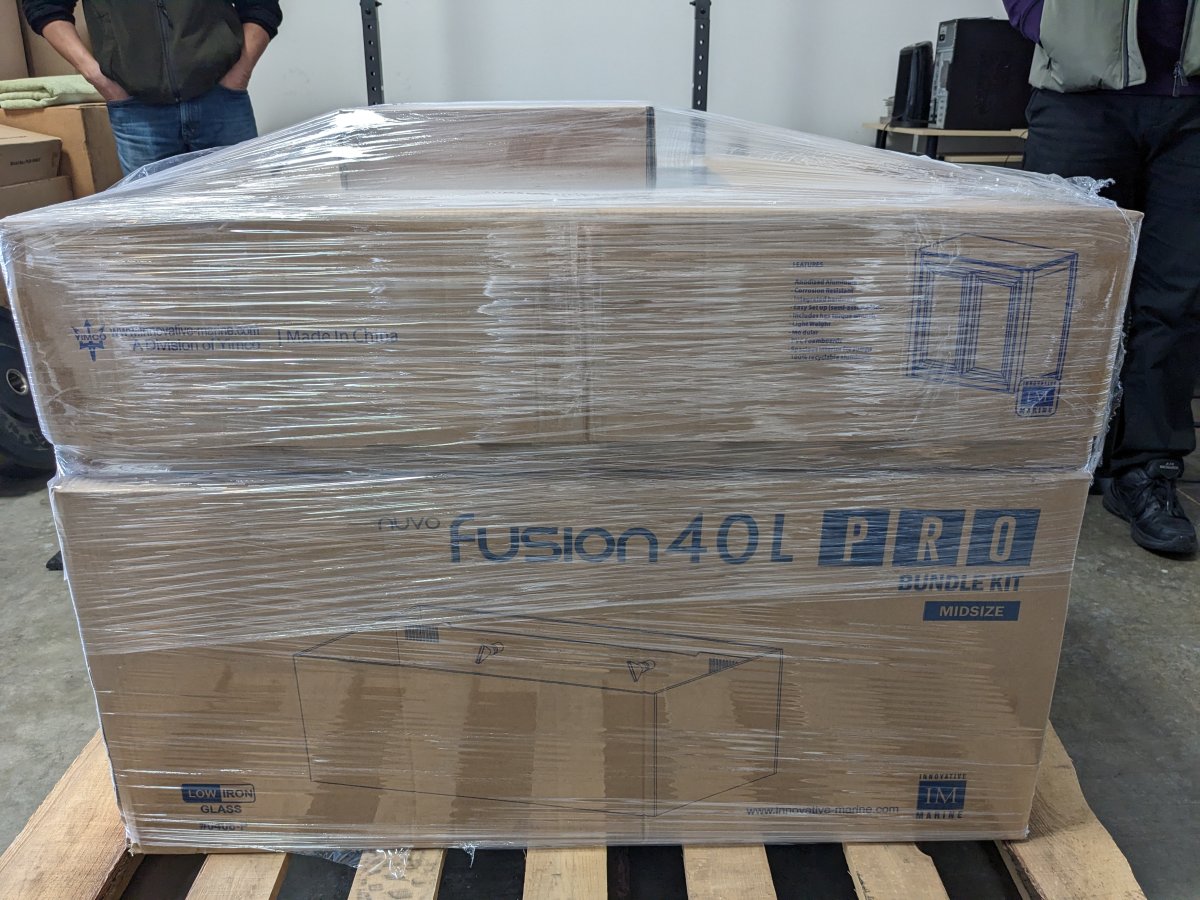

Thanks! Haven't gotten notice of the tank shipping yet, but other equipment is on the way.

Next, ordering dosing pump, mini fridge, salt mix brute can. Also the steel pan and other emergency leak/overflow measures.

Still working out which gyre to get and heater. Other components as well to automate feeding. Lot of prep!

OP
OP
JoJosReef

JoJosReef

10kW Club member
View Badges
Joined
Sep 27, 2021
Messages
11,791
Reaction score
40,425
Location
Orange County, CA
Rating - 0%
0   0   0
Getting some more corals/nems ready for the big tank! This is a new nem sitting in a cup in my Evo. So now I have a black widow in my IM 10g (in a cup) and this "whatever-it's-pretty" nem in my Evo:


Running out of space in these nanos fast!!

Setup starts next week when I get the steel pan to go under the APS stand:


OP
OP
JoJosReef

JoJosReef

10kW Club member
View Badges
Joined
Sep 27, 2021
Messages
11,791
Reaction score
40,425
Location
Orange County, CA
Rating - 0%
0   0   0

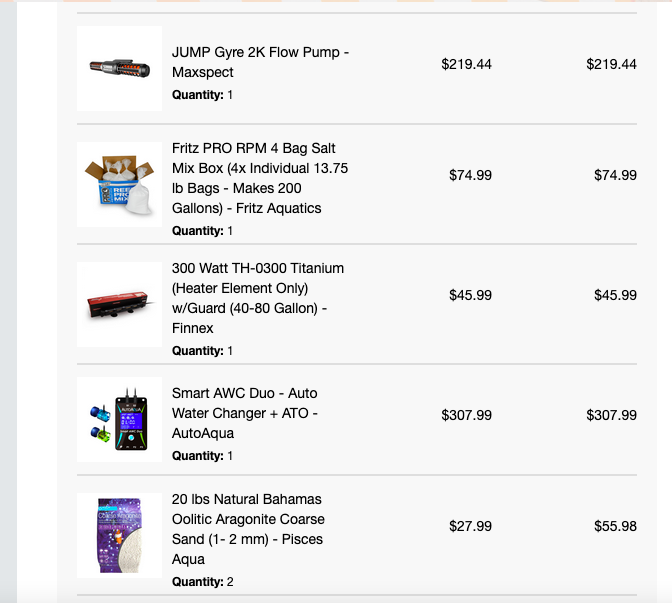

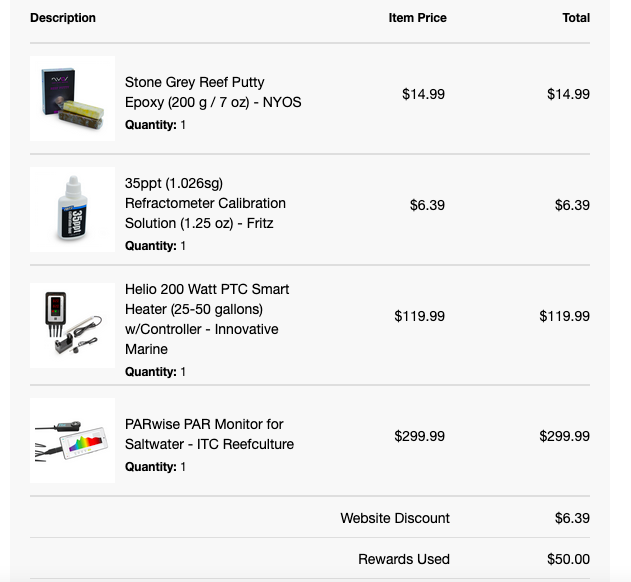

Few more items on the way!


I have the Finnext Titanium that will go with the Inkbird, but I am now planning to use the Helio as the primary heater set to 77 degrees with inkbird kicking in at 78 degrees for the fans, and then I will have a low temp of 75 degrees on the Inkbird to turn on the Finnex heater as a backup in case the Helio fails.

The PARwise is so that I don't have to drive half an hour and back to borrow an Apogee every time I need to check PAR, which might be more often now, as I want to dial in the lights better on this tank and eventually get set up for clams.

Next purchase will be the dosers once I decide on Red Sea vs. Reef Factory dosers...

OP
OP
JoJosReef

JoJosReef

10kW Club member
View Badges
Joined
Sep 27, 2021
Messages
11,791
Reaction score
40,425
Location
Orange County, CA
Rating - 0%
0   0   0

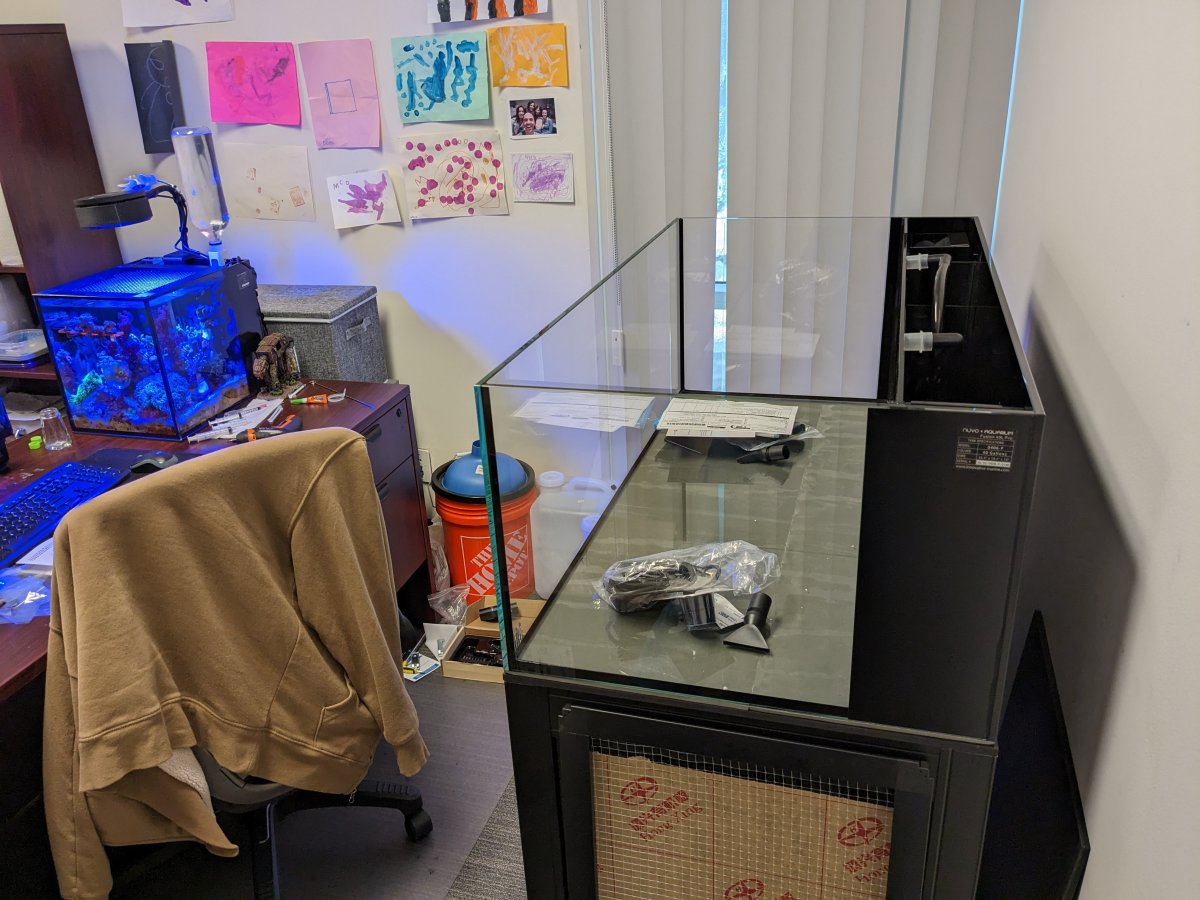

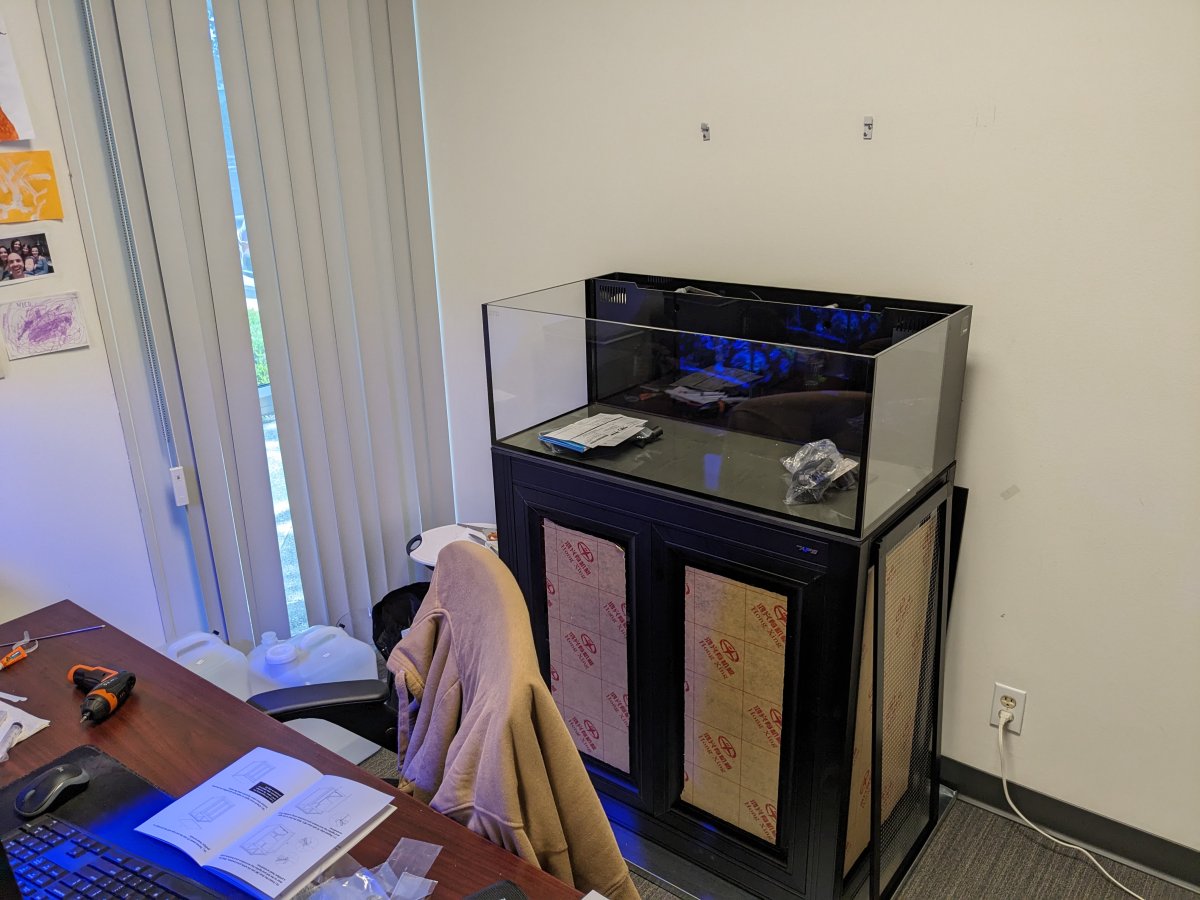

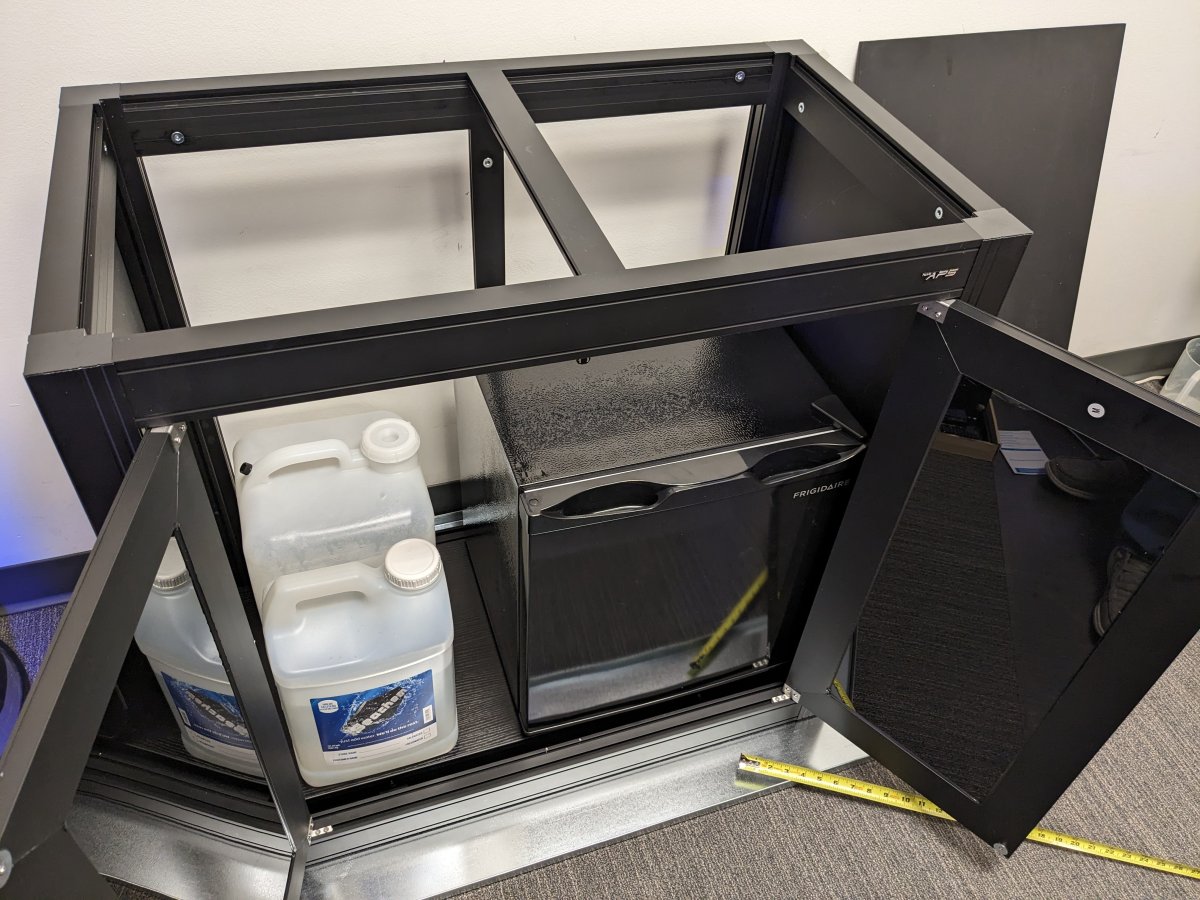

Baby steps. Got the stand and tank set up at least! I'm not 100% pleased with the APS stand. The particle board "floor" of the stand is super flimsy, and it is not really set up to maximize the "sitting space" inside the stand. I ended up taking off the bottom magnets that were intruding on the interior of the cabinet and put the wooden shelf on the bottom, because I want to load up heavy stuff like AWC and ATO water and the refrigerator. Thus, I don't have an actual shelf in the cabinet and will likely make one or maybe ask IM for an additional one. I would like a control panel, but I don't know how to make one, so will likely throw everything in there haphazard for a while.




OP
OP
JoJosReef

JoJosReef

10kW Club member
View Badges
Joined
Sep 27, 2021
Messages
11,791
Reaction score
40,425
Location
Orange County, CA
Rating - 0%
0   0   0

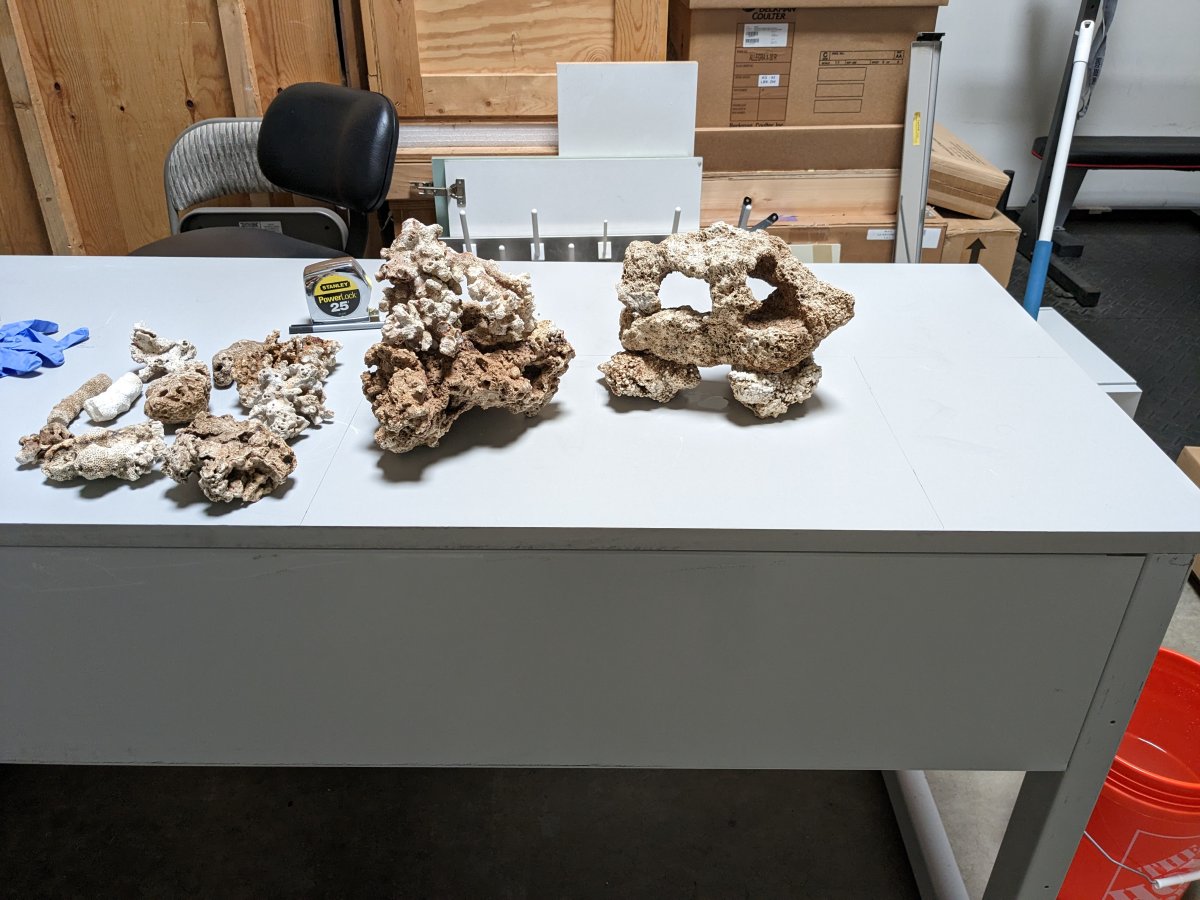

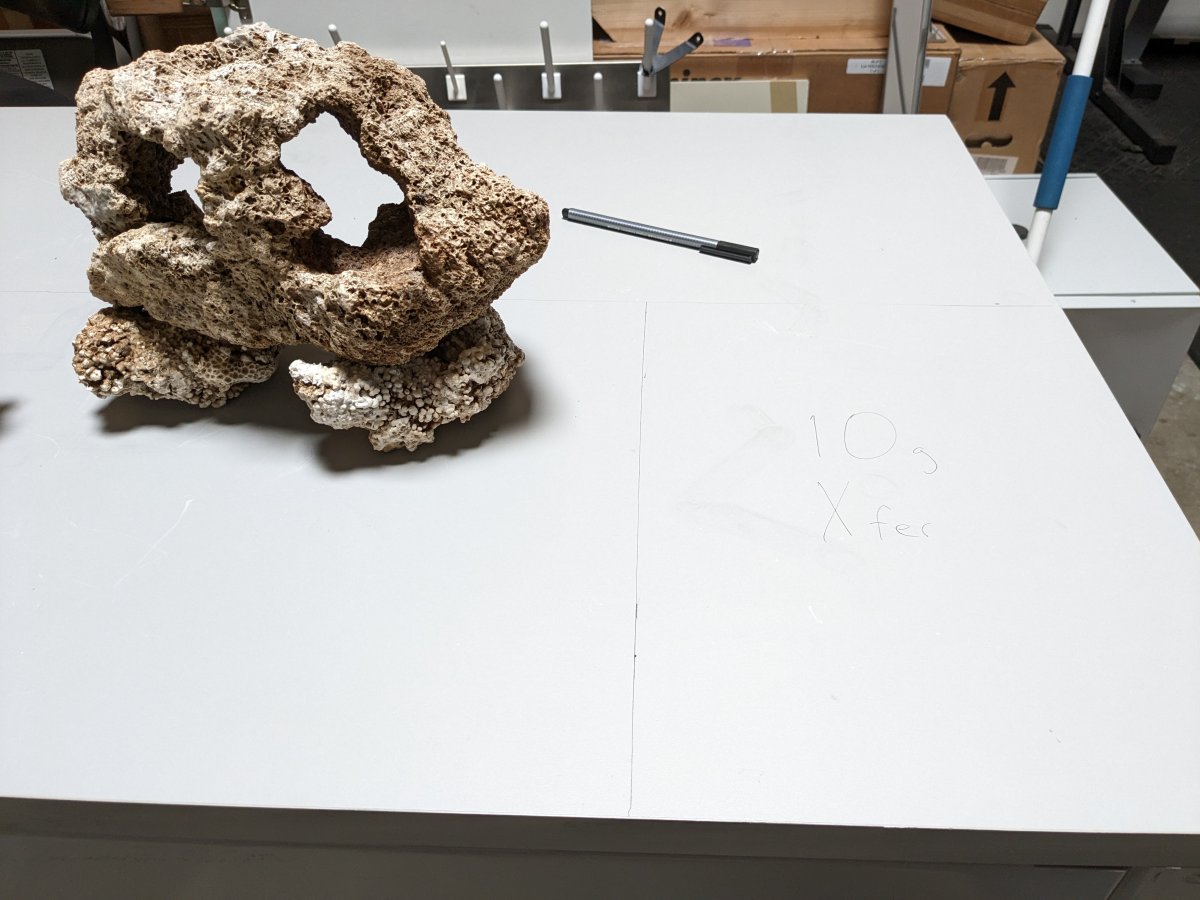

Finally have some finalist designs for the aquascape! I'm going with a broken pattern of rock mounds with space for islands. Hoping to attract the BTAs to one side of the tank and keep corals on the other 2/3rds.

Left and center rock mounds. ~1 inch sand bed will be around it.


Space in the 35"x15" display for the current 10g transfer (once I get the bubble algae under control!)


Close up on the left and center rocks. Nice swim-through space above and cave space below.

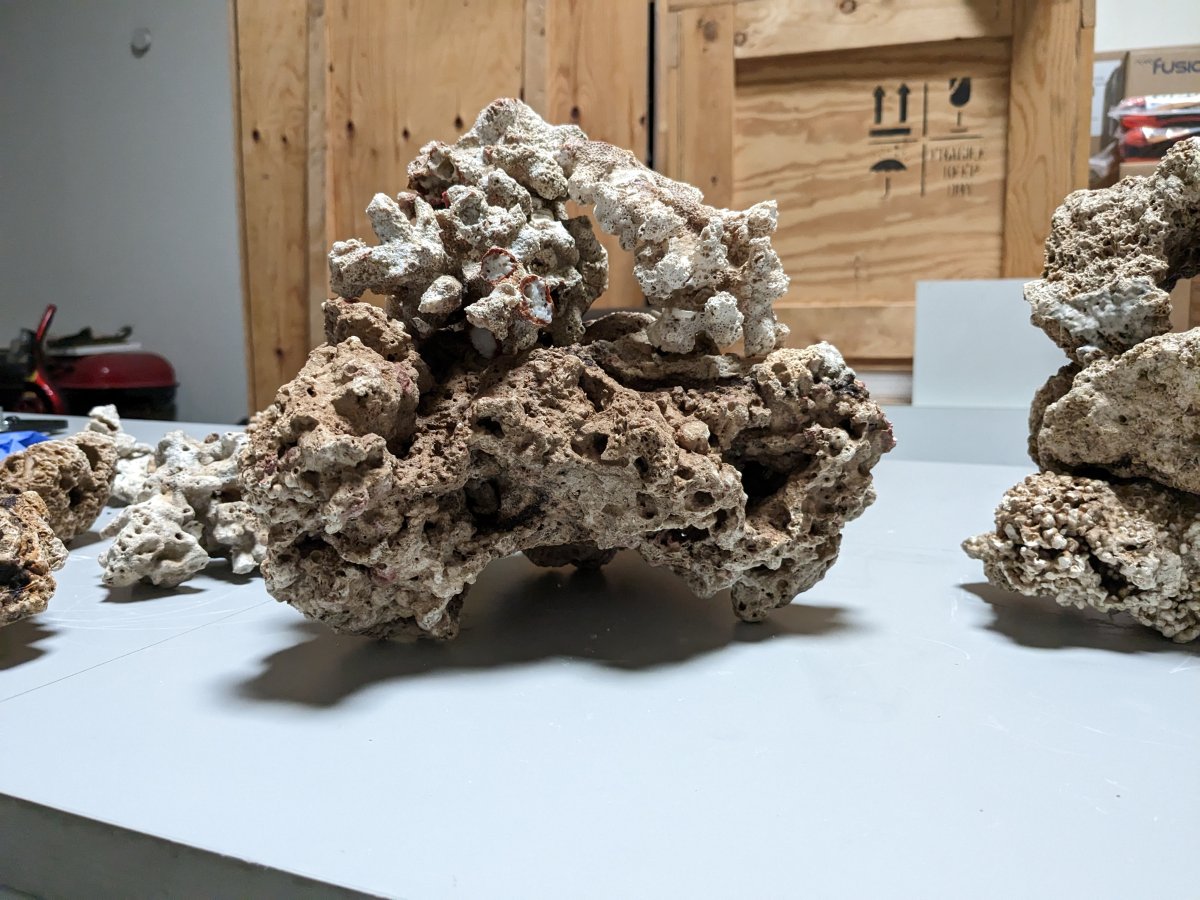

Close-up on the left rock mound.


Left corner view. Trying to keep about hand width space between rocks and glass. The left side has a more sheer drop-off instead of slope. That side will be the least viewed side.


Top view with a few potential islands.


Top view with a few other potential islands and a few broken branches (maybe line with zoas?):

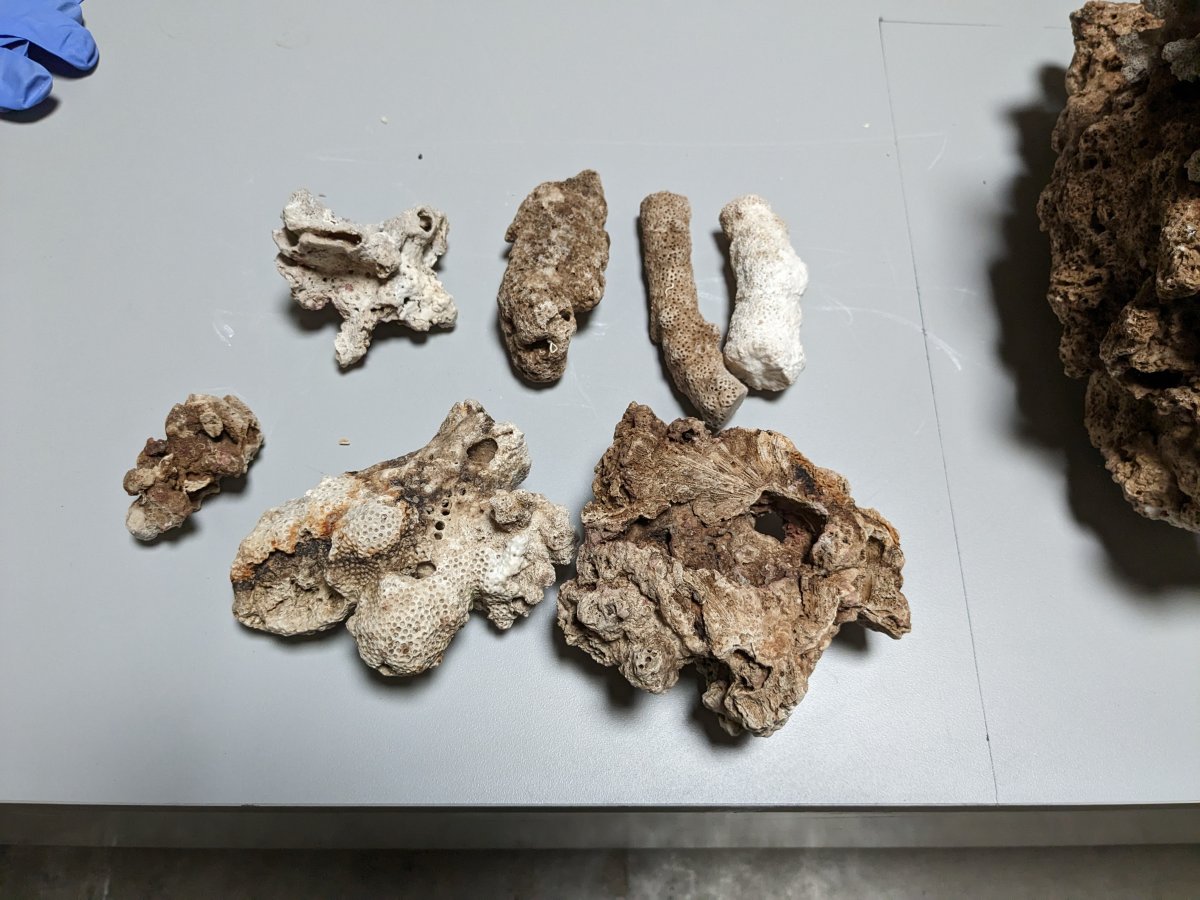

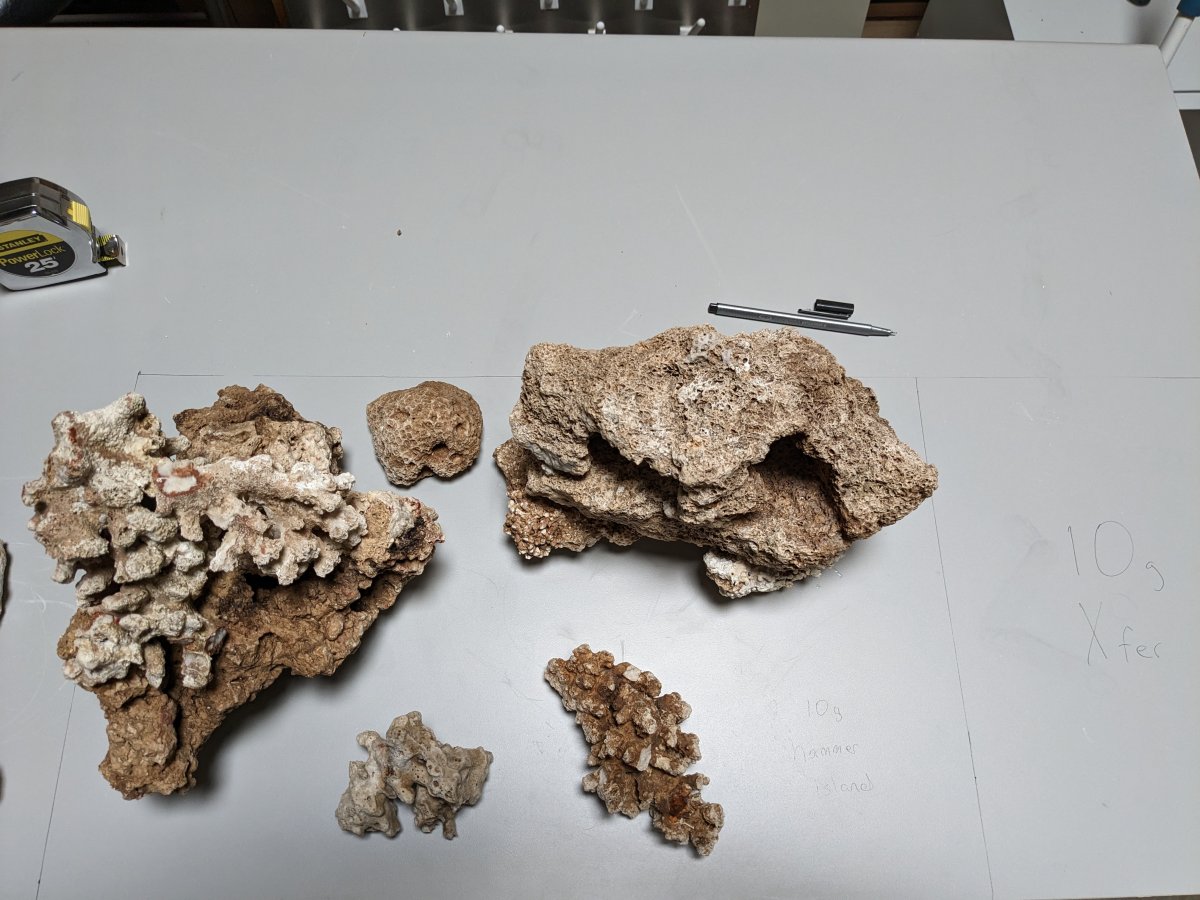

Some of the extra pieces I have to work with for making islands:


Tomorrow will start cementing pieces together with the coral reef putty!

OP
OP
JoJosReef

JoJosReef

10kW Club member
View Badges
Joined
Sep 27, 2021
Messages
11,791
Reaction score
40,425
Location
Orange County, CA
Rating - 0%
0   0   0
Love the aquascape design!!
Thanks! Hoping to make a blenny/goby (incl. firefish) paradise--the clowns will have 4 return nozzles to choose from as their "host", so they'll figure themselves out.


On1

New Member
View Badges
Joined
Apr 26, 2022
Messages
9
Reaction score
37
Location
USA
Rating - 0%
0   0   0
Getting some more corals/nems ready for the big tank! This is a new nem sitting in a cup in my Evo. So now I have a black widow in my IM 10g (in a cup) and this "whatever-it's-pretty" nem in my Evo:


Running out of space in these nanos fast!!

Setup starts next week when I get the steel pan to go under the APS stand:

My friend, excellent documentation for your tank. You must write technical manuals for a living.
I'm going to be copying you all the way.

OP
OP
JoJosReef

JoJosReef

10kW Club member
View Badges
Joined
Sep 27, 2021
Messages
11,791
Reaction score
40,425
Location
Orange County, CA
Rating - 0%
0   0   0
My friend, excellent documentation for your tank. You must write technical manuals for a living.
I'm going to be copying you all the way.
Haha, thank you! I do a lot of grant writing, so maybe that feeds into this. And, I am determined to track progress more on this tank than I did with my nanos (which have a ton of photos and side-posts, but poor build thread updates).

I am currently working on a plan for a super simple "control rack" for the various devices: ATO controller, Heater controller, Pump controllers, etc, plus bricks. Thinking of using a pull-out wire rack with zip ties to keep everything down, as I don't plan to mess with them much and the wire rack might keep things cool.


SnaI1993!

New Member
View Badges
Joined
Feb 12, 2023
Messages
8
Reaction score
25
Location
Toronto, Ontaro
Rating - 0%
0   0   0
Hello,

Loving the content so far, I think your initial stocking plan is missing one or two more tangs if I am being honest though.

I am currently starting a build with the same tank as you and trying to keep some costs down by using existing equipment, unfortunately IM doesn't ship to Canada directly so the pricing on their tanks are pretty steep and especially if you factor in the APS stand. Local resellers here tend to sell the glass and stand separate making about a 300-400$ difference in price!

I am wondering if you've managed to get water into the tank yet or are you still working out rockwork?

Would love to hear feedback about your cycle stage and the flow you get from your mightyjet/gyre.

What kind of bed depth are you planning on going for/what kind of sand, do you plan do build your rockwork on-top of egg crate so future goby's don't F*&k stuff up?

Good luck regardless of your plans and hope to see more from you!

OP
OP
JoJosReef

JoJosReef

10kW Club member
View Badges
Joined
Sep 27, 2021
Messages
11,791
Reaction score
40,425
Location
Orange County, CA
Rating - 0%
0   0   0
Hello,

Loving the content so far, I think your initial stocking plan is missing one or two more tangs if I am being honest though.

I am currently starting a build with the same tank as you and trying to keep some costs down by using existing equipment, unfortunately IM doesn't ship to Canada directly so the pricing on their tanks are pretty steep and especially if you factor in the APS stand. Local resellers here tend to sell the glass and stand separate making about a 300-400$ difference in price!

I am wondering if you've managed to get water into the tank yet or are you still working out rockwork?

Would love to hear feedback about your cycle stage and the flow you get from your mightyjet/gyre.

What kind of bed depth are you planning on going for/what kind of sand, do you plan do build your rockwork on-top of egg crate so future goby's don't F*&k stuff up?

Good luck regardless of your plans and hope to see more from you!

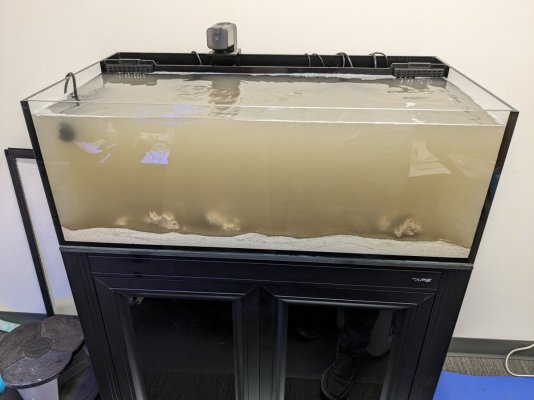

Getting wet this week! Last week was in Grand Cayman islands for family vacation and snorkeling.

Will give details on the cycle. Plan is to throw in a bunch of gulf rock rubble that's sitting in my nano AIO "sumps" to seed, add a small bottle of Fritz Turbo Start, and add Fiji Mud to the sand (I'll actually just dirty up all the water with it so any living microfauna gets into the rocks as well). I'm expecting a mini-cycle from this, but not too much. Pods going in on Thursday, so I'll be dumping some dead phyto in to help them populate. Diatoms should come soon thereafter, but by then I'll be adding my CUC (2x conches are going to love it the diatoms).

RE: sand, you'll see from my rocks that they are all raised up a bit from the glass due to multiple points touching the glass, so the sand will only come up about 1-1.5", leaving some natural caves and area to excavate. There will also be a few sizeable islands that the pistol/goby can perhaps use. We'll just have to see!

OP
OP
JoJosReef

JoJosReef

10kW Club member
View Badges
Joined
Sep 27, 2021
Messages
11,791
Reaction score
40,425
Location
Orange County, CA
Rating - 0%
0   0   0

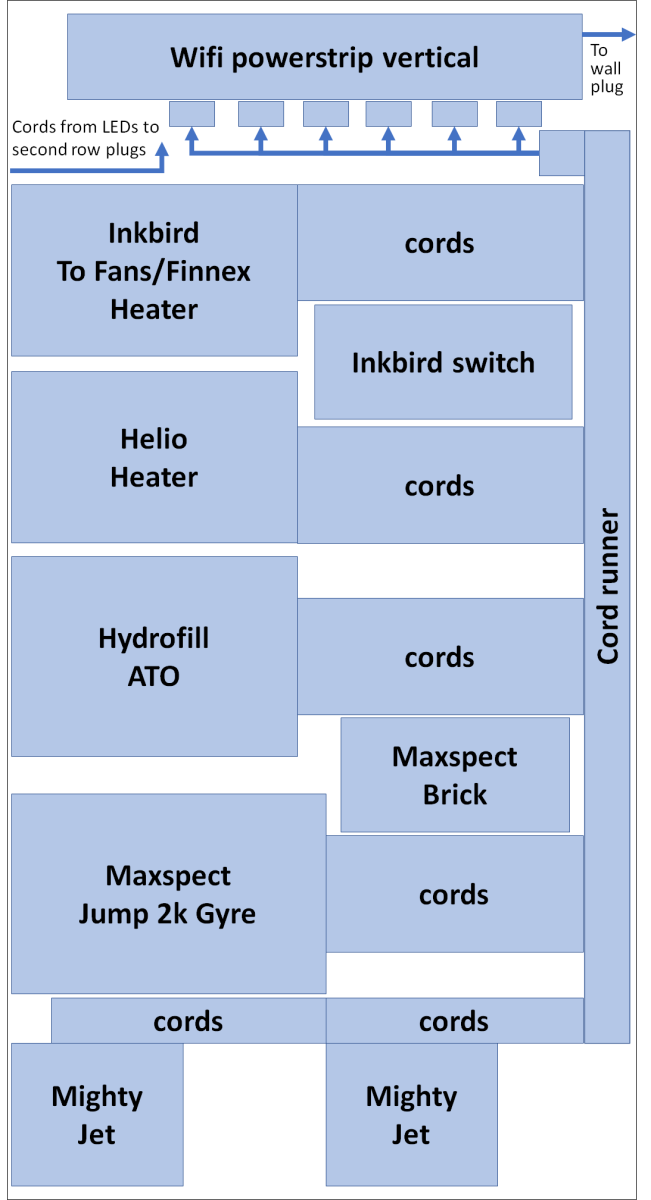

Planning out the "Control Board", haha. I'm not dumping a ton of money into a piece of plywood or plastic with pre-cut holes, so I'm making it work best I can. Here's the idea:




Device controllers and bricks get zip tied to this pull-out basket that will be screwed to the upper shelf. Here's the design so far, to relative scale.



Will use the MightyJets the most, so they'll be in the front, followed by the Gyre. The LED cords/bricks will just come in from the side and be attached to something else on the shelf. Here's hoping it works!
